Bosch GSS 140 A

Bosch GSS 140 A orbital sander: exploded parts diagram, 1 sheet, 53 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 140 A: 53 positions on 1 sheet

Bosch GSS 140 A parts list (1 sheet)

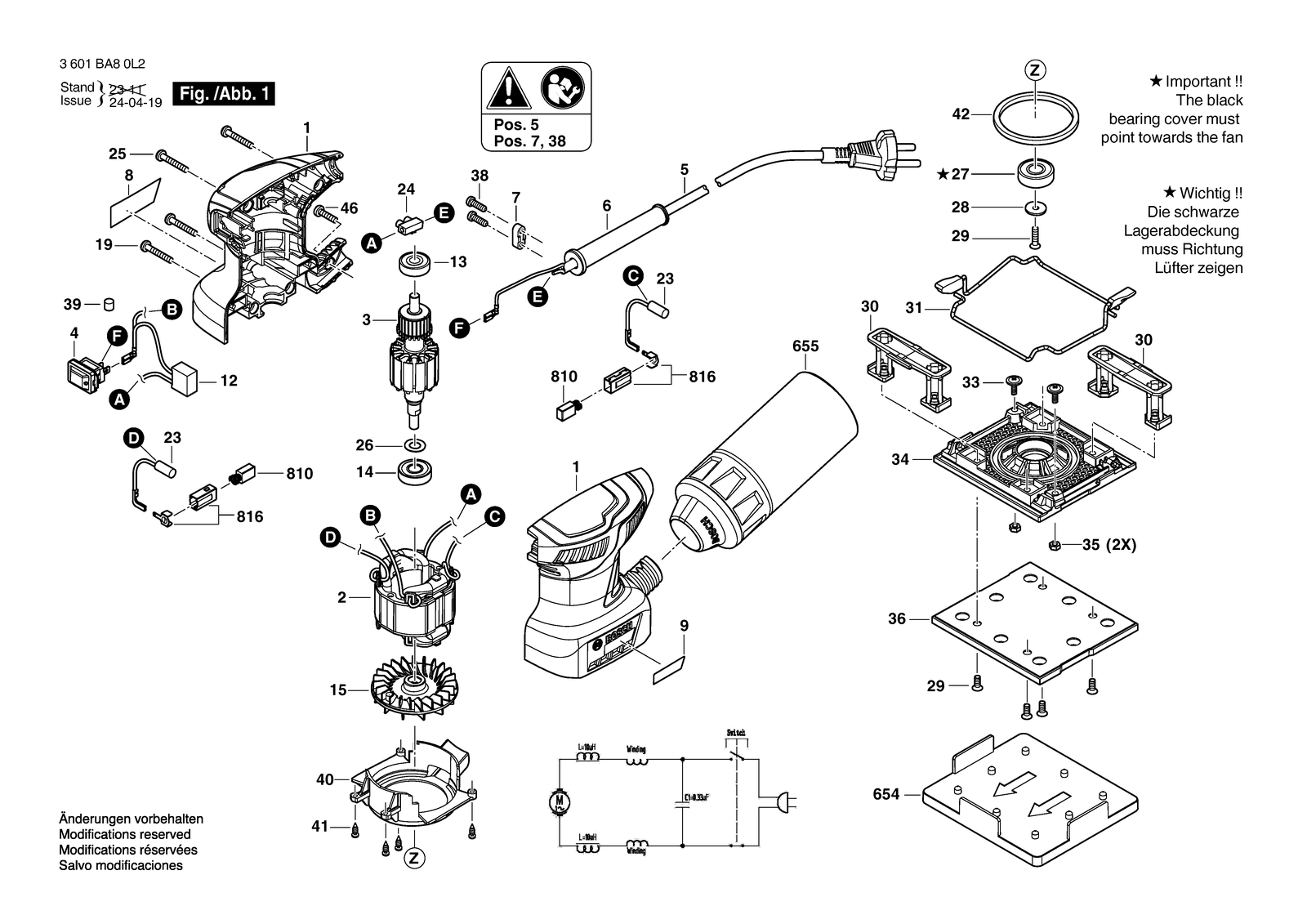

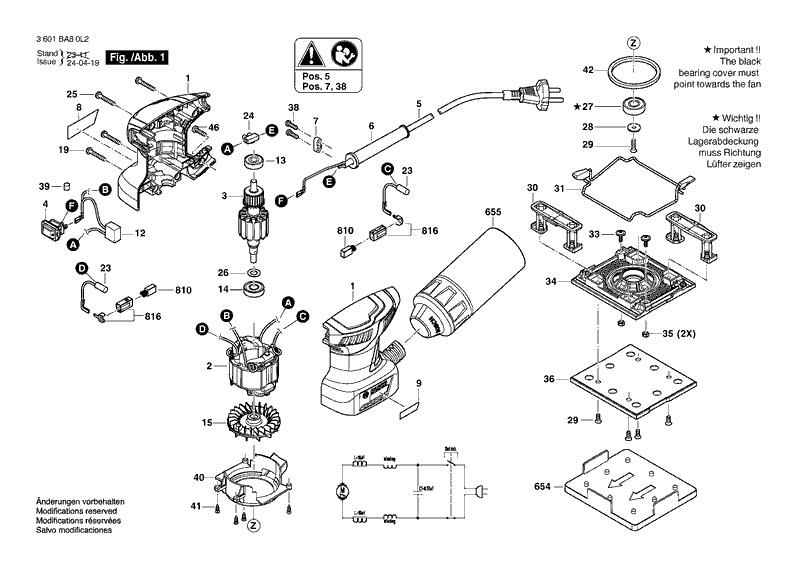

Bosch GSS 140 A parts diagram, sheet 1
No.Part numberPart name
11619PC1344Motor Housing
121619PC0435Capacitor
131619PC0436Ball Bearing
141619PC0437Ball Bearing
151619PC1346Fan
191619PC0440Screw
21619PC0426Field 220-240V
21619PC1334Field 127V
231619PC0442Inductor
241619PC0443Blade terminal
251619PC0444Screw
261619PC0445Washer
271619PC2057Ball Bearing
281619PC0447Washer
291619PC2796Screw
31619PC0427Armature 220-240V
31619PC1335Armature 127V
301619PC0449Bracket
311619PC0450Clamp
331619PC0452Screw
341619PC1197Base Plate
351619PC0454Nut
361619PC1198Pad
361619PC1349Pad
381619PC0457Screw
391619PC0458Pin
41619PC0428Switch
401619PC1201Fan Cover
411619PC1342Screw
421619PC1355Sealing washer
461619PC1343Screw
51619PC1312Power supply cord Mal
51619PC1313Power supply cord Asi
51619PC1315Power supply cord Br
51619PC1316Power supply cord Mex
51619PC1317Power supply cord Ar
51619PC1352Power supply cord Cn
61619PC0430Grommet
6541619PC1202Pocket puncher
6551619PC0243Dust container
6551619PC1337Dust container
71619PC0431Cable Clip
81619PC1327Nameplate
81619PC1328Nameplate
81619PC1329Nameplate
81619PC1330Nameplate
81619PC1331Nameplate
81619PC1332Nameplate
81619PC1333Nameplate
81619PC1351Nameplate
8101619PC1319Carbon Brush
8161619PC1348Brush Holder
91619PC1336Manufacturer's nameplate
