Bosch GSS 140

Bosch GSS 140 orbital sander: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 140: 31 positions on 1 sheet

Bosch GSS 140 parts list (1 sheet)

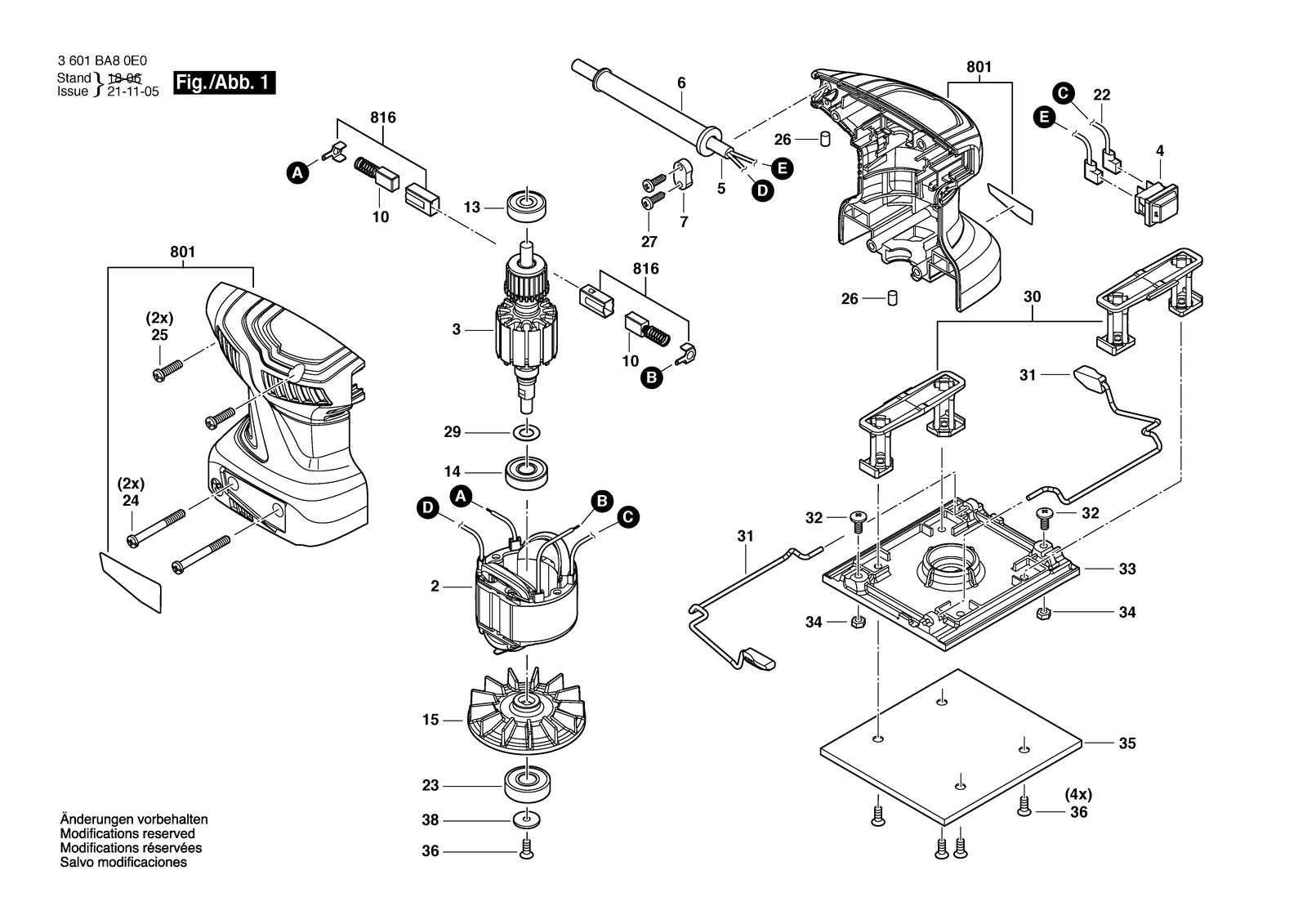

Bosch GSS 140 parts diagram, sheet 1
No.Part numberPart name
10160432117DCarbon Brush
139618089547Groove ball bearing
141610905005Groove ball bearing 9X24X7
151607000CX3Fan
21604220577Field
21604220579Field
222609120579Cable
231900905173Groove ball bearing 6000-2RS DIN 625
24F000616012Cross Recessed-Head Screw
259618087099Screw 4X16 MM
262610350103Pin
271613490027Torx Oval-Head Screw 3,5X16
291600101653Plain Washer Thick 0,5 MM
31604010B9NArmature
31604010B9SArmature
301600A014L1Bracket
311600A014L2Clamp
32160343005UScrew
331600A014L3Base plate
341609902684Hex Nut
351600A014L4Pad
362610915161Screw
381609B00662Washer
4160720035PSwitch
5160446076JPower supply cord
5160446076UPower supply cord
5160446076VPower supply cord
61600703040Grommet
72615650007Cable Clip
8011607000CX2Motor Housing
81616070312E0Brush Holder
