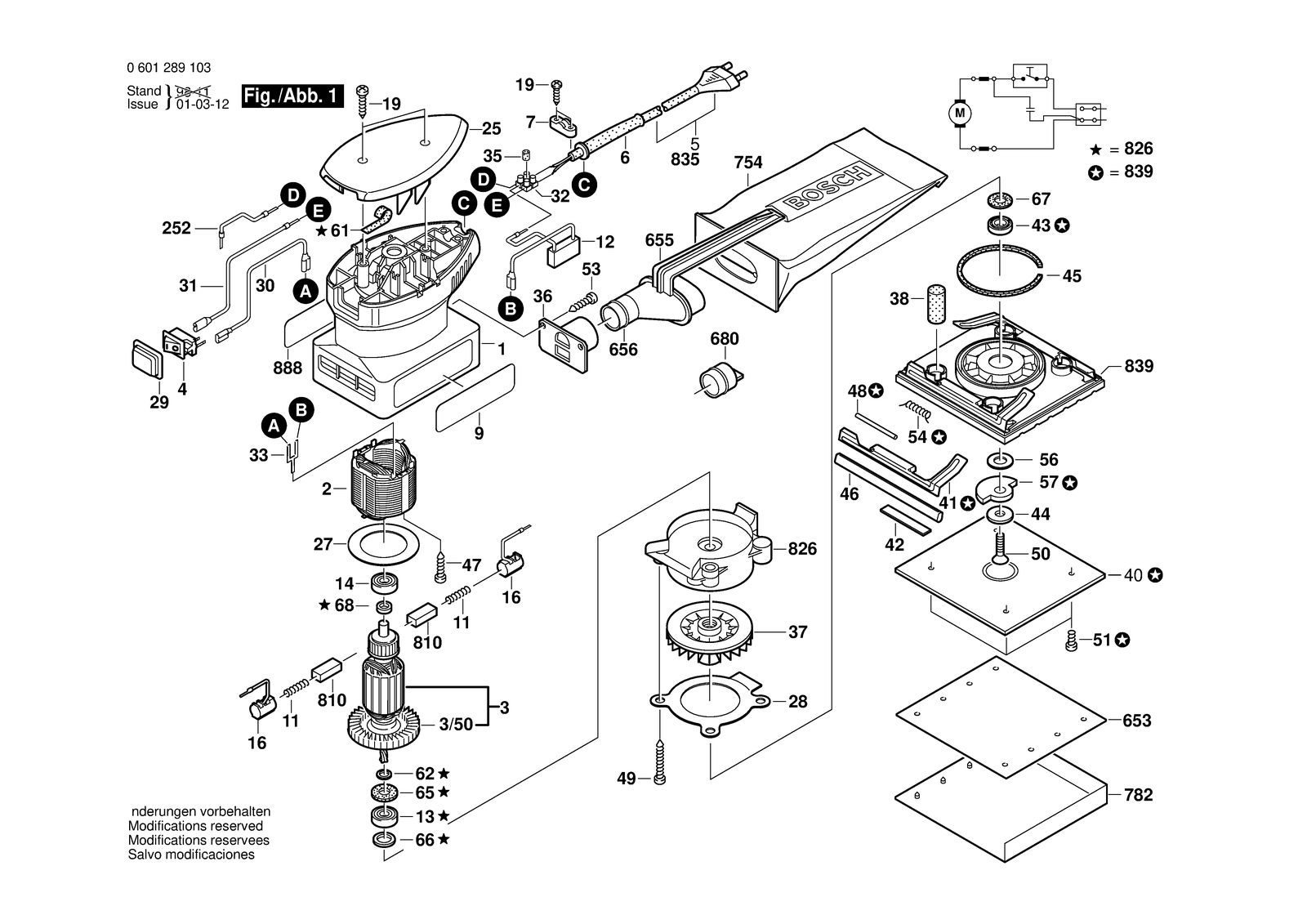

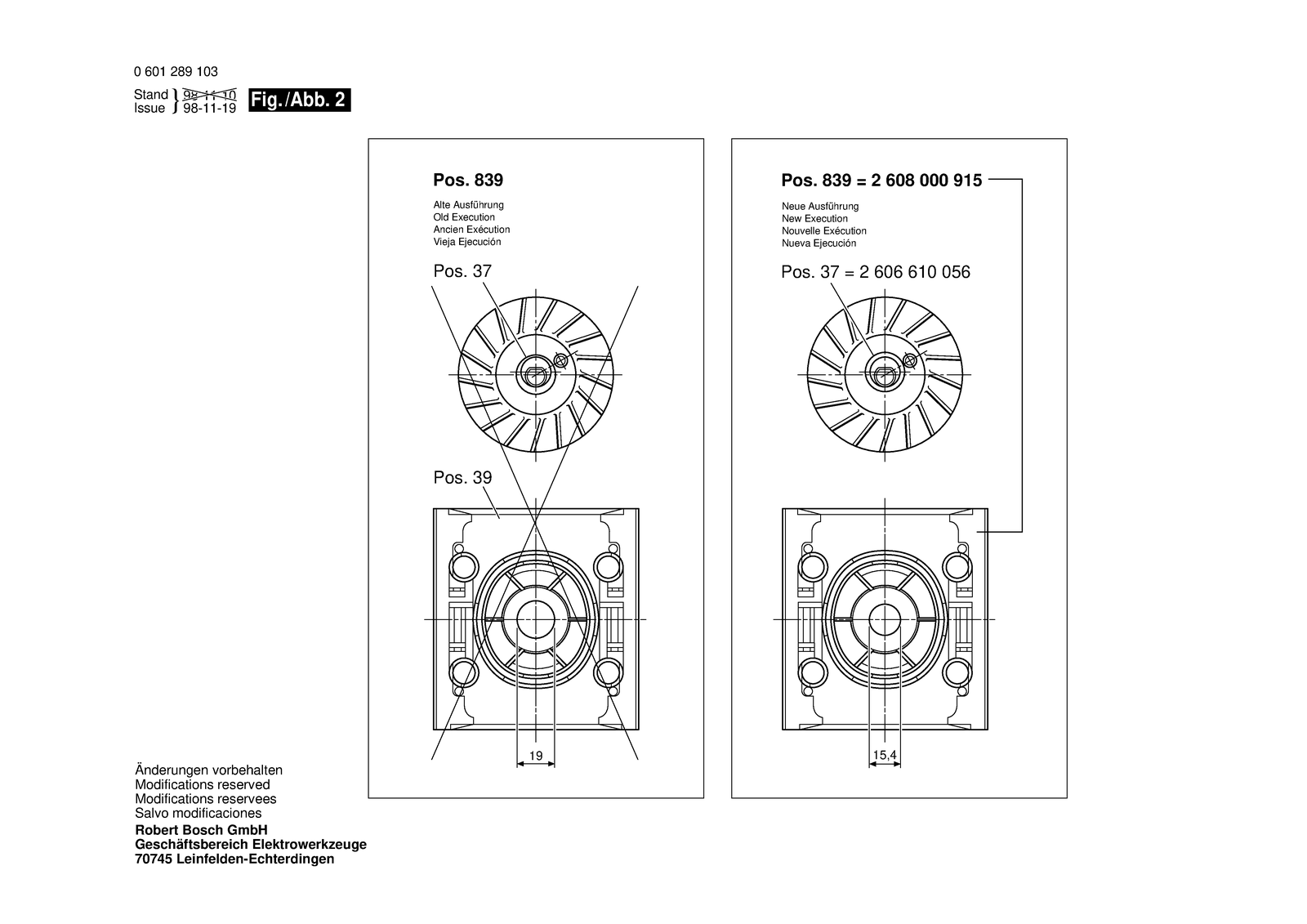

Bosch GSS 14 orbital sander: exploded parts diagram, 2 sheets, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSS 14: 77 positions on 2 sheets
Bosch GSS 14 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605108047 | Motor Housing Blue |
| 11 | 2604610026 | Compression Spring |
| 12 | 2607329131 | Suppression Capacitor |
| 13 | 1900905044 | Groove ball bearing 7X19X6 |
| 14 | 1900905048 | Groove ball bearing |
| 16 | 2604449027 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220450 | Field 100V |
| 2 | 2604220451 | Field 110-115V |
| 2 | 2604220507 | Field 230-240V |
| 25 | 2605500094 | Housing Cover Blue |
| 252 | 2604448159 | Connecting Cable |
| 27 | 2600034000 | Guide-Plate |
| 28 | 2600034001 | Sheet metal cover |
| 29 | 2605510033 | Protective Cap |
| 3 | 2604010717 | Armature 100V |
| 3 | 2604010719 | Armature 230-240V |
| 3 | 2604010867 | Armature 110-115V |
| 3/50 | 2606610055 | Fan |
| 30 | 2604448104 | Connecting Cable White L=63 MM |
| 31 | 2604448105 | Connecting Cable White L=110MM |
| 32 | 1901091101 | Socket-Terminal Strip 2-POLE |
| 33 | 2604477002 | Blade terminal |
| 35 | 2603100049 | Rubber Buffer |
| 36 | 2605702007 | Fitting Black |
| 37 | 2606610056 | Fan |
| 38 | 1603101018 | Round Rubber Ø 11,3X23,5 MM |
| 39 | 2608000054 | Base Plate |
| 4 | 2607200215 | On-Off Switch |
| 40 | 2608000056 | Sander Plate |
| 41 | 2601923005 | Tensioning Lever |
| 42 | 2601007021 | Clamping Strip |
| 43 | 2600905045 | Groove ball bearing 12X28X8 |
| 44 | 2600103002 | Plain Washer |
| 45 | 2601005013 | Felt Strip |
| 46 | 2601099030 | Pressure Bar |
| 47 | 2603435086 | Tapping Screw |
| 48 | 2603101036 | Straight Pin |
| 49 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 5 | 2604460138 | Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460141 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460255 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 50 | 2910871122 | Countersunk-Head Screw DIN 965-M4X12-8.8 |
| 51 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 53 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 54 | 2604651006 | Coiled Spring |
| 56 | 2600100044 | Plain Washer |
| 57 | 2608012006 | Counterweight |
| 6 | 2600703006 | Grommet Ø9,5 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 61 | 2600005010 | Adhesive Tape |
| 62 | 2600100094 | Intermediate Ring |
| 65 | 2600108013 | Felt Washer |
| 655 | 2605702031 | Fitting |
| 656 | 1610210075 | O-Ring 20,0X1,5 MM |
| 66 | 2600108012 | Felt Washer |
| 67 | 2600101025 | Felt Washer |
| 68 | 2600005006 | Felt Washer |
| 680 | 2603126012 | Plug |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 754 | 2605411067 | Dust Bag 3 Piece |
| 754 | 2605411068 | Dust Bag 10 Piece |
| 782 | 2608190018 | Punching Tool |
| 810 | 2604321905 | Carbon-Brush Set |
| 810 | 2604321917 | Carbon-Brush Set |
| 826 | 2605703901 | Bearing Flange |
| 835 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 839 | 2608000915 | Swing-Plate |
| 888 | 2601110704 | Sticker |
| 888 | 2601117836 | Marking Plate |
| 888 | 2601118036 | Nameplate |
| 888 | 2601118286 | Nameplate |
| 888 | 2601118300 | Nameplate |
| 9 | 2601118445 | Manufacturer's nameplate Sunny Side |
| 9 | 2601118592 | Manufacturer's nameplate Sunny Side |
