Bosch GSR18V-535FC

Bosch GSR18V-535FC cordless drill driver: exploded parts diagram, 2 sheets, 30 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR18V-535FC: 30 positions on 2 sheets

Bosch GSR18V-535FC parts list (2 sheets)

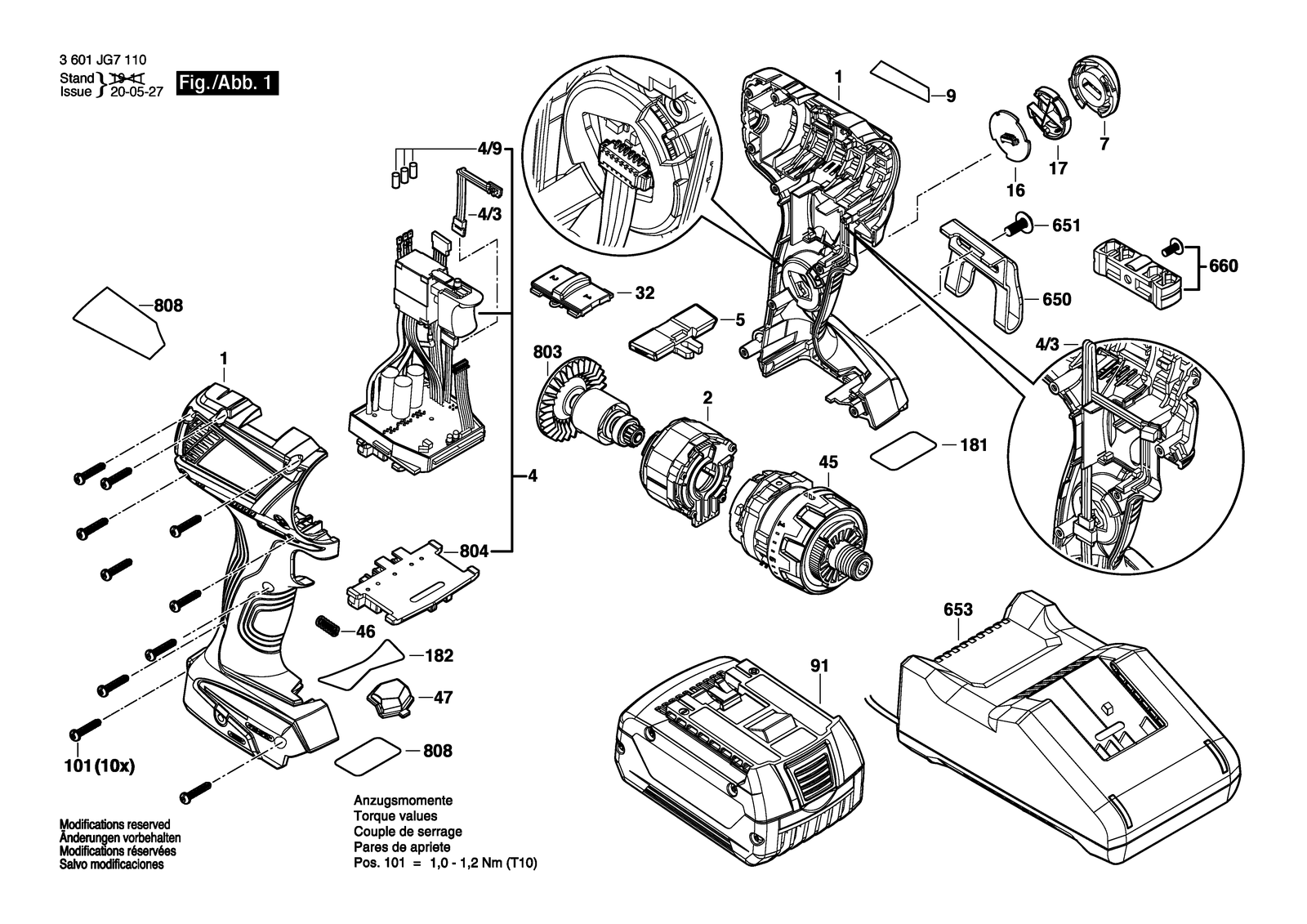

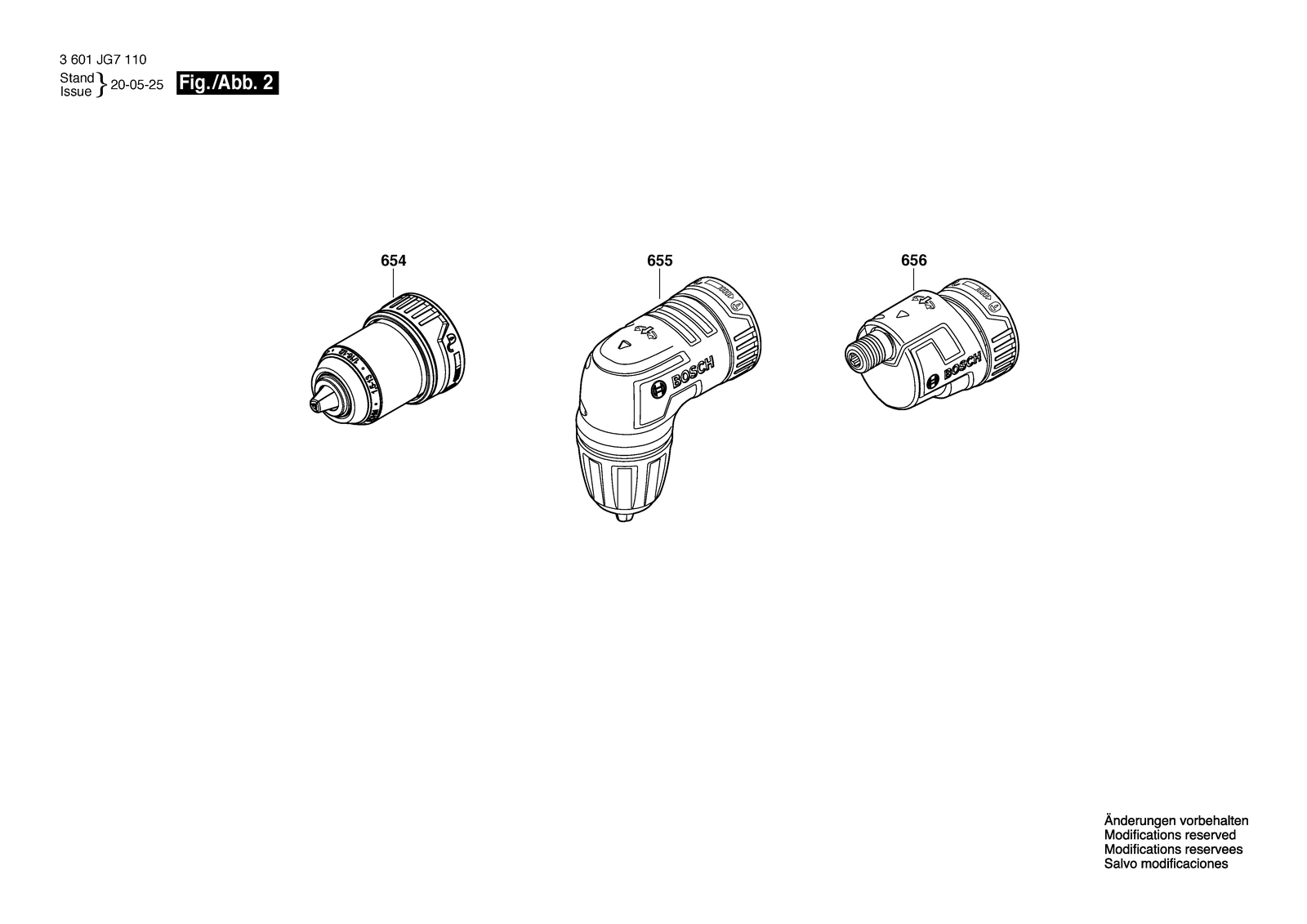

Bosch GSR18V-535FC parts diagram, sheet 1Bosch GSR18V-535FC parts diagram, sheet 2
No.Part numberPart name
11600A00H64Housing
1012609110353Torx Oval-Head Screw
161607503333Printed-Board Assembly
171600A00M53Cover Panel
1812609134293Warning Label
1822610045280Warning Plate
21619P13836Stator
322609199812Switchover Unit
416072335EYElectronics Module
4/31607503369Printed-Board Assembly
4/9160071203JShrinkable Tube
451600A00J5SGear Box
461609280477Compression Spring
472609101490Lens
52609101484Adjusting lever
6502609111584Clip
6512609110834Screw
6532607226257Fast Charger Usa GAL 18V-40 120V/ 4A/ 10.8-18V
6541600A00ZS9Chuck attachment
6552609199635Right-angle attachment
6562609199636Eccentric attachment
6602609199748Bit holder
71600A00RU8Cover unit
8032609199894DC motor 18V
8041609280820Contact retainer 18V
808160111A6HKNameplate
9160111C2BXManufacturer's nameplate
911607A350APBattery Pack Usa GBA18V40 18V 4.0AH Procore Scm
911607A350BMBattery Pack BAT612 18V 2.0AH LI Scm
911607A350MBBattery Pack
