Bosch GSR Mx2Drive cordless screw driver: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR Mx2Drive: 21 positions on 1 sheet

Bosch GSR Mx2Drive parts list (1 sheet)

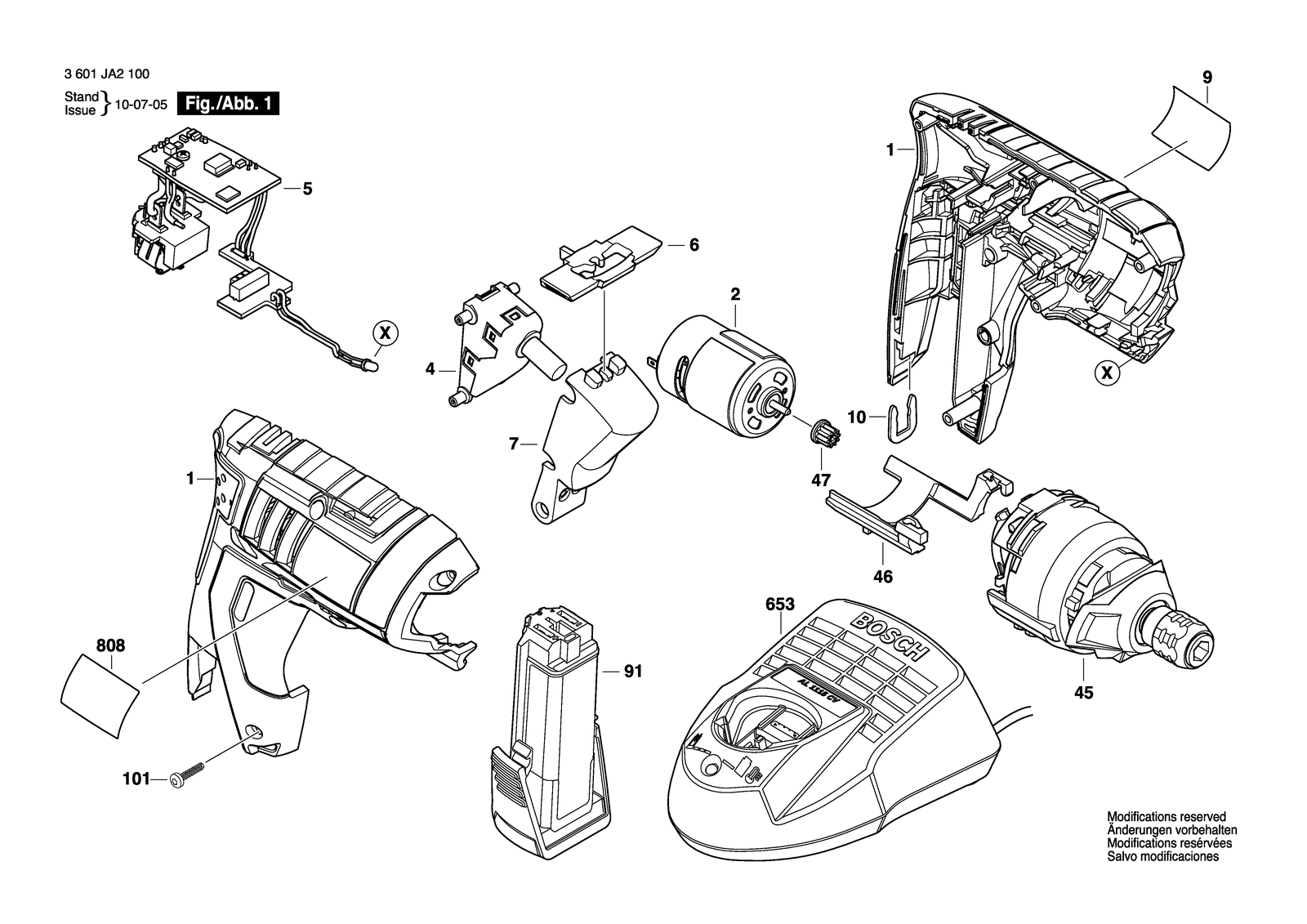

Bosch GSR Mx2Drive parts diagram, sheet 1
No.Part numberPart name
12609100855Housing
102609110838Clip
1012603415206Torx Oval-Head Screw
21607022604DC motor 3,6V
42607202084Signal Transmitter
452609199282Gear Box
462609100854Linkage
472609111017Drive pinion
51607233410Electronics Module
62609100852Button
6532607225515Fast Charger Gb AL 1115 CV 230/3,6-12V, 1H
6532607225527Fast Charger BR 220/3,6-10,8V, 1H
6532607225531Fast Charger BR 127/3,6-10,8V, 1H
6532607226187Fast Charger EU GAL 12V-20 230/3,6-12V 2A
6532607226195Fast Charger GAL 12V-20 MEX 115V / 3.6V – 12V / 2A
6532607226205Fast Charger GAL 12V-20 ARG 115V / 3.6V – 12V / 2A
72609100853Trigger
8081600A00Z20Nameplate
8082609132883Nameplate
92609132831Manufacturer's nameplate Gsr MX2DRIVE
911607A35063Battery Pack
