Bosch GSR 9,6 VE-2

Bosch GSR 9,6 VE-2 cordless screw driver: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 9,6 VE-2: 33 positions on 1 sheet

Bosch GSR 9,6 VE-2 parts list (1 sheet)

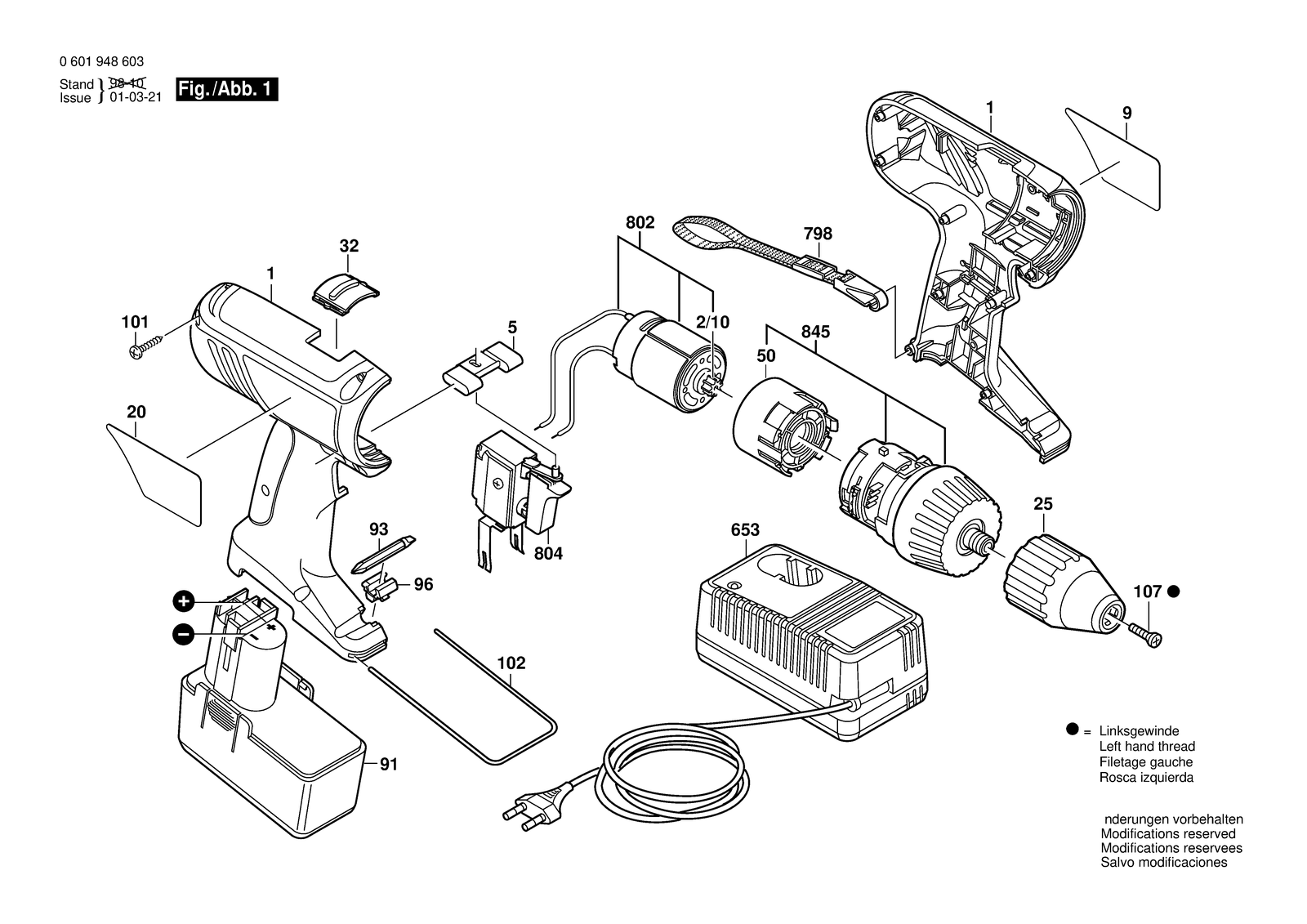

Bosch GSR 9,6 VE-2 parts diagram, sheet 1
No.Part numberPart name
12605104652Housing Section Blue
1012603490018Torx Oval-Head Screw 3X18
1022601329041Retaining Bracket
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
2/102606316182Pinion
202601117434Reference Plate Shadow Side
202601119747Reference Plate Shadow Side
252608572164Keyless Chuck
322601099086Adjusting Slide Black
52601099085Adjusting Slide Red
502605719027Intermediate Flange
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224431Fast Charger USA 120/7,2-24V, 1H
6532607224435Fast Charger J 100/7,2-24V, 1H
6532607224437Fast Charger ROK 220/7,2-24V, 1H
6532607224443Fast Charger AUS 240/7,2-14,4V, 1H
6532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
6532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
6532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
6532607224707Fast Charger USA 120/7,2-14,4V, 30 Min.
6532607224711Fast Charger J 100/7,2-14,4V, 30 Min.
6532607224713Fast Charger ROK 220/7,2-14,4V, 30 Min.
7982601398009Carrying Loop
8022607022969DC motor 9,6V
8042607200421On-Off Switch
8452606200908Planetary Gear Train
92601119746Manufacturer's nameplate Sunny Side
92601119875Manufacturer's nameplate Sunny Side
912607335149Slide-In Accu Package 9,6V,2,0AH,NICD
912607335229Slide-In Accu Package 9,6V, 2,6AH,CS,NIMH
932608521018Screwdriver Blade
962608040131Support
