Bosch GSR 9,6 V

Bosch GSR 9,6 V batt-oper screwdriver: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 9,6 V: 29 positions on 1 sheet

Bosch GSR 9,6 V parts list (1 sheet)

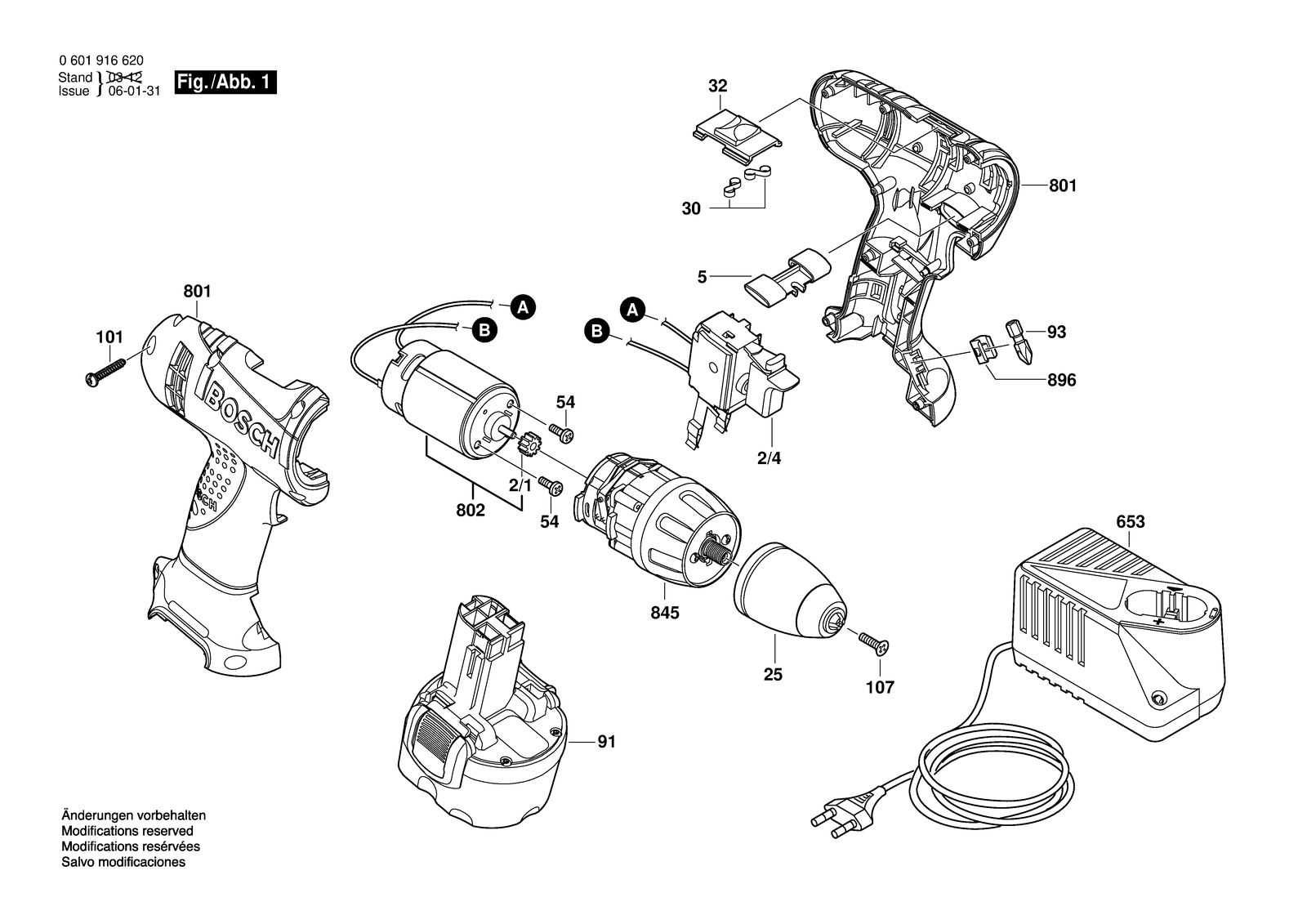

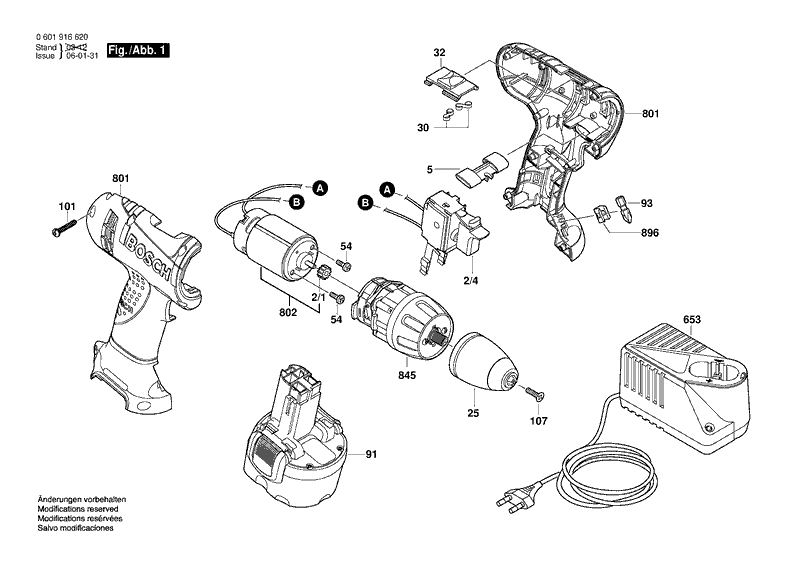

Bosch GSR 9,6 V parts diagram, sheet 1
No.Part numberPart name
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072609110721Countersunk-Head Screw M5X20
2/12606316161Pinion Z=12
2/42607200461On-Off Switch
252608572214Keyless Chuck
302604690022Leaf Spring
322601099115Adjusting Slide Red
52601099114Adjusting Slide Red
542603414048Torx SH cap screw M3X5-8.8-Z
6532607224397Fast Charger USA 120/7,2-14,4V, 1H
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224435Fast Charger J 100/7,2-24V, 1H
6532607224437Fast Charger ROK 220/7,2-24V, 1H
6532607224443Fast Charger AUS 240/7,2-14,4V, 1H
6532607224493Fast Charger J 100/7,2-24V, 15 Min.
6532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
6532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
6532607224727Fast Charger CN 220/7,2-14,4V, 1H
8012605105926Housing Section
8012605105950Housing Section
8022607022867DC motor 9,6V
8452606200938Planetary Gear Train
8452606200943Planetary Gear Train
8962604690026Spring Element
912607335271Slide-In Accu Package 9,6V, 1,2AH, Nicd
912607335707Slide-In Accu Package 9,6V,1,5AH, Nicd
932607000366Screwdriver Bit
