Bosch GSR 9,6 V

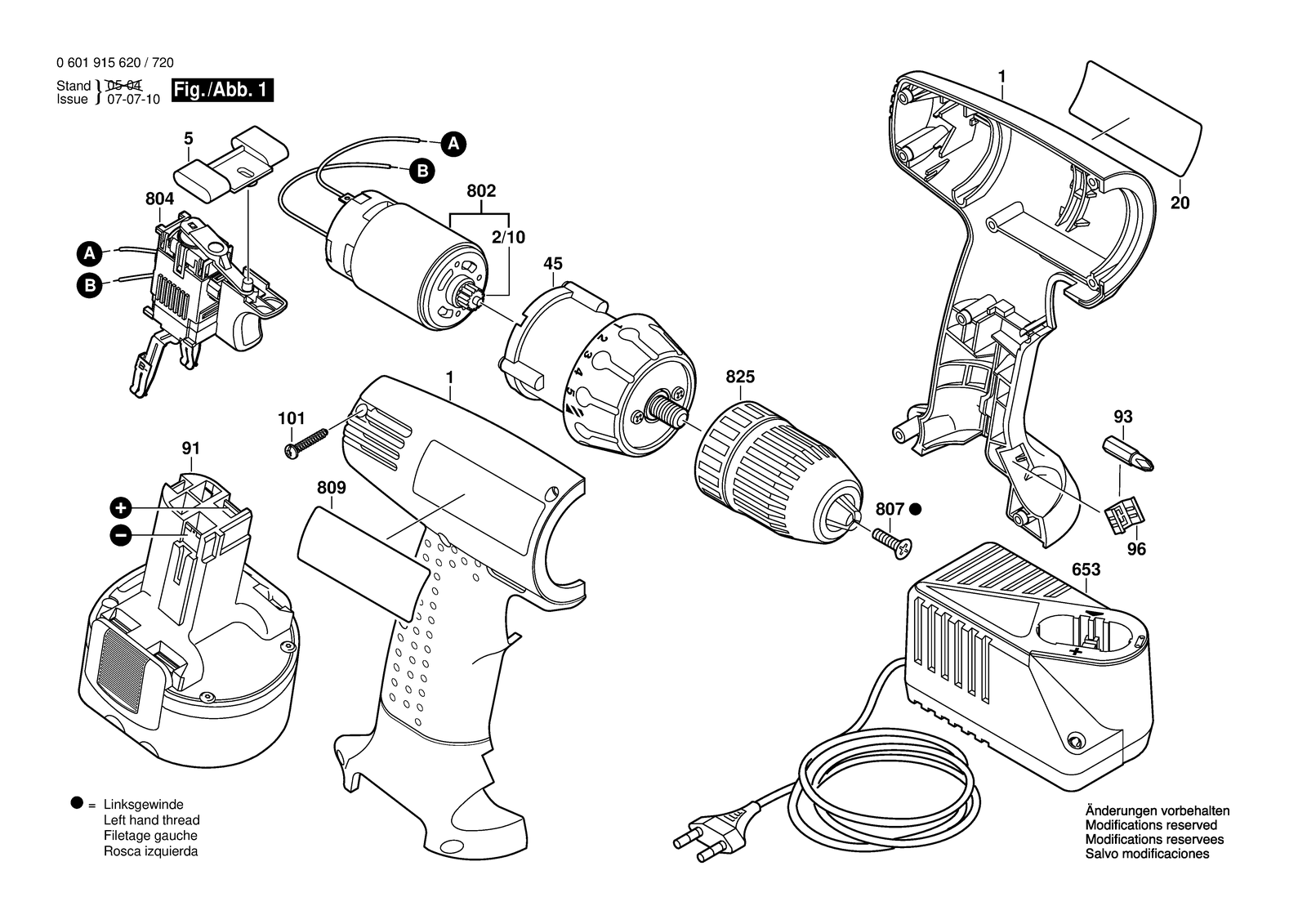

Bosch GSR 9,6 V cordless drill driver: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 9,6 V: 47 positions on 1 sheet
Bosch GSR 9,6 V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105001 | Motor Housing |
| 1 | 2605105000 | Motor Housing |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 2/10 | 2606316229 | Pinion |
| 2/10 | 2606316229 | Pinion |
| 20 | 1619P00115 | Manufacturer's nameplate Battery Without Charger GSR 7,2-1 |
| 20 | 1619P00114 | Manufacturer's nameplate GSR 7,2-1 |
| 45 | 2606200090 | Planetary Gear Train |
| 45 | 2606200054 | Planetary Gear Train |
| 5 | 2601099055 | Adjusting Slide Red |
| 5 | 2601099055 | Adjusting Slide Red |
| 653 | 2607224393 | Fast Charger GB 230/7,2-14,4V, 1H |
| 653 | 2607224397 | Fast Charger USA 120/7,2-14,4V, 1H |
| 653 | 2607224401 | Fast Charger ROK 220/7,2-14,4V, 1H |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224687 | Fast Charger AR 230/7,2-14,4V, 1H |
| 653 | 2607224727 | Fast Charger CN 220/7,2-14,4V, 1H |
| 653 | 2607224977 | Fast Charger BR 127/7,2-14,4V, 1H |
| 653 | 2607224979 | Fast Charger BR 220/7,2-14,4V, 1H |
| 653 | 2607224393 | Fast Charger GB 230/7,2-14,4V, 1H |
| 653 | 2607224397 | Fast Charger USA 120/7,2-14,4V, 1H |
| 653 | 2607224401 | Fast Charger ROK 220/7,2-14,4V, 1H |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224687 | Fast Charger AR 230/7,2-14,4V, 1H |
| 653 | 2607224727 | Fast Charger CN 220/7,2-14,4V, 1H |
| 653 | 2607224977 | Fast Charger BR 127/7,2-14,4V, 1H |
| 653 | 2607224979 | Fast Charger BR 220/7,2-14,4V, 1H |
| 802 | 1619P00109 | DC motor 9,6V |
| 802 | 1619P00108 | DC motor 7,2V |
| 804 | 2607200463 | On-Off Switch |
| 804 | 2607200463 | On-Off Switch |
| 807 | 2609110721 | Countersunk-Head Screw M5X20 |
| 807 | 2609110721 | Countersunk-Head Screw M5X20 |
| 809 | 1619P00951 | Nameplate |
| 809 | 1619P00122 | Nameplate |
| 825 | 1619P01024 | Keyless Chuck 0,8-10 MM |
| 825 | 1619P01024 | Keyless Chuck 0,8-10 MM |
| 91 | 2607335439 | Slide-In Accu Package 9,6V,1,2AH,NICD |
| 91 | 2607335707 | Slide-In Accu Package 9,6V,1,5AH, Nicd |
| 91 | 2607335437 | Slide-In Accu Package 7,2V,1,2AH,NICD |
| 91 | 2607335587 | Slide-In Accu Package 7,2V,1,5AH,NICD |
| 91 | 2607335765 | Slide-In Accu Package 7,2V,1,5AH,NICD |
| 93 | 2607000366 | Screwdriver Bit |
| 93 | 2607000366 | Screwdriver Bit |
| 96 | 2604690030 | Bit holder |
| 96 | 2604690030 | Bit holder |
