Bosch GSR 7,2 V cordless screw driver: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 7,2 V: 26 positions on 1 sheet

Bosch GSR 7,2 V parts list (1 sheet)

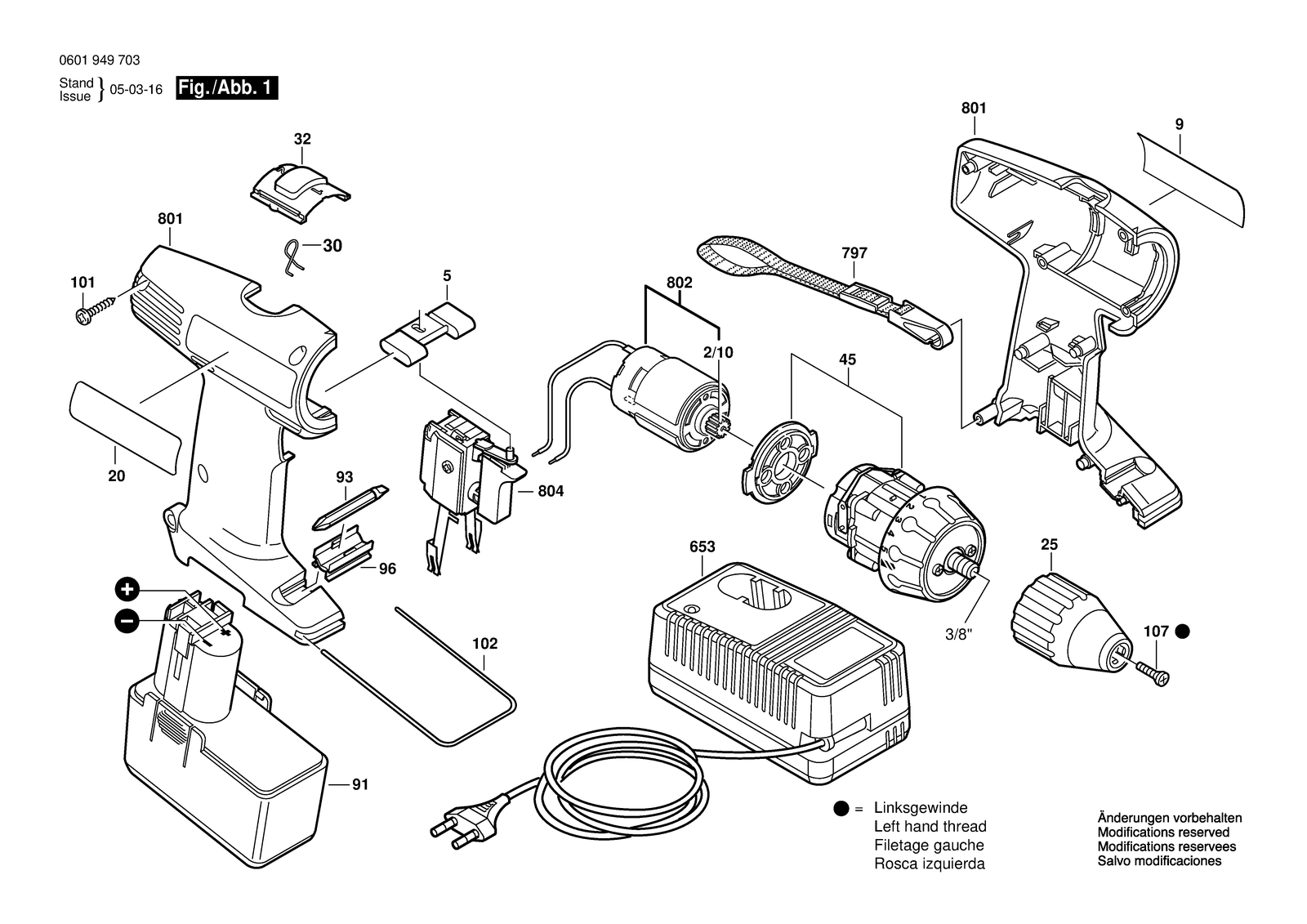

Bosch GSR 7,2 V parts diagram, sheet 1
No.Part numberPart name
1012603490018Torx Oval-Head Screw 3X18
1022601329041Retaining Bracket
1072609110721Countersunk-Head Screw M5X20
2/102606316161Pinion Z=12
202601117027Reference Plate Shadow Side
252608572214Keyless Chuck
302602033008Control Fork
322601099060Adjusting Slide Black
452606200047Planetary Gear Train
52601099055Adjusting Slide Red
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224431Fast Charger USA 120/7,2-24V, 1H
6532607224443Fast Charger AUS 240/7,2-14,4V, 1H
6532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
6532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
6532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
6532607224707Fast Charger USA 120/7,2-14,4V, 30 Min.
7972601398009Carrying Loop
8012605104676Housing Section Blue
8022607022941DC motor 7,2-12V
8042607200353On-Off Switch
92601117026Manufacturer's nameplate Sunny Side
912607335115Slide-In Accu Package 7,2V,1,4AH,NICD
931609200147Screwdriver Blade 6 MM
962608040079Support
