Bosch GSR 7,2-2

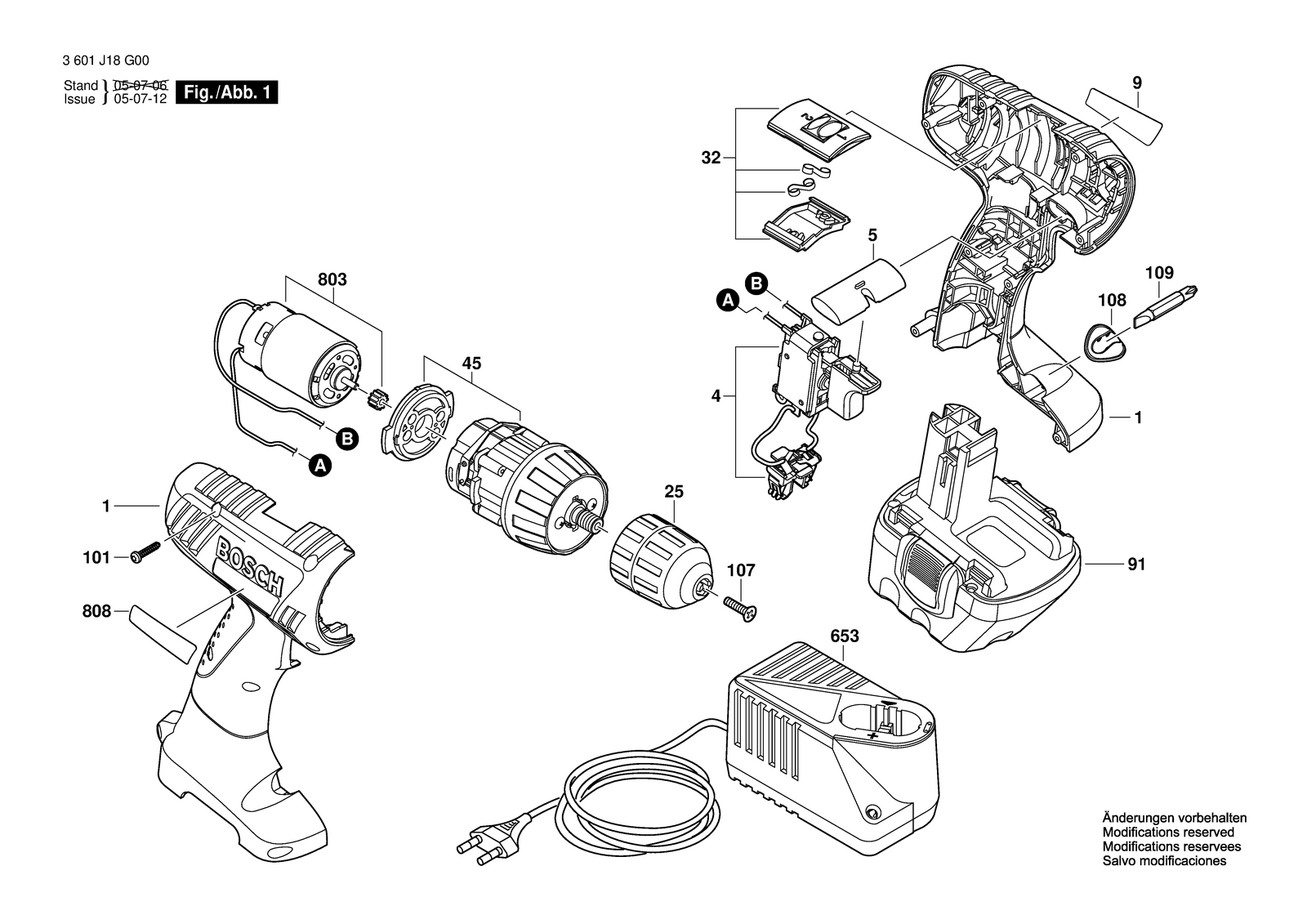

Bosch GSR 7,2-2 cordless drill driver: exploded parts diagram, 1 sheet, 111 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 7,2-2: 111 positions on 1 sheet
Bosch GSR 7,2-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100626 | Housing |
| 1 | 2609100625 | Housing |
| 1 | 2609100374 | Housing Blue |
| 1 | 2609100373 | Housing Blue |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 108 | 2607001443 | Toolholder |
| 108 | 2607001443 | Toolholder |
| 108 | 2607001443 | Toolholder |
| 108 | 2607001443 | Toolholder |
| 109 | 2609160063 | Screwdriver Bit |
| 109 | 2609160063 | Screwdriver Bit |
| 109 | 2609160063 | Screwdriver Bit |
| 109 | 2609160063 | Screwdriver Bit |
| 25 | 2609110495 | Keyless Chuck Ø1,0-10 Mm, 3/8 |
| 25 | 2609110495 | Keyless Chuck Ø1,0-10 Mm, 3/8 |
| 25 | 2609110495 | Keyless Chuck Ø1,0-10 Mm, 3/8 |
| 25 | 2609110495 | Keyless Chuck Ø1,0-10 Mm, 3/8 |
| 32 | 2609120202 | Regulator |
| 32 | 2609120202 | Regulator |
| 32 | 2609120202 | Regulator |
| 32 | 2609120202 | Regulator |
| 4 | 2609199070 | On-Off Switch |
| 4 | 2609199070 | On-Off Switch |
| 4 | 2609199070 | On-Off Switch |
| 4 | 2609199070 | On-Off Switch |
| 45 | 2609110493 | Gear Box |
| 45 | 2609110385 | Planetary Gear Train |
| 45 | 2609110385 | Planetary Gear Train |
| 45 | 2609110385 | Planetary Gear Train |
| 5 | 2609100744 | Button |
| 5 | 2609100744 | Button |
| 5 | 2609100744 | Button |
| 5 | 2609100744 | Button |
| 653 | 2607224391 | Fast Charger EU 230/7,2-14,4V, 1H |
| 653 | 2607224393 | Fast Charger GB 230/7,2-14,4V, 1H |
| 653 | 2607224397 | Fast Charger USA 120/7,2-14,4V, 1H |
| 653 | 2607224401 | Fast Charger ROK 220/7,2-14,4V, 1H |
| 653 | 2607224443 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 653 | 2607224727 | Fast Charger CN 220/7,2-14,4V, 1H |
| 653 | 2607224977 | Fast Charger BR 127/7,2-14,4V, 1H |
| 653 | 2607224979 | Fast Charger BR 220/7,2-14,4V, 1H |
| 653 | 2607225317 | Fast Charger AR 230/7,2-14,4, 1H |
| 653 | 2607224391 | Fast Charger EU 230/7,2-14,4V, 1H |
| 653 | 2607224393 | Fast Charger GB 230/7,2-14,4V, 1H |
| 653 | 2607224397 | Fast Charger USA 120/7,2-14,4V, 1H |
| 653 | 2607224401 | Fast Charger ROK 220/7,2-14,4V, 1H |
| 653 | 2607224727 | Fast Charger CN 220/7,2-14,4V, 1H |
| 653 | 2607224977 | Fast Charger BR 127/7,2-14,4V, 1H |
| 653 | 2607224979 | Fast Charger BR 220/7,2-14,4V, 1H |
| 653 | 2607225317 | Fast Charger AR 230/7,2-14,4, 1H |
| 653 | 2607224391 | Fast Charger EU 230/7,2-14,4V, 1H |
| 653 | 2607224393 | Fast Charger GB 230/7,2-14,4V, 1H |
| 653 | 2607224397 | Fast Charger USA 120/7,2-14,4V, 1H |
| 653 | 2607224401 | Fast Charger ROK 220/7,2-14,4V, 1H |
| 653 | 2607224727 | Fast Charger CN 220/7,2-14,4V, 1H |
| 653 | 2607224979 | Fast Charger BR 220/7,2-14,4V, 1H |
| 653 | 2607225317 | Fast Charger AR 230/7,2-14,4, 1H |
| 653 | 2607224391 | Fast Charger EU 230/7,2-14,4V, 1H |
| 653 | 2607224393 | Fast Charger GB 230/7,2-14,4V, 1H |
| 653 | 2607224401 | Fast Charger ROK 220/7,2-14,4V, 1H |
| 653 | 2607224727 | Fast Charger CN 220/7,2-14,4V, 1H |
| 803 | 2609120204 | Motor 14,4V |
| 803 | 2609120622 | DC motor |
| 803 | 2609120259 | DC motor 12V |
| 803 | 2609120621 | DC motor |
| 803 | 2609120258 | DC motor 9,6V |
| 803 | 2609120203 | Motor 7,2V |
| 808 | 1600A00Y9E | Nameplate |
| 808 | 2609131113 | Type Label |
| 808 | 2609131116 | Type Label |
| 808 | 2609131457 | Type Label |
| 808 | 2609131488 | Type Label |
| 808 | 2609131489 | Type Label |
| 808 | 2609135871 | Nameplate |
| 808 | 2609135873 | Nameplate |
| 808 | 1600A00Y9G | Nameplate |
| 808 | 2609131118 | Nameplate |
| 808 | 2609131121 | Nameplate |
| 808 | 2609131456 | Type Label |
| 808 | 2609131469 | Type Label |
| 808 | 2609131470 | Type Label |
| 808 | 2609135875 | Nameplate |
| 808 | 2609135877 | Nameplate |
| 808 | 2609131122 | Nameplate |
| 808 | 2609131123 | Nameplate |
| 808 | 2609131126 | Type Label |
| 808 | 2609131444 | Type Label |
| 808 | 2609131455 | Type Label |
| 808 | 2609135879 | Nameplate |
| 808 | 2609135881 | Nameplate |
| 808 | 1600A00Y9K | Nameplate |
| 808 | 2609131128 | Nameplate |
| 9 | 2609130867 | Manufacturer's nameplate GSR 14,4-2 |
| 9 | 2609130866 | Manufacturer's nameplate GSR 12-2 |
| 9 | 2609130865 | Manufacturer's nameplate GSR 9,6-2 |
| 9 | 2609130864 | Manufacturer's nameplate GSR 7,2-2 |
| 91 | 1617S0004W | Accumulator package 14,4V, 1,5AH, Nicd |
| 91 | 2607335263 | Slide-In Accu Package 14,4V,2,0AH,NICD |
| 91 | 2607335699 | Slide-In Accu Package 14,4V, 2,0AH, Nimh |
| 91 | 1617S00N7F | Slide-In Accu Package 12V, 1,5AH, Nicd |
| 91 | 2607335261 | Slide-In Accu Package 12V,2,0AH,NICD |
| 91 | 2607335697 | Slide-In Accu Package 12V,2,0AH,NIMH |
| 91 | 2607335707 | Slide-In Accu Package 9,6V,1,5AH, Nicd |
| 91 | 2607335765 | Slide-In Accu Package 7,2V,1,5AH,NICD |
