Bosch GSR 6-60 TE

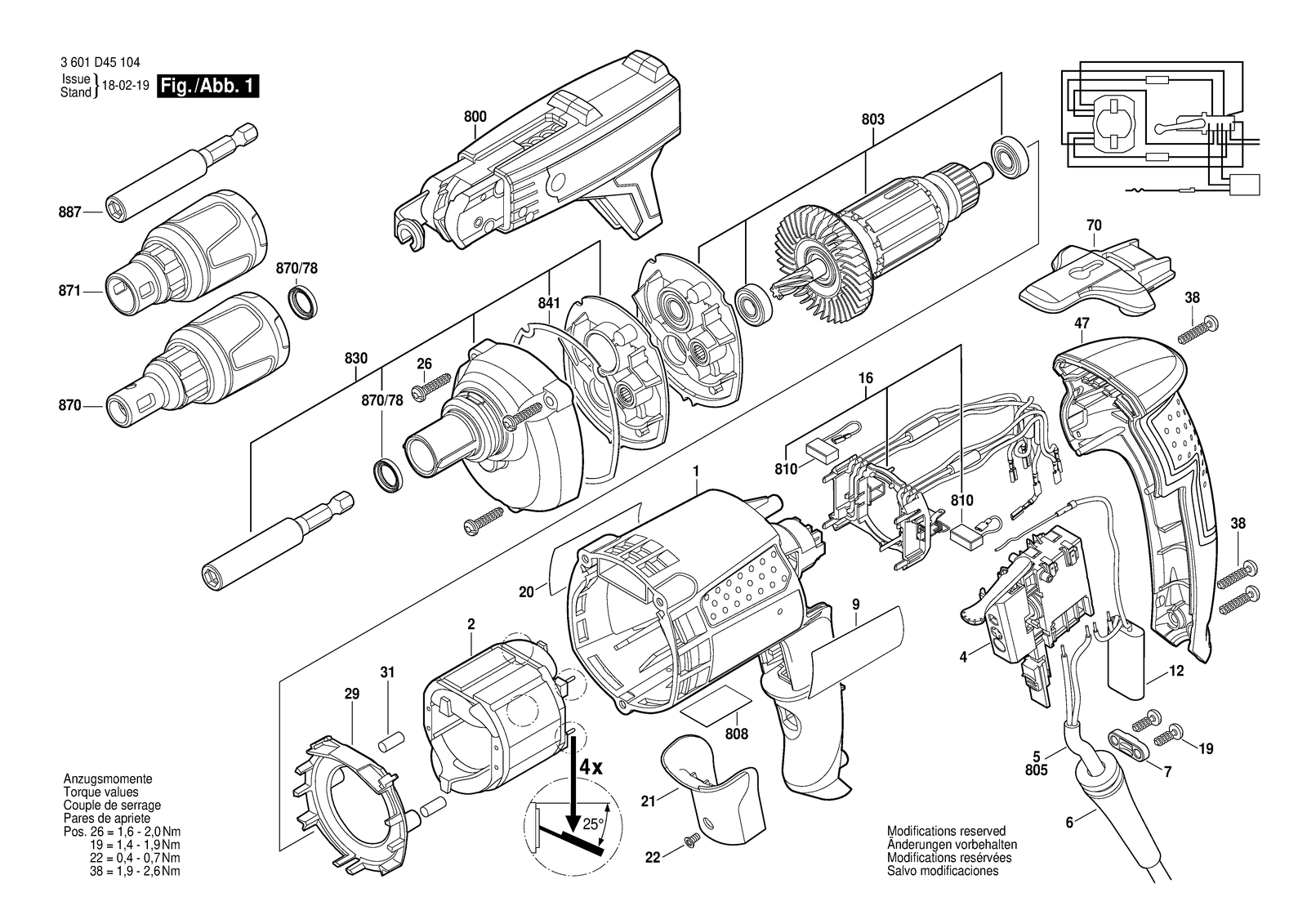

Bosch GSR 6-60 TE drill screwdriver: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 6-60 TE: 71 positions on 1 sheet
Bosch GSR 6-60 TE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605108083 | Motor Housing Dark Blue |
| 1 | 2605108083 | Motor Housing Dark Blue |
| 12 | 2607329151 | Suppression Filter |
| 12 | 2607329151 | Suppression Filter |
| 16 | 2605807124 | Brush Plate |
| 16 | 2605807123 | Brush Plate |
| 16 | 2605807124 | Brush Plate |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 2 | 2604220456 | Field 220-240V |
| 2 | 2604220741 | Field 220-240V |
| 2 | 2604220746 | Field 100-127V |
| 20 | 2601111967 | Reference Plate |
| 20 | 2601111895 | Reference Plate |
| 21 | 2605500196 | Switch Cover Red |
| 21 | 2605500196 | Switch Cover Red |
| 22 | 2910541050 | Countersunk-Head Screw DIN 7991 M3X8-8.8 |
| 22 | 2910541050 | Countersunk-Head Screw DIN 7991 M3X8-8.8 |
| 26 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 26 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 29 | 2601328092 | Air-Deflector Ring |
| 29 | 2601328092 | Air-Deflector Ring |
| 31 | 2602391004 | Rubber Buffer |
| 31 | 2602391004 | Rubber Buffer |
| 38 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 38 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 4 | 2607200638 | Switch |
| 4 | 2607200638 | Switch |
| 4 | 2607200639 | Switch |
| 47 | 2605132073 | Housing Cover Dark Blue |
| 47 | 2605132073 | Housing Cover Dark Blue |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460287 | Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 7 | 2601035004 | Cable Clip |
| 7 | 2601035004 | Cable Clip |
| 70 | 2601329127 | Belt holder clip |
| 70 | 2601329127 | Belt holder clip |
| 800 | 2607020396 | Hopper |
| 800 | 2607020396 | Hopper |
| 803 | 2604011943 | Armature 220-240V |
| 803 | 2604011945 | Armature 220-240V |
| 803 | 2604011946 | Armature 120-127V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A53M | Nameplate |
| 808 | 160111A541 | Nameplate |
| 808 | 160111A542 | Nameplate |
| 808 | 160111A543 | Nameplate |
| 808 | 160111A545 | Nameplate |
| 810 | 2604321943 | Carbon-Brush Set |
| 810 | 2604321942 | Carbon-Brush Set |
| 810 | 2604321943 | Carbon-Brush Set |
| 830 | 2606200954 | Gear Unit |
| 830 | 2606200955 | Gear Unit |
| 841 | 2601015097 | Seal |
| 841 | 2601015097 | Seal |
| 870 | 2600460049 | Depth-Gauge |
| 870 | 2600460049 | Depth-Gauge |
| 870/78 | 3600290502 | Seal Ring |
| 870/78 | 3600290502 | Seal Ring |
| 871 | 2600460050 | Depth-Gauge |
| 871 | 2600460050 | Depth-Gauge |
| 887 | 3603008500 | Toolholder 1/4" |
| 887 | 3603008500 | Toolholder 1/4" |
| 9 | 160111C0W2 | Manufacturer's nameplate |
| 9 | 2601115056 | Manufacturer's nameplate Bosch |
| 9 | 2601111894 | Manufacturer's nameplate GSR 6-60 Te |
