Bosch GSR 6-25 TE

Bosch GSR 6-25 TE drill screwdriver: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 6-25 TE: 30 positions on 1 sheet

Bosch GSR 6-25 TE parts list (1 sheet)

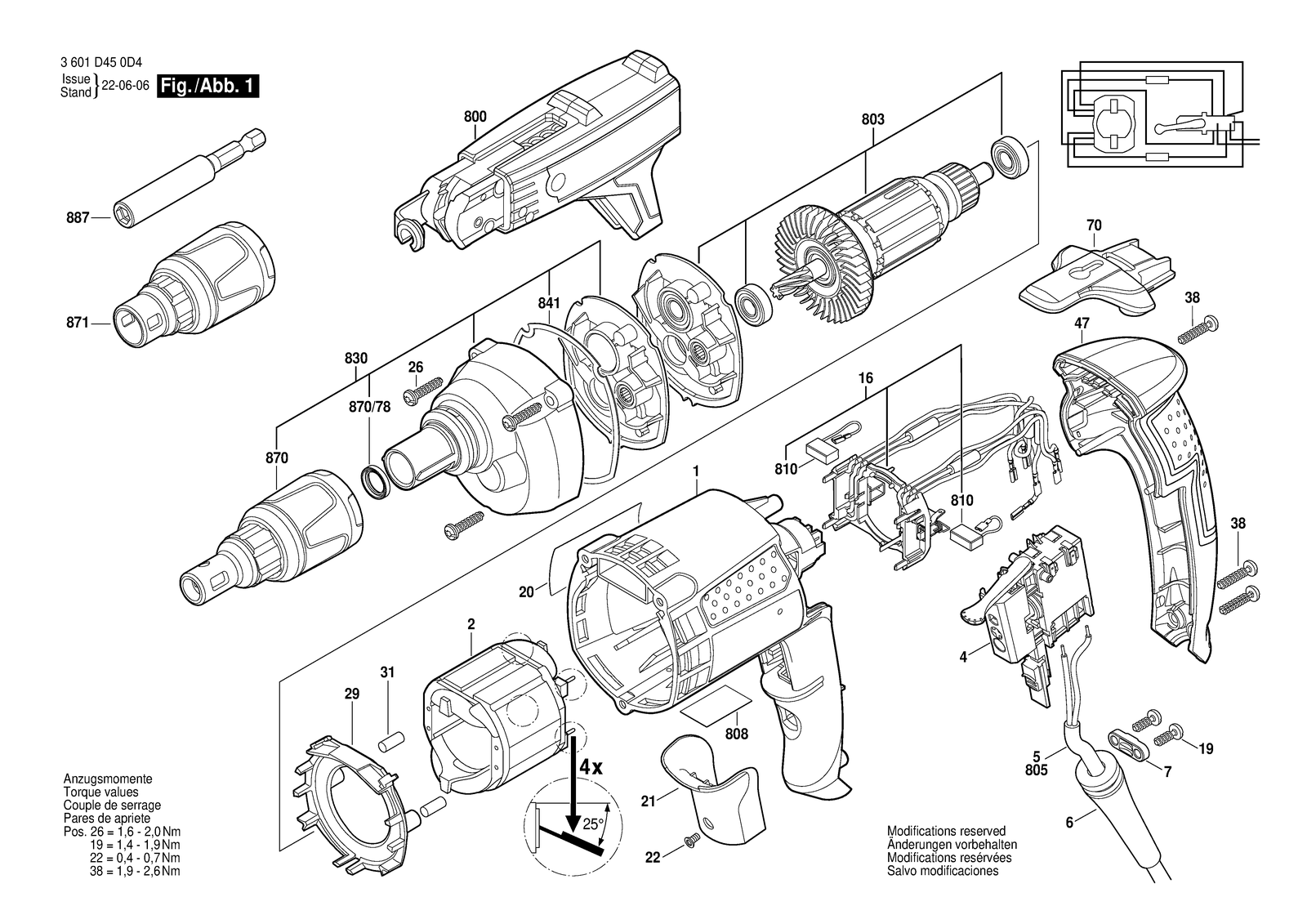

Bosch GSR 6-25 TE parts diagram, sheet 1
No.Part numberPart name
12605108083Motor Housing Dark Blue
162605807123Brush Plate
192603490021Torx Oval-Head Screw 4X12
22604220455Field 100-127V
202601111965Reference Plate
212605500196Switch Cover Red
222910541050Countersunk-Head Screw DIN 7991 M3X8-8.8
262603490024Torx Oval-Head Screw 4X25
292601328092Air-Deflector Ring
312602391004Rubber Buffer
382603490023Torx Oval-Head Screw 4X20
42607200639Switch
472605132073Housing Cover Dark Blue
52604460249Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2
52604460287Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F
62600703017Grommet Ø6,4-Ø7,2X76 MM
62600703018Grommet Ø7,3-Ø8,6X76 MM
72601035004Cable Clip
702601329127Belt holder clip
8002607020396Hopper
8032604011942Armature 110-127V
808160111A53PNameplate
808160111A53SNameplate
8102604321942Carbon-Brush Set
8302606200268Gear Unit
8412601015097Seal
8702600460049Depth-Gauge
870/783600290502Seal Ring
8712600460050Depth-Gauge
8873603008500Toolholder 1/4"
