Bosch GSR 6-25 TE

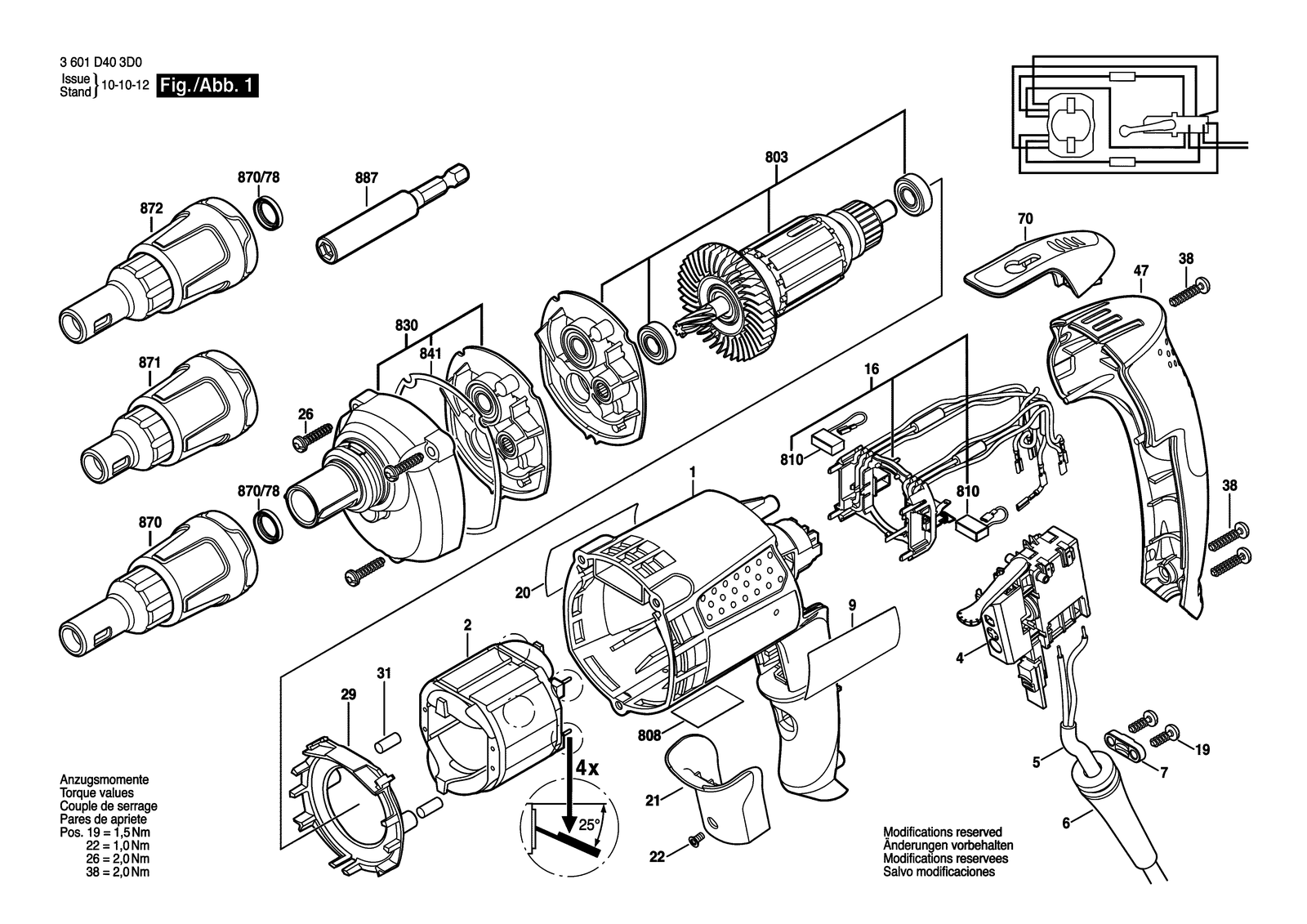

Bosch GSR 6-25 TE drill screwdriver: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 6-25 TE: 62 positions on 1 sheet
Bosch GSR 6-25 TE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605108083 | Motor Housing Dark Blue |
| 1 | 2605108083 | Motor Housing Dark Blue |
| 16 | 2605807123 | Brush Plate |
| 16 | 2605807123 | Brush Plate |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 2 | 2604220455 | Field 100-127V |
| 2 | 2604220455 | Field 100-127V |
| 20 | 2601115265 | Reference Plate |
| 20 | 2601115268 | Reference Plate |
| 21 | 2605500196 | Switch Cover Red |
| 21 | 2605500196 | Switch Cover Red |
| 22 | 2910541050 | Countersunk-Head Screw DIN 7991 M3X8-8.8 |
| 22 | 2910541050 | Countersunk-Head Screw DIN 7991 M3X8-8.8 |
| 26 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 26 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 29 | 2601328078 | Cover Disc |
| 29 | 2601328078 | Cover Disc |
| 31 | 2602391004 | Rubber Buffer |
| 31 | 2602391004 | Rubber Buffer |
| 38 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 38 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 4 | 2607200639 | Switch |
| 4 | 2607200639 | Switch |
| 47 | 2605132061 | Housing Cover Dark Blue |
| 47 | 2605132061 | Housing Cover Dark Blue |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460287 | Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460287 | Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 7 | 2601035004 | Cable Clip |
| 7 | 2601035004 | Cable Clip |
| 70 | 2601329113 | Belt holder clip |
| 70 | 2601329113 | Belt holder clip |
| 803 | 2604011927 | Armature 120-127V |
| 803 | 2604011929 | Armature 120-127V |
| 808 | 2601115332 | Marking Plate |
| 808 | 2601115334 | Marking Plate |
| 808 | 2601115333 | Marking Plate |
| 808 | 2601115335 | Marking Plate |
| 810 | 2604321942 | Carbon-Brush Set |
| 810 | 2604321942 | Carbon-Brush Set |
| 830 | 2606200209 | Gear Unit |
| 830 | 2606200236 | Gear Unit |
| 841 | 2601015097 | Seal |
| 841 | 2601015097 | Seal |
| 870 | 2602025165 | Depth-Gauge |
| 870 | 2602025165 | Depth-Gauge |
| 870/78 | 3600290502 | Seal Ring |
| 870/78 | 3600290502 | Seal Ring |
| 871 | 2602025166 | Depth-Gauge |
| 871 | 2602025166 | Depth-Gauge |
| 872 | 2602025167 | Depth-Gauge |
| 872 | 2602025167 | Depth-Gauge |
| 887 | 3603008500 | Toolholder 1/4" |
| 887 | 3603008500 | Toolholder 1/4" |
| 9 | 2601115057 | Manufacturer's nameplate |
| 9 | 2601115059 | Manufacturer's nameplate |
