Bosch GSR 24 VE-2

Bosch GSR 24 VE-2 batt-oper screwdriver: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 24 VE-2: 28 positions on 1 sheet

Bosch GSR 24 VE-2 parts list (1 sheet)

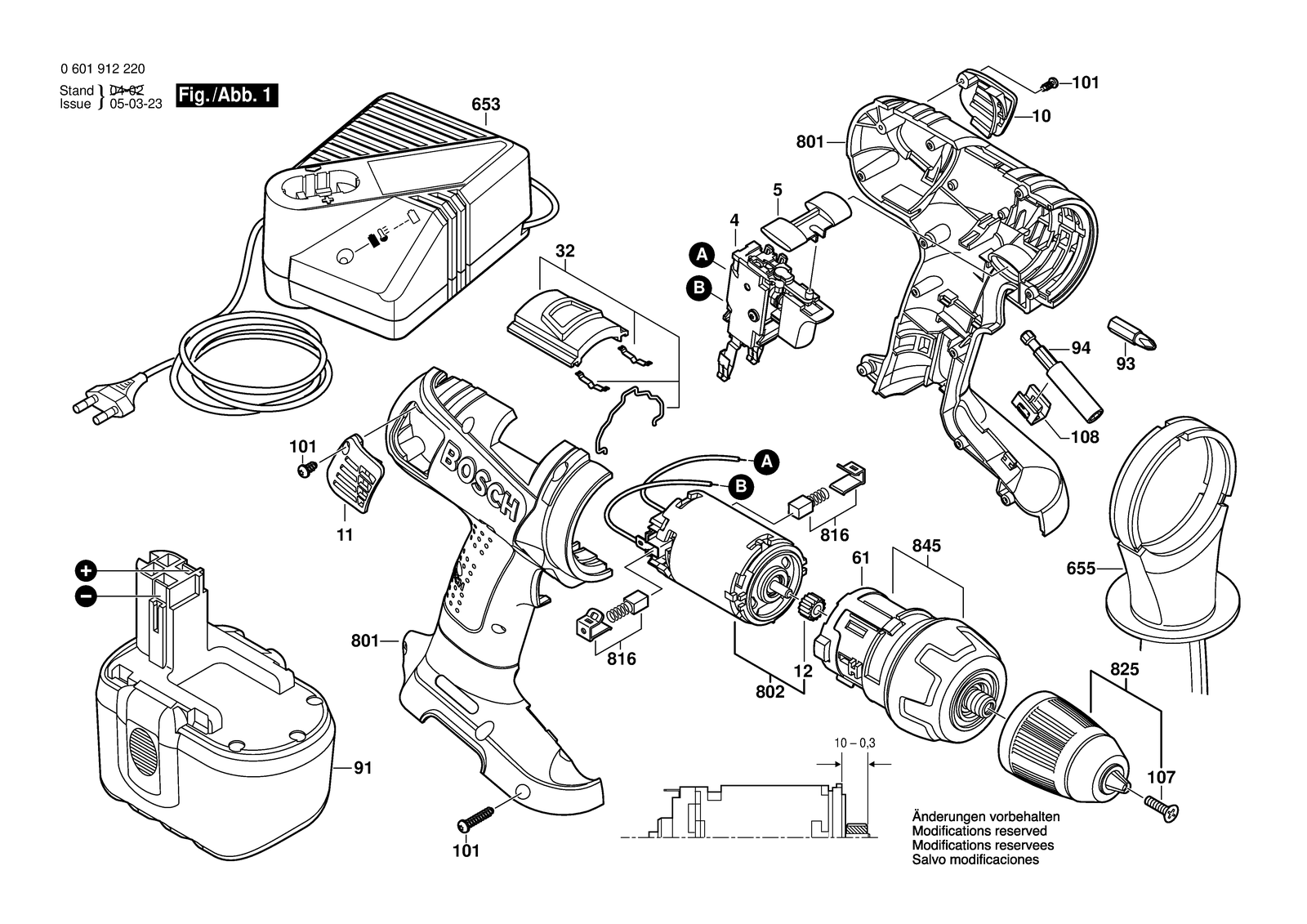

Bosch GSR 24 VE-2 parts diagram, sheet 1
No.Part numberPart name
102600508051Cover Black
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1082604690027Spring Element
112600508052Cover Black
122606316223Pinion
322601099127Adjusting Slide
42607200458On-Off Switch
52601099112Adjusting Slide Red
612608040190Support
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224429Fast Charger AUS 240/7,2-24V, 1H
6532607224433Fast Charger SAM 115/7,2-24V,1H
6532607224493Fast Charger J 100/7,2-24V, 15 Min.
6532607224983Fast Charger BR 220/7,2-24V, 1H
6532607225027Fast Charger EU 230/7,2-24V, 30 Min.
6532607225029Fast Charger GB 230/7,2-24V, 30 Min.
6552602025135Auxiliary Handle
8012605105910Housing Section Blue
8022607022866DC motor 24V
8162607034904Carbon-Brush Set
8252608572900Keyless Chuck
8452606200930Planetary Gear Train
912607335445Battery Pack 24V,2,0AH,NICD
912607335561Battery Pack 24V,2,6AH,NIMH
932607000366Screwdriver Bit
942607001438Toolholder
