Bosch GSR 18V-90 FC

Bosch GSR 18V-90 FC cordless drill driver: exploded parts diagram, 2 sheets, 39 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 18V-90 FC: 39 positions on 2 sheets

Bosch GSR 18V-90 FC parts list (2 sheets)

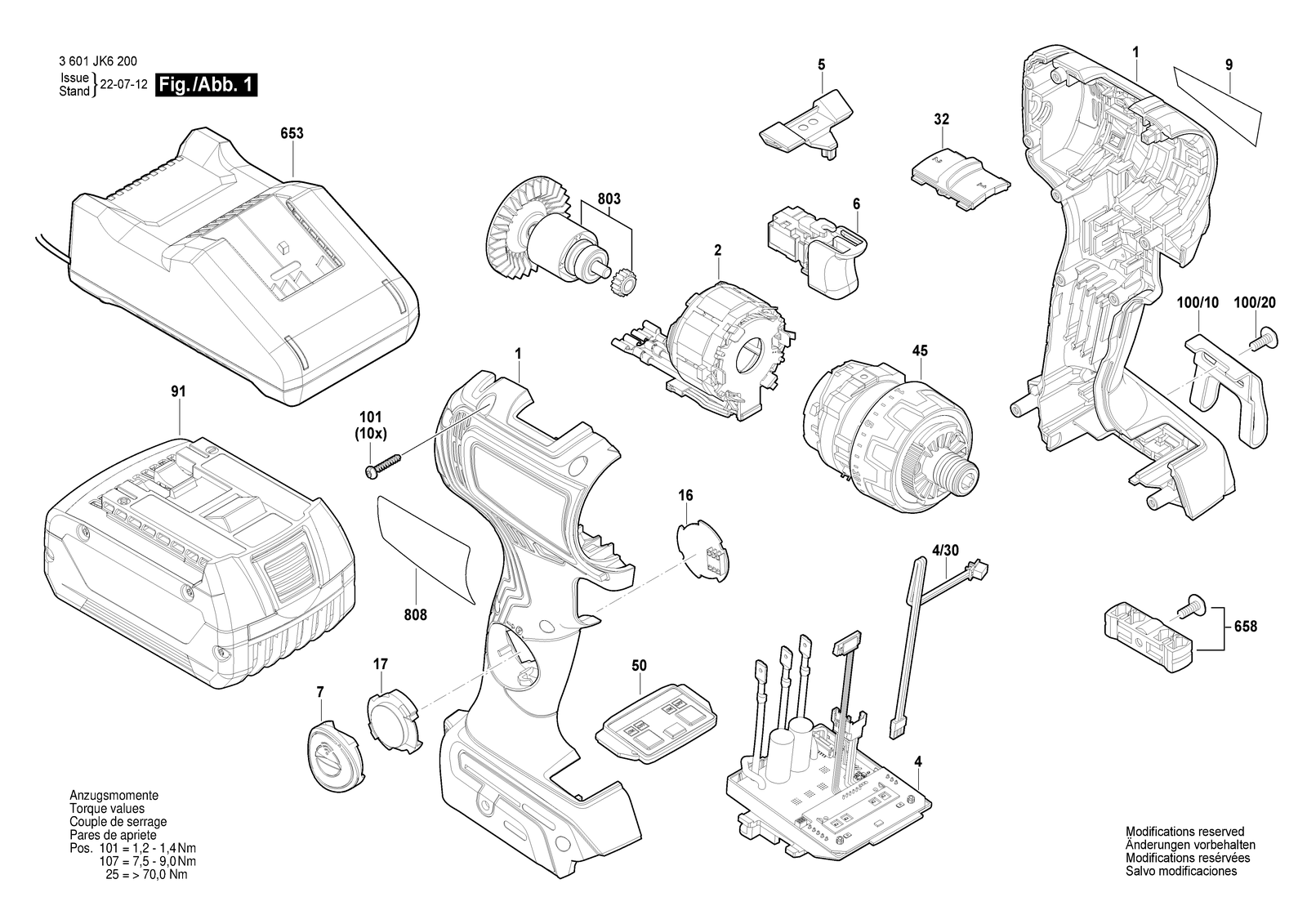

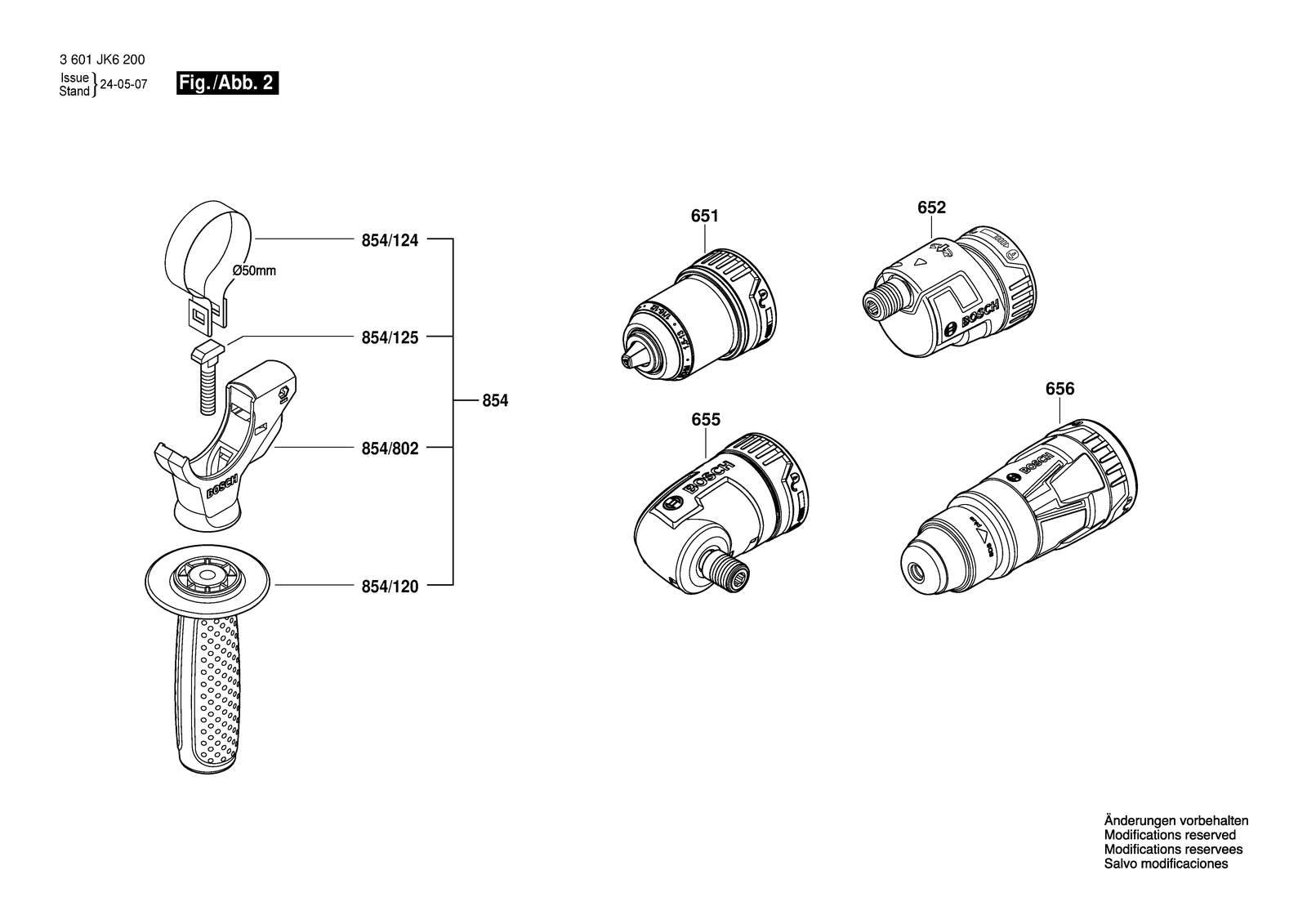

Bosch GSR 18V-90 FC parts diagram, sheet 1Bosch GSR 18V-90 FC parts diagram, sheet 2
No.Part numberPart name
11600A01V6WHousing
100/102609111584Clip
100/202609110834Screw
1012609110353Torx Oval-Head Screw
161600A016CZElectronics Module
171600A02KY7Cover Panel
21600A01W0TStator
321600A02477Switchover Unit
416072335JSElectronics Module
4/301607504124Printed-Board Assembly
451600A00J5SGear Box
51600A023EEChangeover Lever
501600A025W9Separator
62607202904Switch
6511600A00ZS9Chuck attachment
6522609199636Eccentric attachment
6532607226251Fast Charger EU GAL 18V-40, 230V/10,8V – 18V
6532607226261Fast Charger Jp GAL 18V-40
6532607226263Fast Charger Rok GAL 18V-40
6532607226267Fast Charger Cn GAL 18V-40
6532607226269Fast Charger Ar GAL 18V-40
6551600A00RR2Right-angle attachment
6562609199816Attachment
6582609199748Bit holder
71600A025PZCover unit
8031600A029PGRotor
808160111A90YNameplate
808160111A9JBNameplate
808160111A9JCNameplate
808160111A9JDNameplate
854160202508XAuxiliary Handle
854/120160202507HAuxiliary Handle
854/1241611316021Clamping Band Ø50 MM
854/1251613490002T-Head Bolt M8X40 MM
854/8021617000475Support clamp
9160111C4MHManufacturer's nameplate
911607A350MABattery Pack GBA 18V 2.0AH
912607337081Battery Pack Bbs Mr-Xl, 18V, 5AH
912607337085Battery Pack Bbs Mr-Xl, 18V, 5AH Korea
