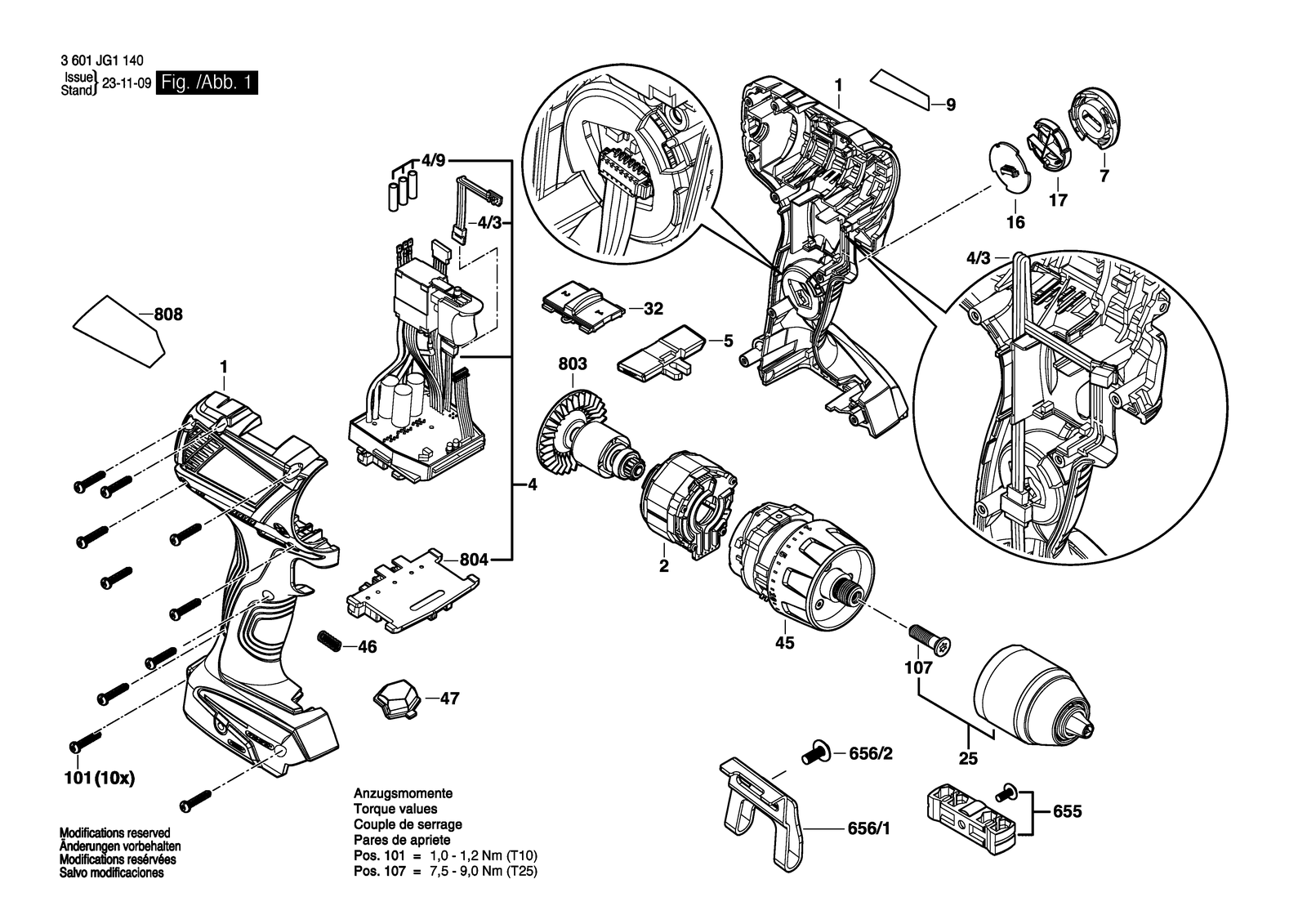

Bosch GSR 18V-60 C cordless drill driver: exploded parts diagram, 2 sheets, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 18V-60 C: 65 positions on 2 sheets
Bosch GSR 18V-60 C parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A00H64 | Housing |
| 1 | 1600A00H64 | Housing |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 107 | 160343508G | Countersunk-Head Screw |
| 16 | 1607503333 | Printed-Board Assembly |
| 16 | 1607503333 | Printed-Board Assembly |
| 17 | 1600A00M53 | Cover Panel |
| 17 | 1600A013WF | Electronics Module |
| 17 | 1600A00M53 | Cover Panel |
| 2 | 1619P13836 | Stator |
| 2 | 1619P13836 | Stator |
| 25 | 2609111944 | Keyless Chuck |
| 25 | 1600A0122S | Keyless Chuck |
| 32 | 2609199812 | Switchover Unit |
| 32 | 2609199812 | Switchover Unit |
| 4 | 16072335D9 | Electronic Module |
| 4 | 16072335D9 | Electronic Module |
| 4/3 | 1607503369 | Printed-Board Assembly |
| 4/3 | 1607503369 | Printed-Board Assembly |
| 4/9 | 160071203J | Shrinkable Tube |
| 4/9 | 160071203J | Shrinkable Tube |
| 45 | 1600A00J5P | Gear Box |
| 45 | 1600A0124U | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 46 | 1609280477 | Compression Spring |
| 47 | 2609101490 | Lens |
| 47 | 2609101490 | Lens |
| 5 | 2609101484 | Adjusting lever |
| 5 | 2609101484 | Adjusting lever |
| 655 | 2609199748 | Bit holder |
| 655 | 2609199748 | Bit holder |
| 656/1 | 2609111584 | Clip |
| 656/1 | 2609111584 | Clip |
| 656/2 | 2609110834 | Screw |
| 656/2 | 2609110834 | Screw |
| 7 | 1600A00RU8 | Cover unit |
| 7 | 1600A00RU8 | Cover unit |
| 803 | 2609199894 | DC motor 18V |
| 803 | 2609199894 | DC motor 18V |
| 804 | 1609280820 | Contact retainer 18V |
| 804 | 1609280820 | Contact retainer 18V |
| 808 | 160111A5L1 | Nameplate |
| 808 | 160111A5L2 | Nameplate |
| 808 | 160111A5L3 | Nameplate |
| 808 | 160111A5L4 | Nameplate |
| 808 | 160111A5L5 | Nameplate |
| 808 | 160111A5WH | Nameplate |
| 808 | 160111A5WJ | Nameplate |
| 808 | 160111A5WK | Nameplate |
| 808 | 160111A5WL | Nameplate |
| 808 | 160111A5WM | Nameplate |
| 851 | 2607336851 | Battery Pack Bbs Mr-L, 18V, 2,0 Ah |
| 851 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 851 | 2607337081 | Battery Pack Bbs Mr-Xl, 18V, 5AH |
| 851 | 2607337085 | Battery Pack Bbs Mr-Xl, 18V, 5AH Korea |
| 851/1/22 | 2601115537 | Sticker |
| 851/1/22 | 2601115537 | Sticker |
| 853 | 2607225925 | Charger Aus GAL 1880 CV 230/14,4-18V |
| 853 | 2607225931 | Charger J GAL 1880 CV 100/14,4-18V |
| 853 | 2607225933 | Charger Rok GAL 1880 CV 220V/14,4-18V |
| 853 | 2607225925 | Charger Aus GAL 1880 CV 230/14,4-18V |
| 9 | 2609138460 | Manufacturer's nameplate GSR 18V-60 C |
| 9 | 2609138460 | Manufacturer's nameplate GSR 18V-60 C |
