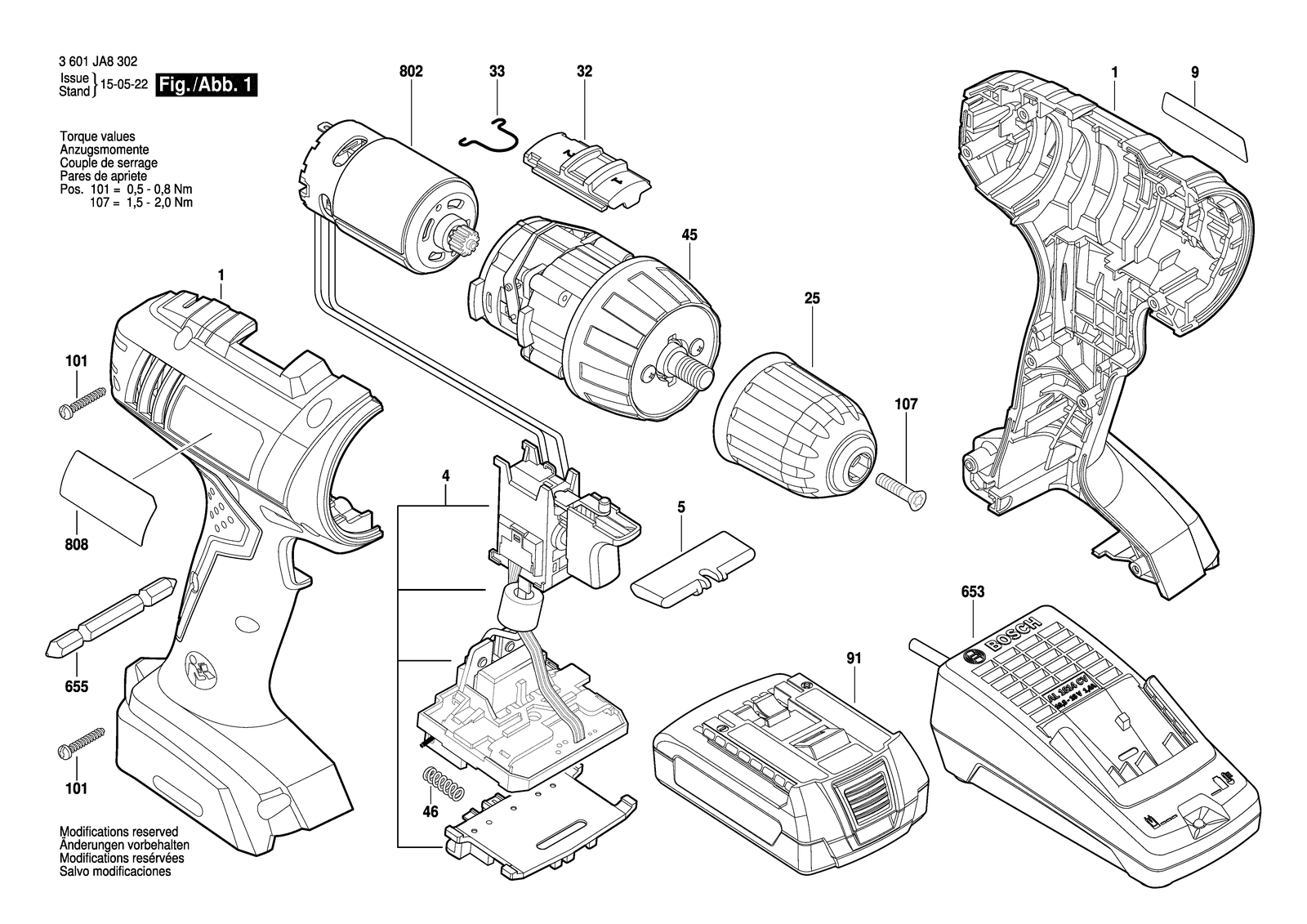

Bosch GSR 18V cordless drill driver: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 18V: 16 positions on 1 sheet
Bosch GSR 18V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100955 | Housing Blue |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 107 | 2609111314 | Countersunk-Head Screw |
| 25 | 2609111225 | Keyless Chuck 10 MM |
| 32 | 2609100956 | Switch Slide |
| 33 | 2609110965 | Spring |
| 4 | 2609199616 | Electronics Module |
| 45 | 2609199337 | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 5 | 2609100698 | Button |
| 653 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 655 | 2609110342 | Screwdriver Blade |
| 802 | 2609120395 | DC motor 18V |
| 808 | 160111A3YC | Nameplate |
| 9 | 161111C04Y | Manufacturer's nameplate |
| 91 | 1607A350JR | Battery Pack GBA 18V 1.5AH |
