Bosch GSR 18V-110 C cordless drill driver: exploded parts diagram, 2 sheets, 39 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 18V-110 C: 39 positions on 2 sheets

Bosch GSR 18V-110 C parts list (2 sheets)

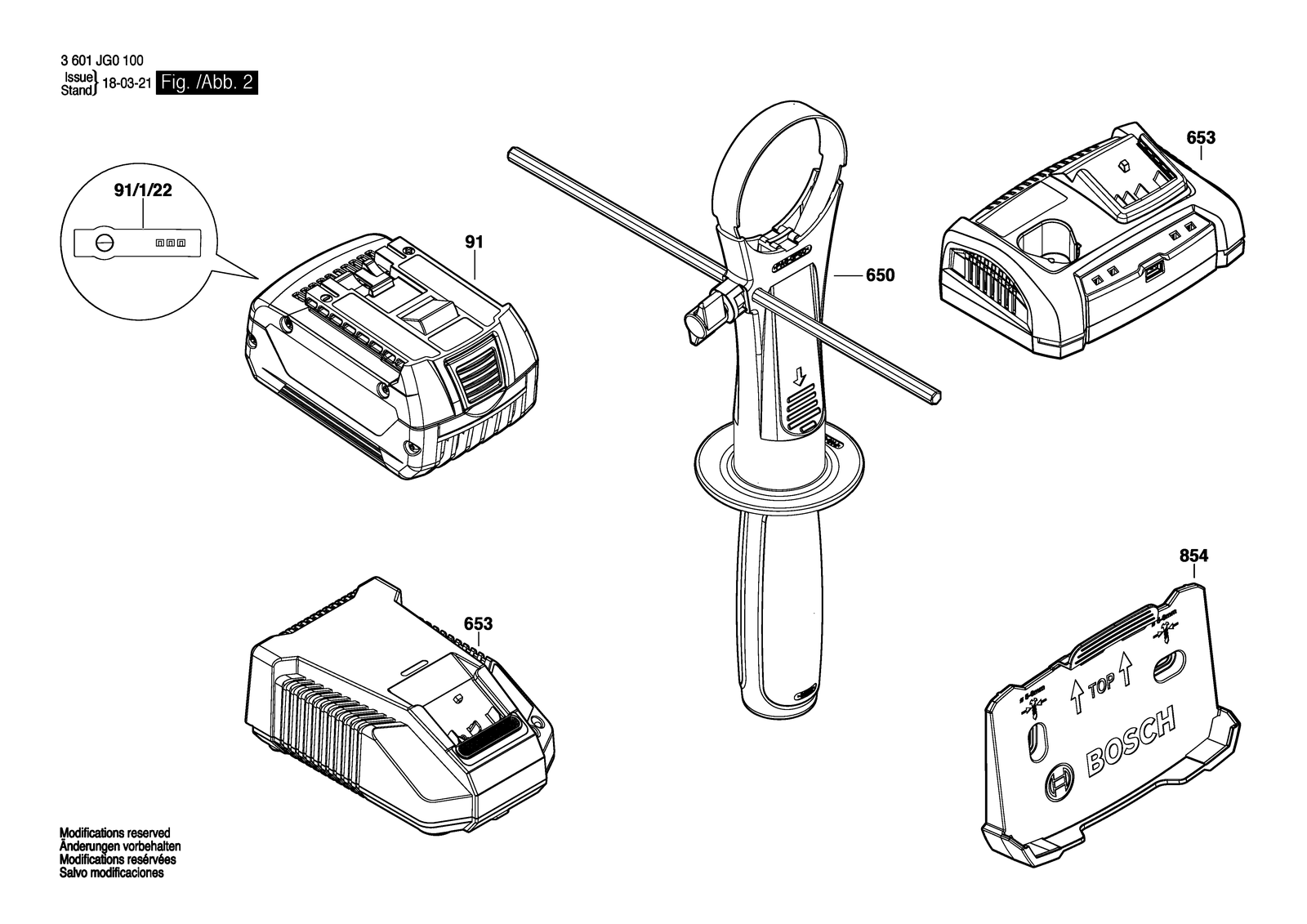

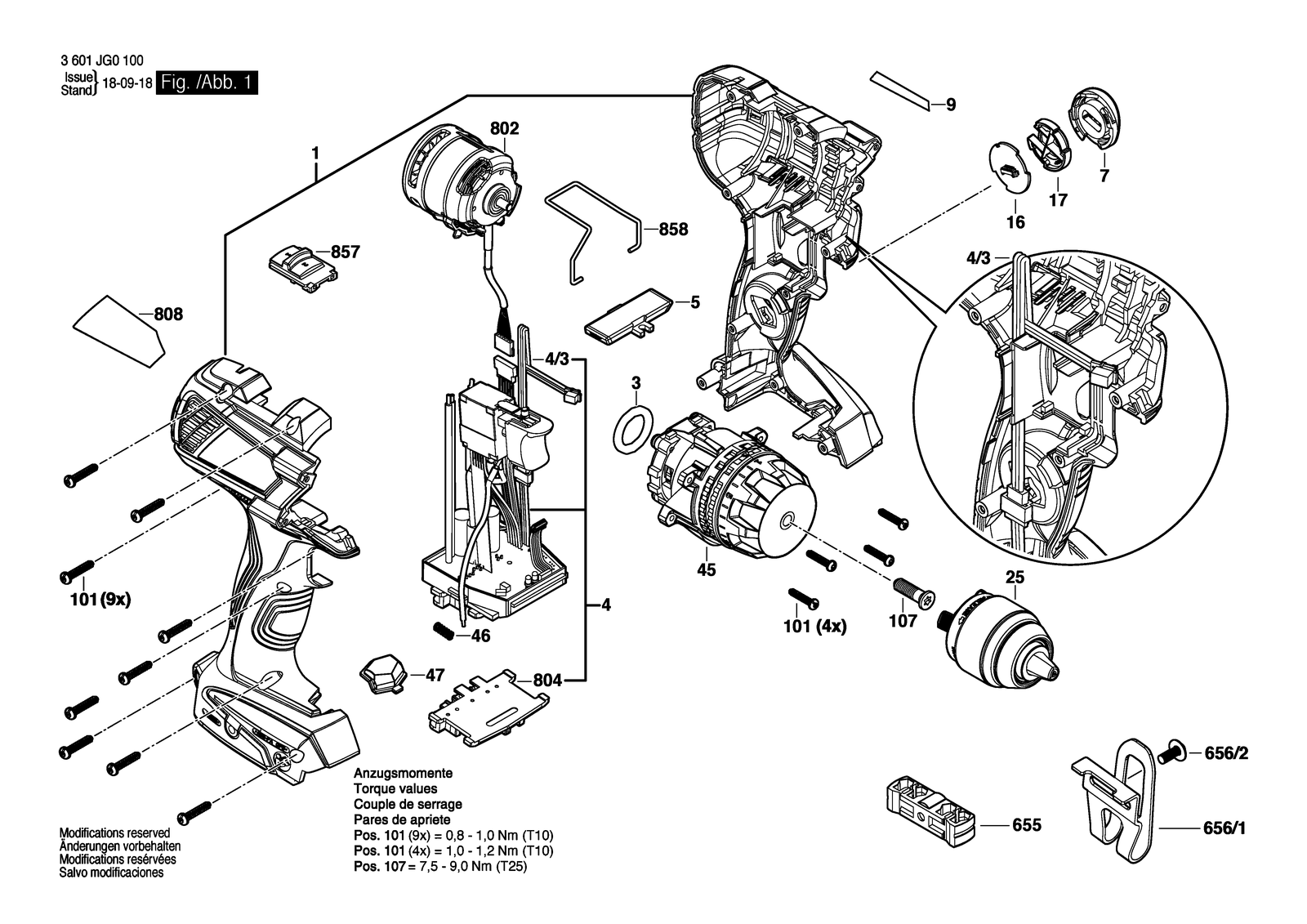

Bosch GSR 18V-110 C parts diagram, sheet 1Bosch GSR 18V-110 C parts diagram, sheet 2
No.Part numberPart name
11600A00M51Housing
1012609110353Torx Oval-Head Screw
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
161607503333Printed-Board Assembly
171600A00M53Cover Panel
251600A01YE8Keyless Chuck
32609170278O-Ring
416072335DBElectronics Module
4/31607503377Printed-Board Assembly
451600A003BBGear Box
461609280477Compression Spring
472609101490Lens
52609101551Adjusting lever
650160202507XAuxiliary Handle
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225893Fast Charger
6532607225921Charger EU GAL 1880 CV 230/14,4-18V
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225991Charger EU GAX 18V-30 230/10,8-18V 1H
6532607226251Fast Charger EU GAL 18V-40, 230V/10,8V – 18V
6552609199748Bit holder
656/12609111584Clip
656/22609110834Screw
71600A00RU9Cover unit
8021600A00XG0Motor Spare Parts Set
8041609280820Contact retainer 18V
808160111A9K1Nameplate
8082609138759Type Label
8541609280A81Bracket
8572609101554Switch Slide
8582609112036Switch Spring
9160111C3A7Manufacturer's nameplate GSR 18V-110
92609138462Manufacturer's nameplate GSR 18V-85 C
911607A350ANBattery Pack GBA 18V 4.0AH Procore Scm
911607A350M0Battery Pack GBA 18V 4.0AH
912607336723Battery Pack GBA 18V 4,0AH
912607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
912607337263Battery Pack GBA 18V 6.0 Ah
91/1/222601115537Sticker
