Bosch GSR 185-LI
Bosch GSR 185-LI cordless drill driver: exploded parts diagram, 1 sheet, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

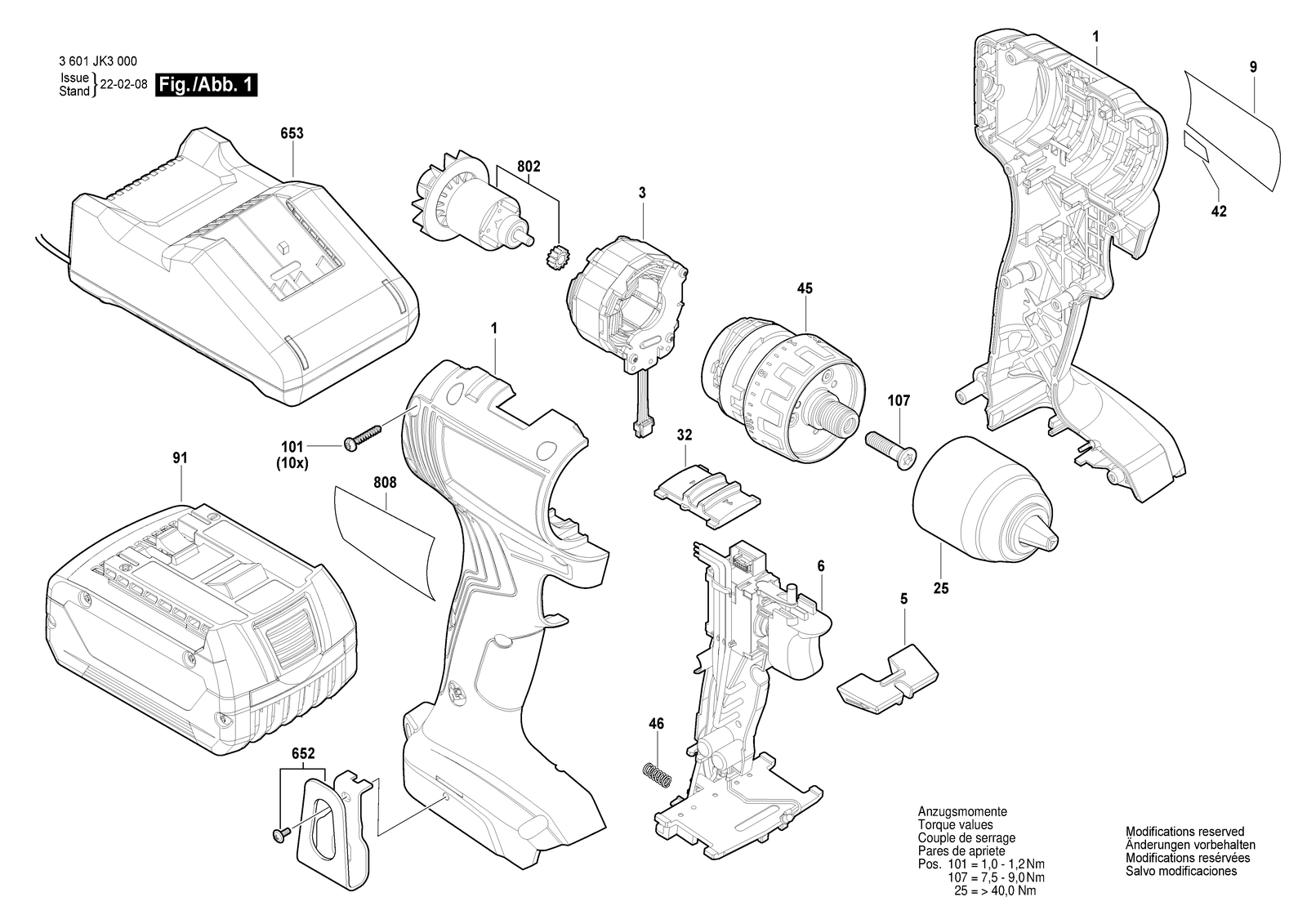

All parts of Bosch GSR 185-LI: 55 positions on 1 sheet
Bosch GSR 185-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 160580662H | Housing |
| 1 | 16058066X4 | Housing |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 25 | 1600A027W8 | Keyless Chuck |
| 25 | 1600A02N9H | Keyless Chuck |
| 3 | 1619P15696 | Stator |
| 3 | 1619P15696 | Stator |
| 32 | 1600A012MM | Switchover Unit |
| 32 | 16058066B8 | Switchover Unit |
| 32 | 1600A037TT | Switchover Unit |
| 42 | 160111C49H | Sticker |
| 42 | 160111C4W5 | Sticker |
| 42 | 160111C6A9 | Sticker |
| 45 | 1600A01ZT8 | Gear Box |
| 45 | 1600A02E8E | Gear Box |
| 45 | 1600A02659 | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 46 | 1609280477 | Compression Spring |
| 5 | 1600A01Z04 | Changeover Lever |
| 5 | 16058066B7 | Changeover Lever |
| 5 | 1600A037TS | Changeover Lever |
| 6 | 2607202513 | Electronics Module |
| 6 | 1600A037TR | Electronics Module |
| 652 | 1600A027W3 | Clip |
| 652 | 1600A027W3 | Clip |
| 653 | 2607226251 | Fast Charger EU GAL 18V-40, 230V/10,8V – 18V |
| 653 | 2607226253 | Fast Charger Gb GAL 18V-40 |
| 653 | 2607226281 | Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A |
| 653 | 2607226283 | Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V |
| 653 | 2607226289 | Fast Charger Lam GAL18V-20 |
| 653 | 2607226295 | Fast Charger Br GAL18V-20, 127V - 220V |
| 653 | 2607226297 | Fast Charger Cn GAL 18V-20 220V 12V-18V 2A |
| 653 | 2607226299 | Fast Charger Ar GAL18V-20 |
| 653 | 2607226537 | Fast Charger Ind GAL 18V-40 220-240V / 4A |
| 653 | 2607226293 | Fast Charger |
| 802 | 1607000EC2 | Rotor |
| 802 | 1607000EC2 | Rotor |
| 808 | 160111A954 | Nameplate |
| 808 | 160111A956 | Nameplate |
| 808 | 160111A958 | Nameplate |
| 808 | 160111A99S | Nameplate |
| 808 | 160111A99T | Nameplate |
| 808 | 160111AD55 | Nameplate |
| 9 | 160111C4DC | Manufacturer's nameplate |
| 9 | 160111C4W3 | Manufacturer's nameplate |
| 9 | 160111C6A8 | Manufacturer's nameplate |
| 91 | 1607A350LA | Battery Pack |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 1607A350M7 | Battery Pack Twn GBA 18V 4.0AH M-c |
| 91 | 1607A350MN | Battery Pack GBA 18V 2.0AH |
| 91 | 1607A350V8 | Battery Pack GBA 18V 2.0AH |
| 91 | 1607A350MC | Battery Pack Kor GBA 18V 2.0AH |
