Bosch GSR 1800-LI

Bosch GSR 1800-LI cordless drill driver: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 1800-LI: 29 positions on 1 sheet

Bosch GSR 1800-LI parts list (1 sheet)

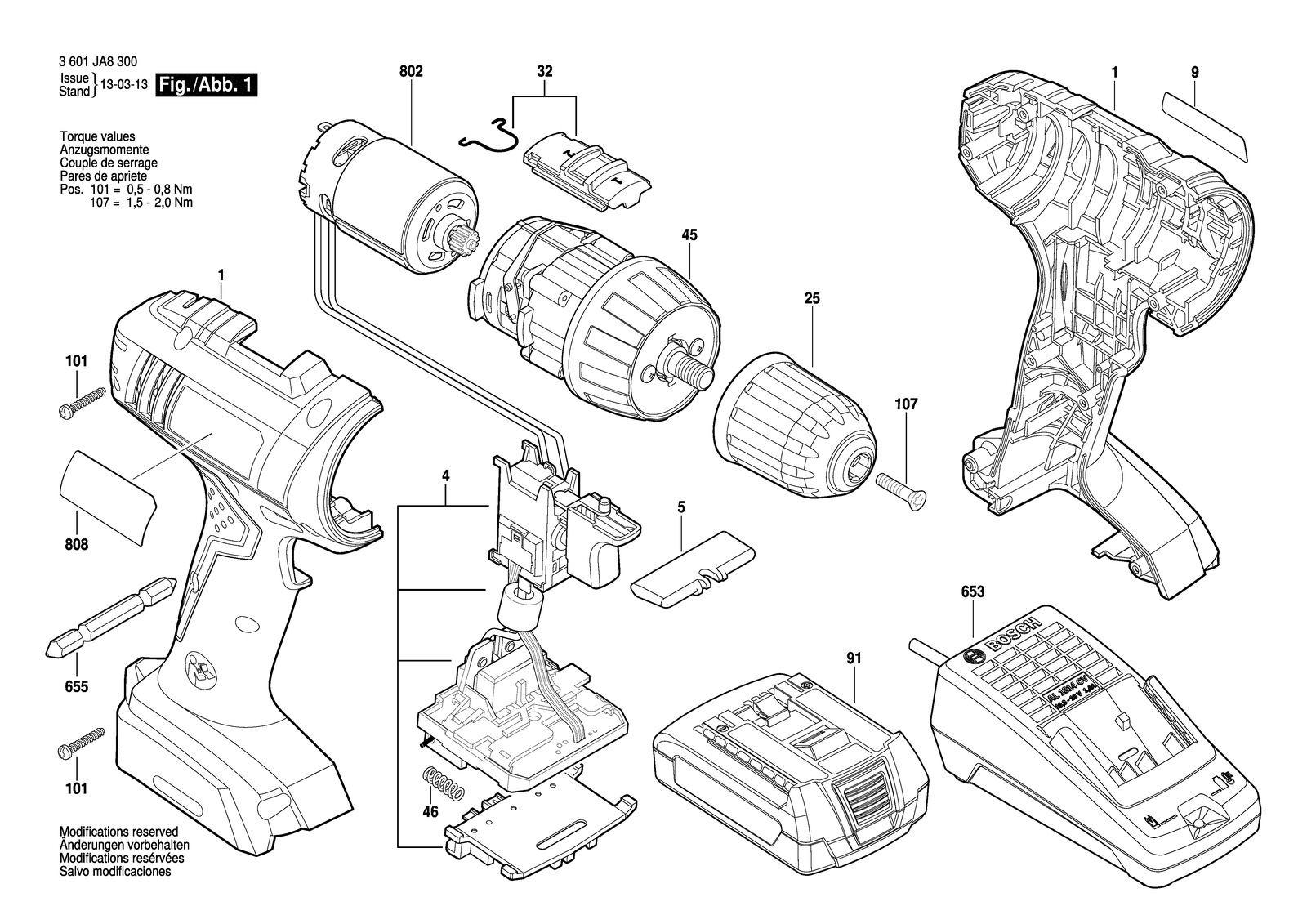

Bosch GSR 1800-LI parts diagram, sheet 1
No.Part numberPart name
12609100955Housing Blue
1012609110201Torx Flat-Head Screw 3X16
1072609111314Countersunk-Head Screw
252609111225Keyless Chuck 10 MM
322609199336Switchover Unit Red
42609199616Electronics Module
452609199337Gear Box
461609280477Compression Spring
52609100698Button
6532607225737Battery Charger ROK 230/10,8-18V, 30 Min
6532607225741Battery Charger CN 230/10,8-18V, 30 Min
6532607225779Battery Charger BR 127/10,8-18V, 30 Min
6532607225783Battery Charger AR 230/10,8-18V, 30 Min
6532607226091Fast Charger AL1814CV Brasil 127-220V 10,8-18V
6532607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
6532607226283Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
6532607226289Fast Charger Lam GAL18V-20
6552609110342Screwdriver Blade
8022609120395DC motor 18V
8081600A00YL9Nameplate
8081600A00Z22Nameplate
8082609133591Nameplate
8082609135289Nameplate
8082609135917Nameplate
92609133407Manufacturer's nameplate GSR 1800-LI
92609133587Manufacturer's nameplate TSR 1800-LI
911607A350JRBattery Pack GBA 18V 1.5AH
912607336683Battery Pack 18V 1,3AH
912607336753Slide-In Accu Package
