Bosch GSR 18 VE-2

Bosch GSR 18 VE-2 batt-oper screwdriver: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 18 VE-2: 20 positions on 1 sheet

Bosch GSR 18 VE-2 parts list (1 sheet)

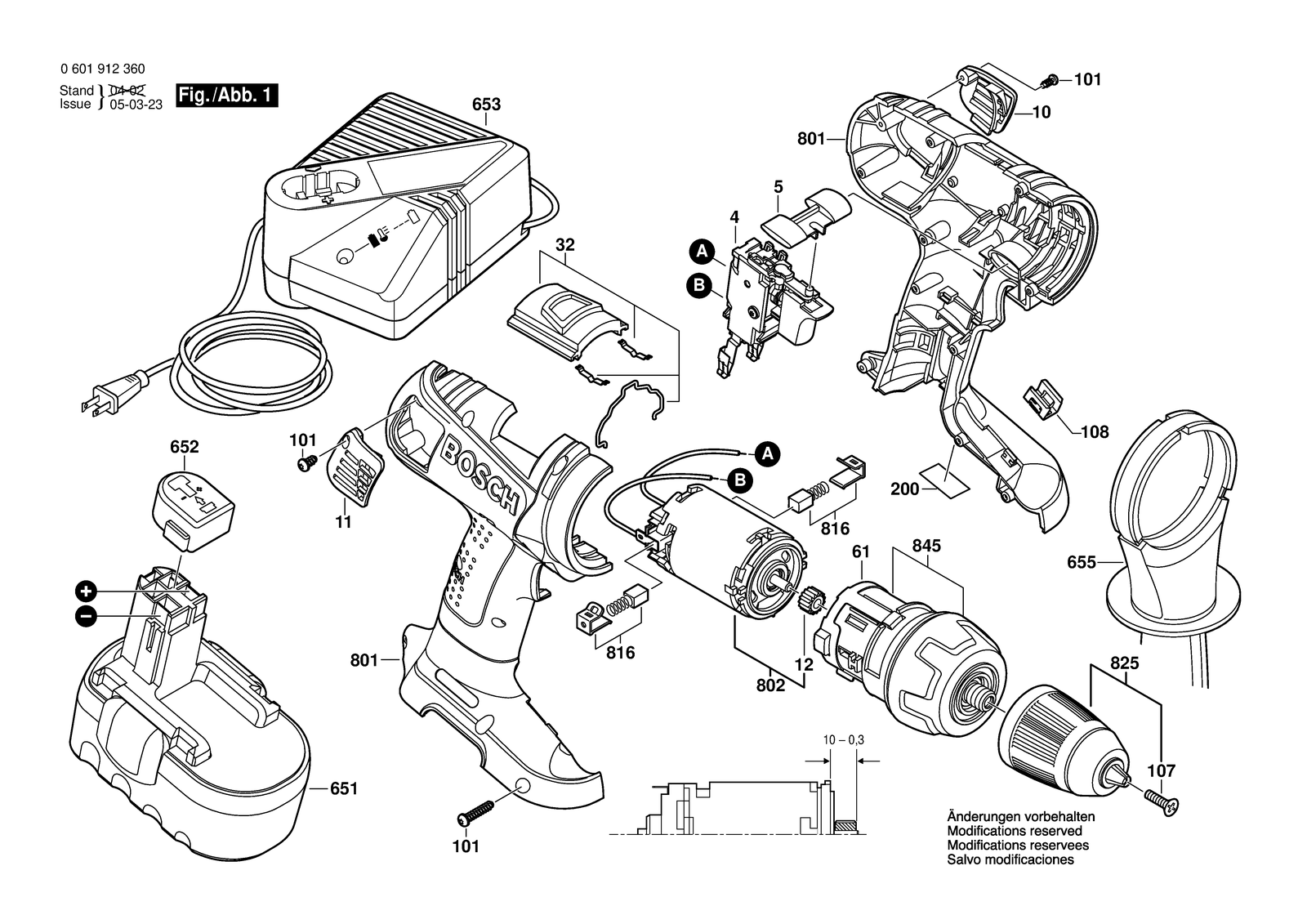

Bosch GSR 18 VE-2 parts diagram, sheet 1
No.Part numberPart name
102600508051Cover Black
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1082604690027Spring Element
112600508052Cover Black
122606316223Pinion
2002601116194Reference Plate
322601099127Adjusting Slide
42607200457On-Off Switch
52601099112Adjusting Slide Red
612608040190Support
6512607335717Accumulator package 18V,2,4AH, Hd
6522609100101Protective Cap
6532607225033Fast Charger USA 120/7,2-24V, 30 Min.
6552602025135Auxiliary Handle
8012605105917Housing Section Blue
8022607022865DC motor 18V
8162607034904Carbon-Brush Set
8252608572900Keyless Chuck
8452606200930Planetary Gear Train
