Bosch GSR 18 V-LI

Bosch GSR 18 V-LI cordless drill driver: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 18 V-LI: 25 positions on 1 sheet

Bosch GSR 18 V-LI parts list (1 sheet)

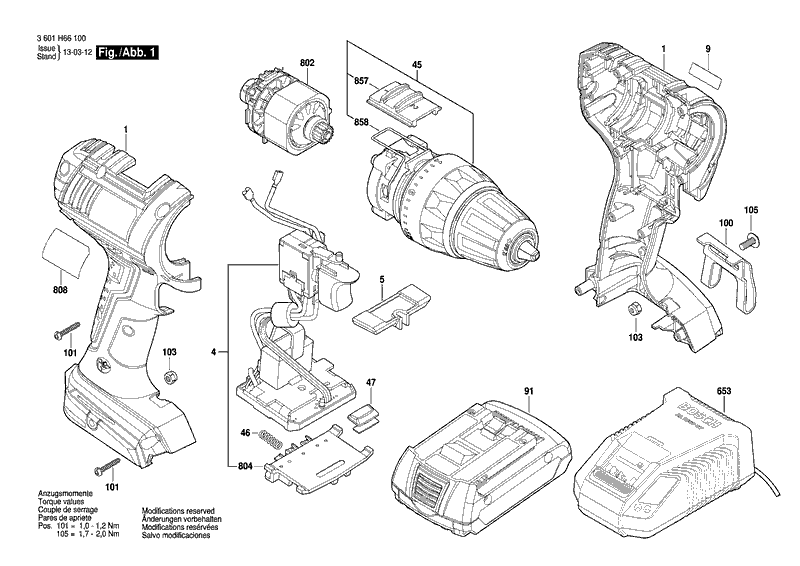

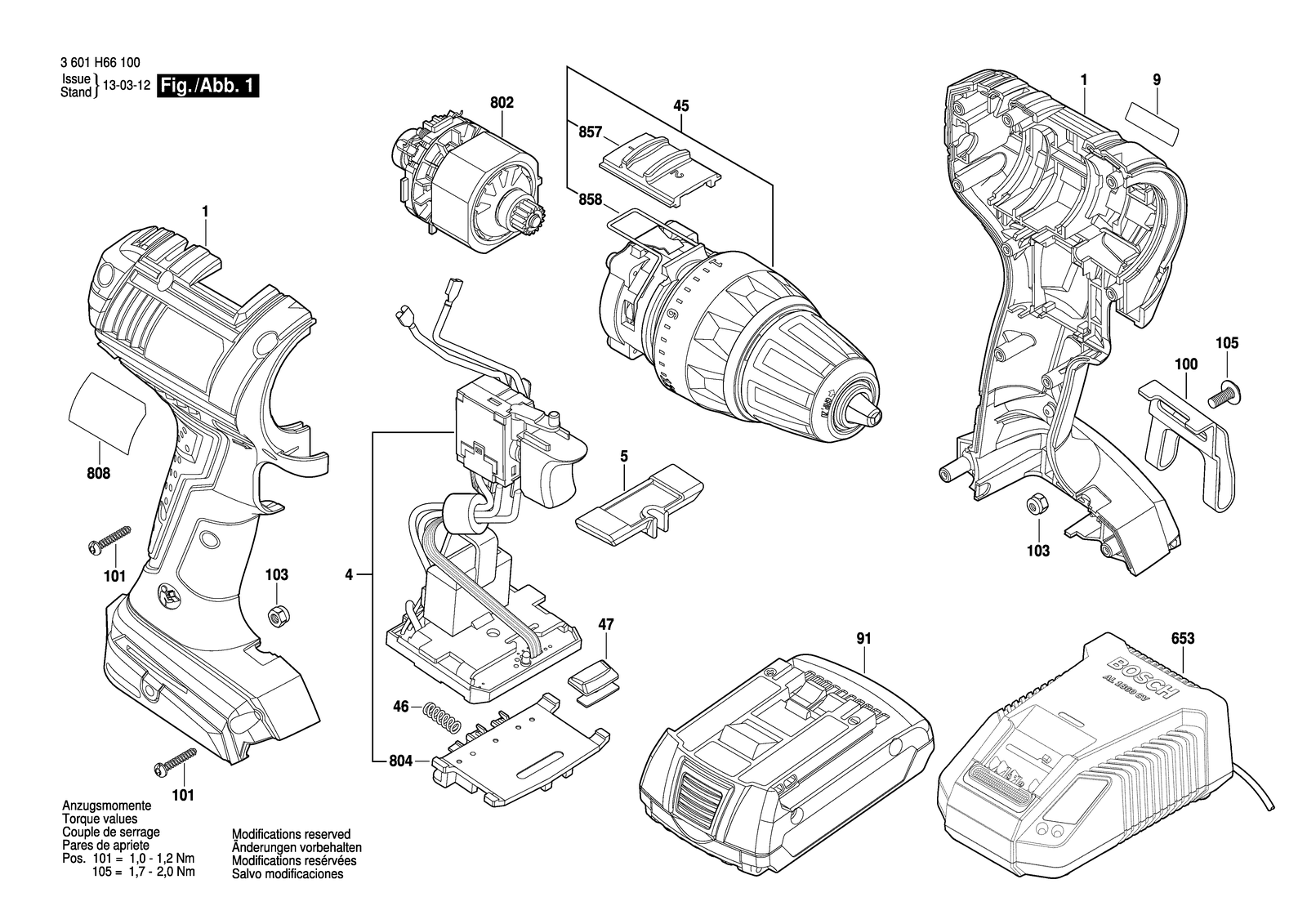

Bosch GSR 18 V-LI parts diagram, sheet 1
No.Part numberPart name
12609100856Housing
1002609110956Clip
1012609110353Torx Oval-Head Screw
1032609110835Nut
1052609110834Screw
41607233492Electronics Module
452609199296Gear Box
461609280477Compression Spring
472609100858Lens
52609100859Adjusting lever
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225427Fast Charger AUS 240/10,8-18V, 1H
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6532607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
6532607226283Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
8022609199359DC motor 18V
8041609280478Contact retainer
8081600A00Z1NNameplate
8572609100897Switch Slide
8582609111078Switch Spring
92609132911Manufacturer's nameplate GSR 18V-LI
911607A350B2Battery Pack 18V 3.0AH LI Scm
911607A350JRBattery Pack GBA 18V 1.5AH
911607A350M0Battery Pack GBA 18V 4.0AH
