Bosch GSR 14,4V-EC

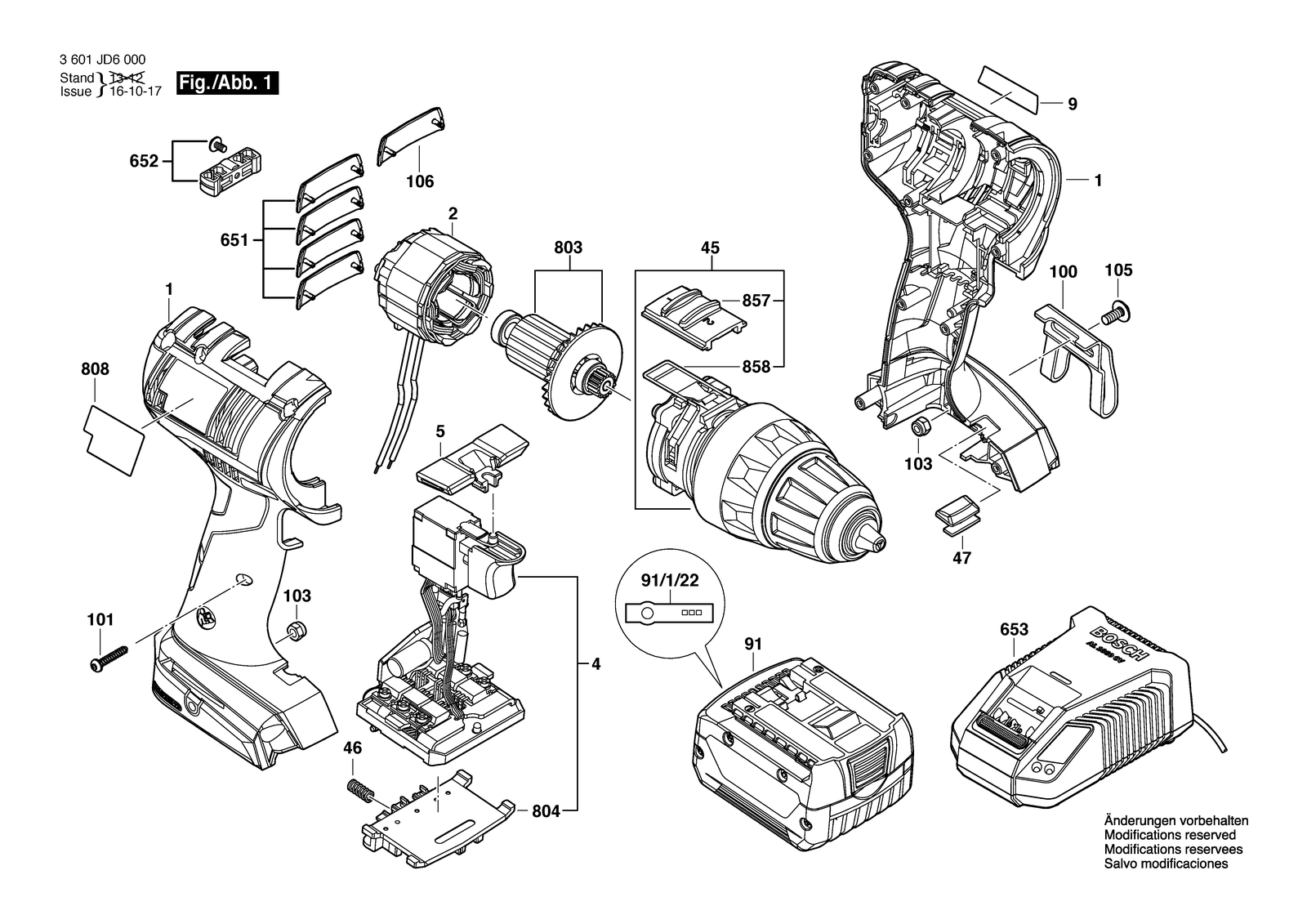

Bosch GSR 14,4V-EC cordless drill driver: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 14,4V-EC: 24 positions on 1 sheet
Bosch GSR 14,4V-EC parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101226 | Housing |
| 100 | 2609110956 | Clip |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 103 | 2609110835 | Nut |
| 105 | 2609110834 | Screw |
| 106 | 2609101409 | Color clip |
| 2 | 1619P08134 | Stator 14,4V |
| 4 | 1600A001BD | Electronic Module |
| 45 | 2609111566 | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 47 | 2609100858 | Lens |
| 5 | 2609101227 | Adjusting lever |
| 651 | 2609199746 | Color clip |
| 652 | 2609199748 | Bit holder |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 803 | 2609199671 | Rotor 14,4-18V |
| 804 | 1609280474 | Contact retainer |
| 808 | 1600A00Z29 | Nameplate |
| 857 | 2609101293 | Switch Slide |
| 858 | 2609111078 | Switch Spring |
| 9 | 2609134760 | Manufacturer's nameplate GSR 14,4 V-Ec |
| 91 | 2607336813 | Battery Pack Bbs-Mr Xl-Pack 14,4V, Li, 4,0 Ah |
| 91/1/22 | 2601115537 | Sticker |
