Bosch GSR 14,4 VE-2 batt-oper screwdriver: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 14,4 VE-2: 27 positions on 1 sheet

Bosch GSR 14,4 VE-2 parts list (1 sheet)

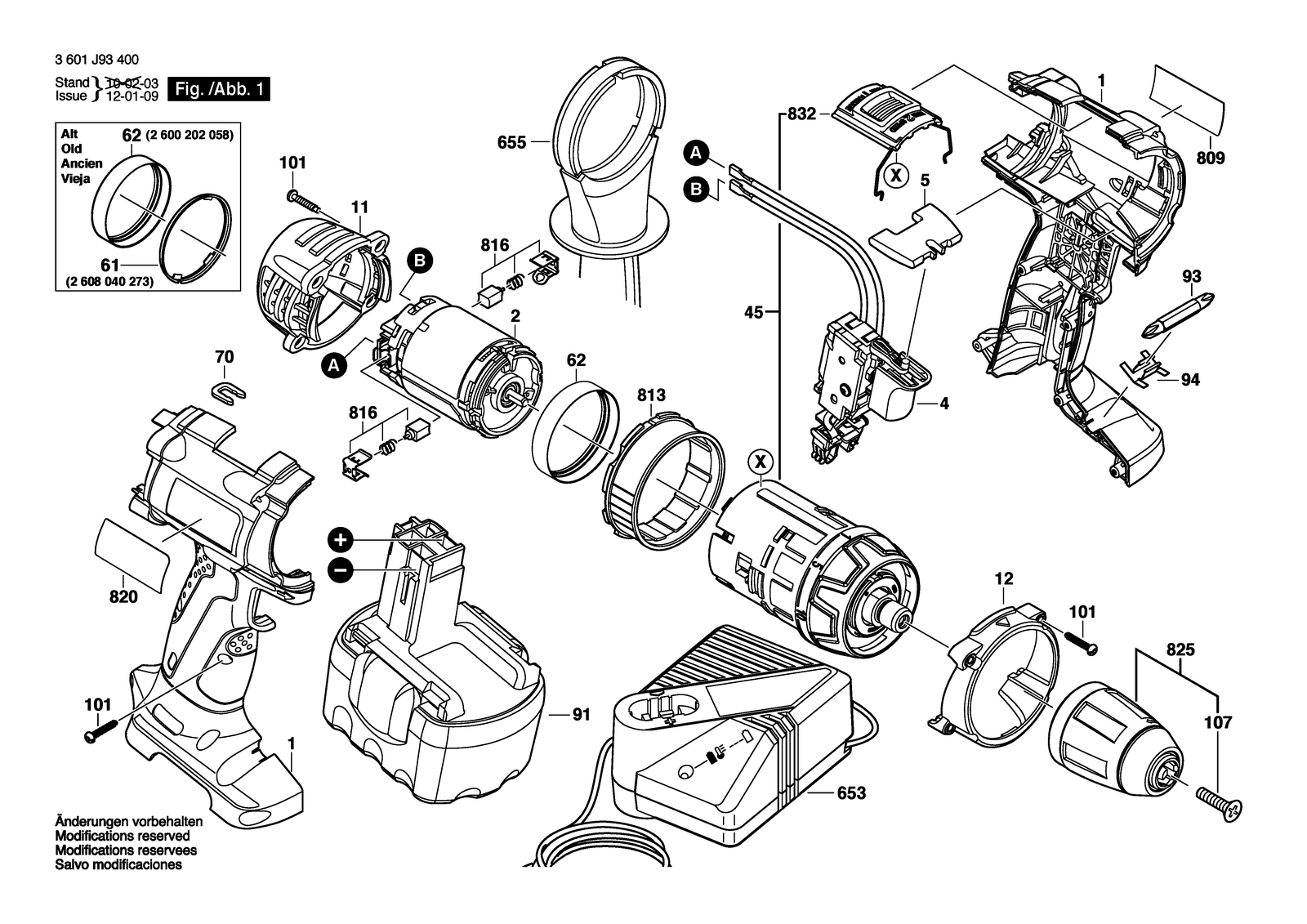

Bosch GSR 14,4 VE-2 parts diagram, sheet 1
No.Part numberPart name
12605105101Housing Section Blue
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
112600508064End cap Black
122600510011Front Cap
22607022319DC motor 14,4V
42607230121Electronics Module
452606200260Planetary Gear Train
52601099155Adjusting lever Red
622600202067Retaining snap ring
6532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
6532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
6532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
6532607224713Fast Charger ROK 220/7,2-14,4V, 30 Min.
6552602025158Auxiliary Handle
702601250009Pickup Clip
8092601115002Manufacturer's nameplate GSR 14,4 VE-2
8132600510012Locating ring
8161607000488Carbon-Brush Set 10 X 2 607 034 904
8162607034904Carbon-Brush Set
8202601115003Nameplate
8252608572901Keyless Chuck
8322601099213Adjusting lever
912607335685Slide-In Accu Package 14,4V, 2,6AH, Nimh
912607335693Slide-In Accu Package 14,4V,3,0AH,NIMH
931609200147Screwdriver Blade 6 MM
942604690043Spring Element
