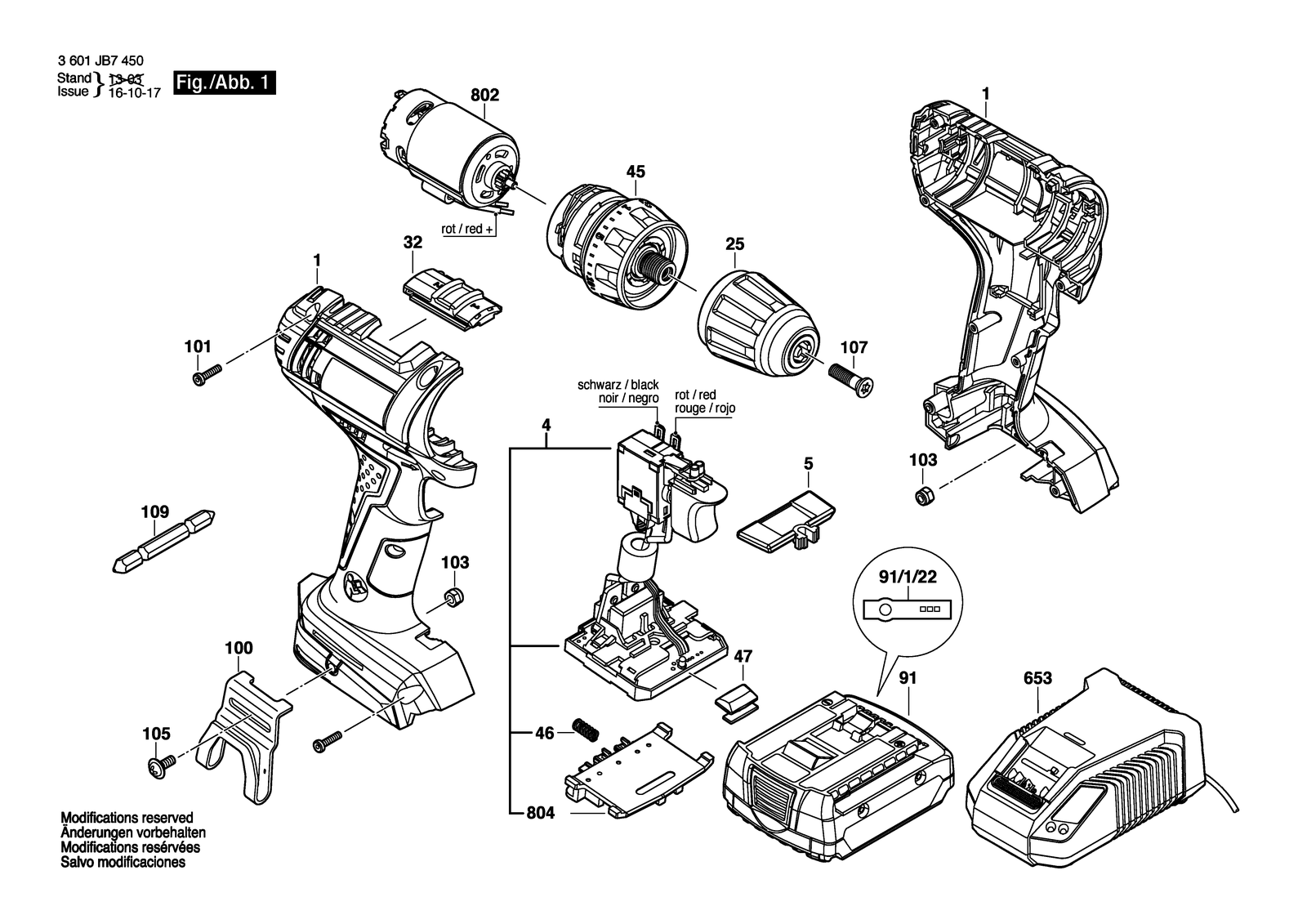

Bosch GSR 14,4-2-LI cordless screwdriver: exploded parts diagram, 1 sheet, 44 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 14,4-2-LI: 44 positions on 1 sheet

Bosch GSR 14,4-2-LI parts list (1 sheet)

Bosch GSR 14,4-2-LI parts diagram, sheet 1
No.Part numberPart name
12609101065Housing Blue
12609101065Housing Blue
1002609110956Clip
1002609110956Clip
1012609110538Screw
1012609110538Screw
1032609110835Nut
1032609110835Nut
1052609110834Screw
1052609110834Screw
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1092609110342Screwdriver Blade
1092609110342Screwdriver Blade
252609111562Keyless Chuck
252609111312Keyless Chuck
322609199279Switchover Unit
322609199279Switchover Unit
41607233543Electronics Module
41607233543Electronics Module
452609199786Gear Box
452609199397Gear Box
461609280477Compression Spring
461609280477Compression Spring
472609100858Lens
472609100858Lens
52609101009Adjusting lever
52609101009Adjusting lever
6532607225435Fast Charger ROK 220/10,8-18V, 1H
6532607225439Fast Charger CN 220/10,8-18V, 1H
6532607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
6532607225431Fast Charger RC 115/10,8-18V, 1H
6532607225435Fast Charger ROK 220/10,8-18V, 1H
6532607226281Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A
6532607226283Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
8022609199591DC motor 14,4V-18V
8022609199626DC motor 14,4V-18V
8041609280474Contact retainer
8041609280474Contact retainer
911607A350B9Battery Pack EU GBA 14.4V 2.0AH LI Scm
911607A350B9Battery Pack EU GBA 14.4V 2.0AH LI Scm
911607A350BABattery Pack Kr GBA 14.4V 2.0AH LI Scm
91/1/222601115537Sticker
91/1/222601115537Sticker
