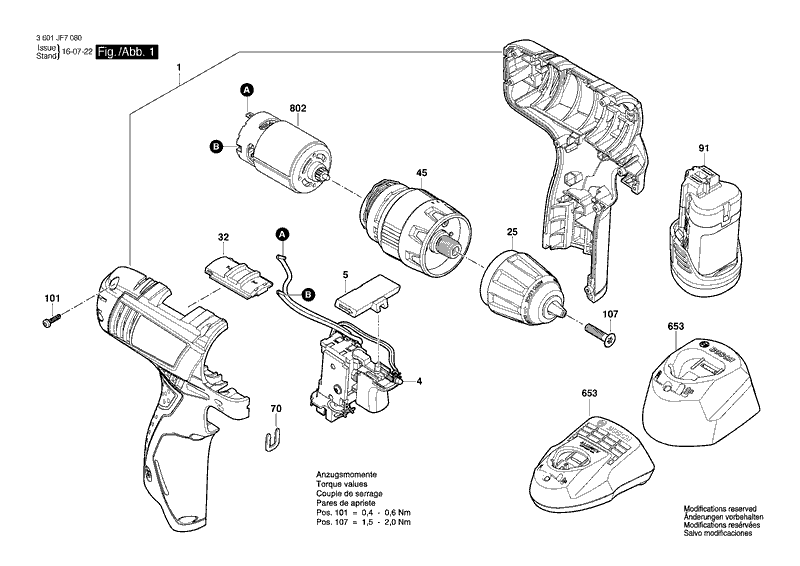

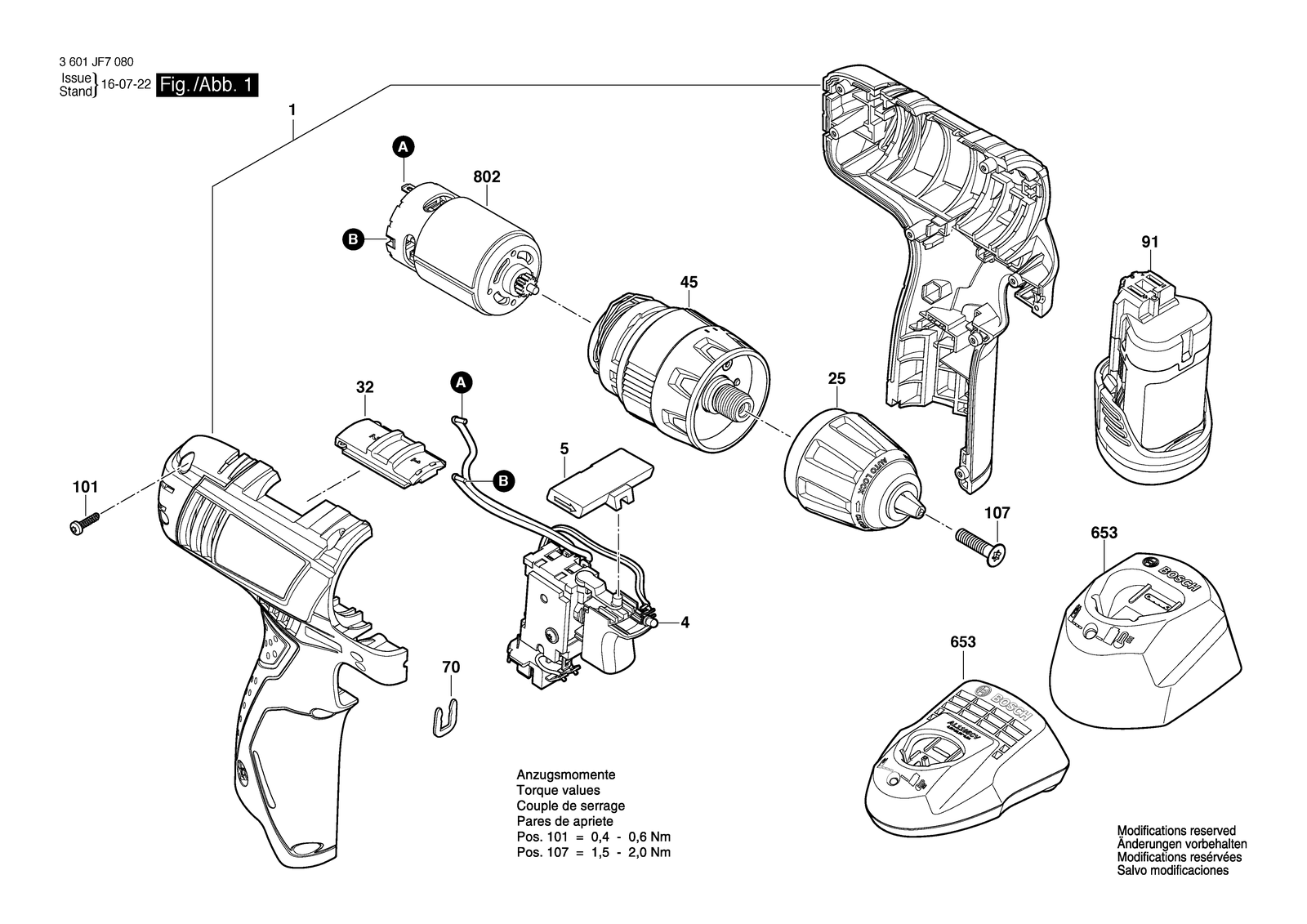

Bosch GSR 120 cordless drill driver: exploded parts diagram, 1 sheet, 19 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 120: 19 positions on 1 sheet
Bosch GSR 120 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101697 | Housing |
| 101 | 2609111496 | Screw |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 25 | 1600A0103S | Keyless Chuck |
| 32 | 2609199279 | Switchover Unit |
| 4 | 2609125169 | Electronics Module |
| 45 | 1600A00F8P | Gear Box |
| 5 | 2609101391 | Adjusting lever |
| 653 | 1600A00HR0 | Fast Charger Cn GAL 1230 CV 220/12 V |
| 653 | 1600A00HR1 | Fast Charger EU GAL 1210 CV 230/12V 1A |
| 653 | 1600A00HR3 | Fast Charger Gb GAL 1210 CV 230/12V 1A |
| 653 | 2607226089 | Fast Charger bi-volt 127 V - 220 V Br AL 115 CV 127-220V/3,6-10,8V |
| 653 | 2607226111 | Fast Charger Tw GAL 1215 CV 115V/3,6-12V |
| 653 | 2607226195 | Fast Charger GAL 12V-20 MEX 115V / 3.6V – 12V / 2A |
| 653 | 2607226205 | Fast Charger GAL 12V-20 ARG 115V / 3.6V – 12V / 2A |
| 70 | 2609110838 | Clip |
| 802 | 1607000C5K | Motor Spare Parts Set |
| 91 | 1607A350C5 | Battery Pack GBA 12V 2.0AH LI Scm |
| 91 | 1607A350DX | Battery Pack Rla GBA 12V 1.5AH LI Scm |
