Bosch GSR 12 VE-2

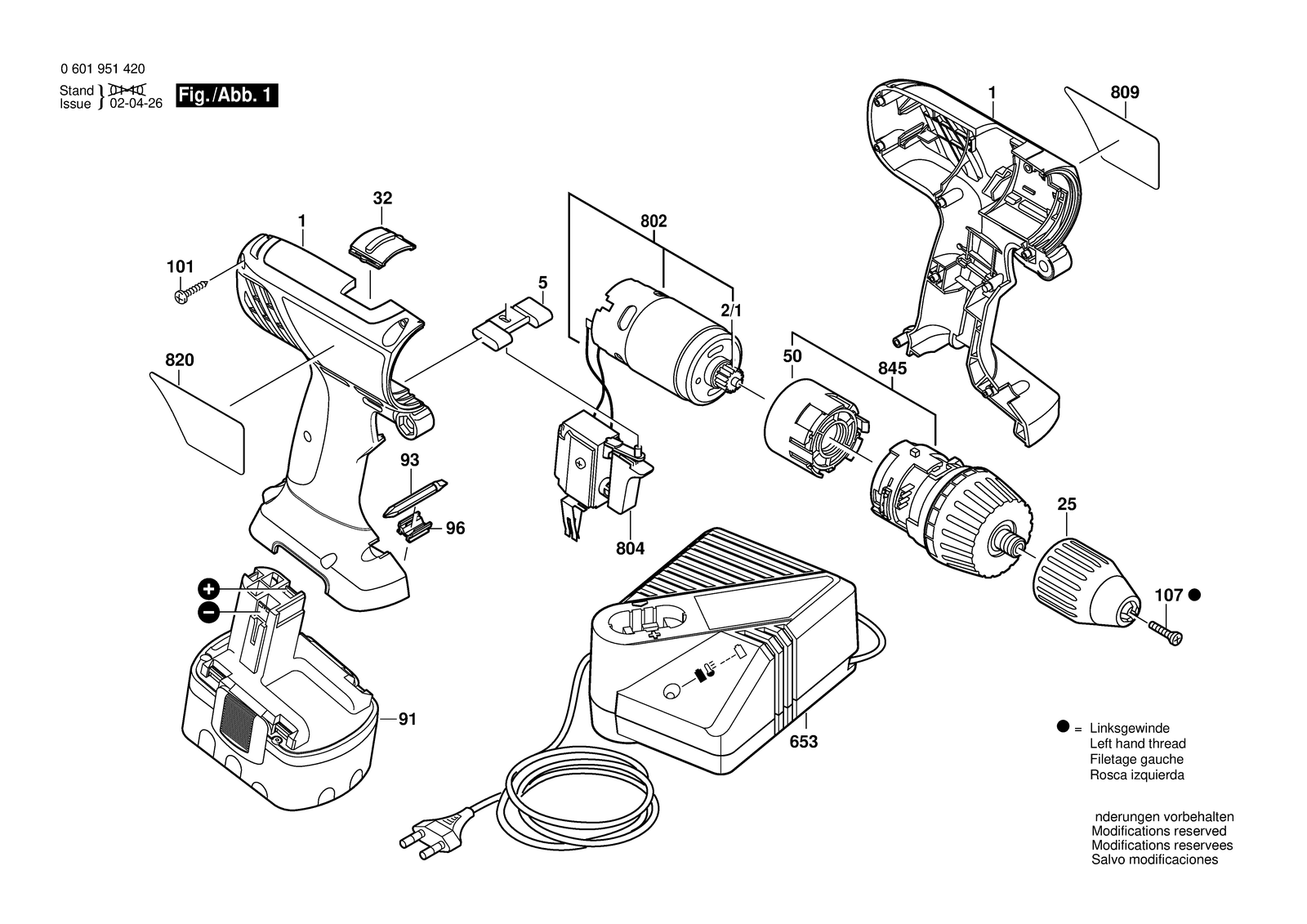

Bosch GSR 12 VE-2 batt-oper screwdriver: exploded parts diagram, 1 sheet, 49 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 12 VE-2: 49 positions on 1 sheet
Bosch GSR 12 VE-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105028 | Housing Section |
| 1 | 2605105027 | Housing Section |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 107 | 2603421008 | Countersunk-Head Screw |
| 107 | 2603421008 | Countersunk-Head Screw |
| 2/1 | 2606316188 | Pinion |
| 2/1 | 2606316188 | Pinion |
| 25 | 2608572160 | Keyless Chuck |
| 25 | 2608572160 | Keyless Chuck |
| 32 | 2601099086 | Adjusting Slide Black |
| 32 | 2601099086 | Adjusting Slide Black |
| 5 | 2601099085 | Adjusting Slide Red |
| 5 | 2601099085 | Adjusting Slide Red |
| 50 | 2605719901 | Intermediate Flange |
| 50 | 2605719901 | Intermediate Flange |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 653 | 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 Min. |
| 653 | 2607224703 | Fast Charger GB 230/7,2-14,4V, 30 Min. |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 653 | 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 Min. |
| 653 | 2607224703 | Fast Charger GB 230/7,2-14,4V, 30 Min. |
| 802 | 2607022877 | DC motor 14,4V |
| 802 | 2607022876 | DC motor 12V |
| 804 | 2607200421 | On-Off Switch |
| 804 | 2607200421 | On-Off Switch |
| 809 | 2601116138 | Manufacturer's nameplate |
| 809 | 2601116988 | Manufacturer's nameplate GSR 1440 |
| 809 | 2601116136 | Manufacturer's nameplate |
| 809 | 2601116544 | Manufacturer's nameplate GSR 12 Profi |
| 809 | 2601116987 | Manufacturer's nameplate GSR 1200 |
| 820 | 2601116139 | Nameplate |
| 820 | 2601116137 | Nameplate |
| 820 | 2601116184 | Nameplate |
| 845 | 2606200917 | Planetary Gear Train |
| 845 | 2606200917 | Planetary Gear Train |
| 91 | 2607335263 | Slide-In Accu Package 14,4V,2,0AH,NICD |
| 91 | 2607335685 | Slide-In Accu Package 14,4V, 2,6AH, Nimh |
| 91 | 2607335699 | Slide-In Accu Package 14,4V, 2,0AH, Nimh |
| 91 | 2607335261 | Slide-In Accu Package 12V,2,0AH,NICD |
| 91 | 2607335683 | Battery Pack 12V,2,6AH,NIMH |
| 91 | 2607335691 | Slide-In Accu Package 12V,3,0AH, Nimh |
| 91 | 2607335697 | Slide-In Accu Package 12V,2,0AH,NIMH |
| 93 | 2608521018 | Screwdriver Blade |
| 93 | 2608521018 | Screwdriver Blade |
| 96 | 2608040131 | Support |
| 96 | 2608040131 | Support |
