Bosch GSR 12 V

Bosch GSR 12 V cordless drill driver: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 12 V: 32 positions on 1 sheet

Bosch GSR 12 V parts list (1 sheet)

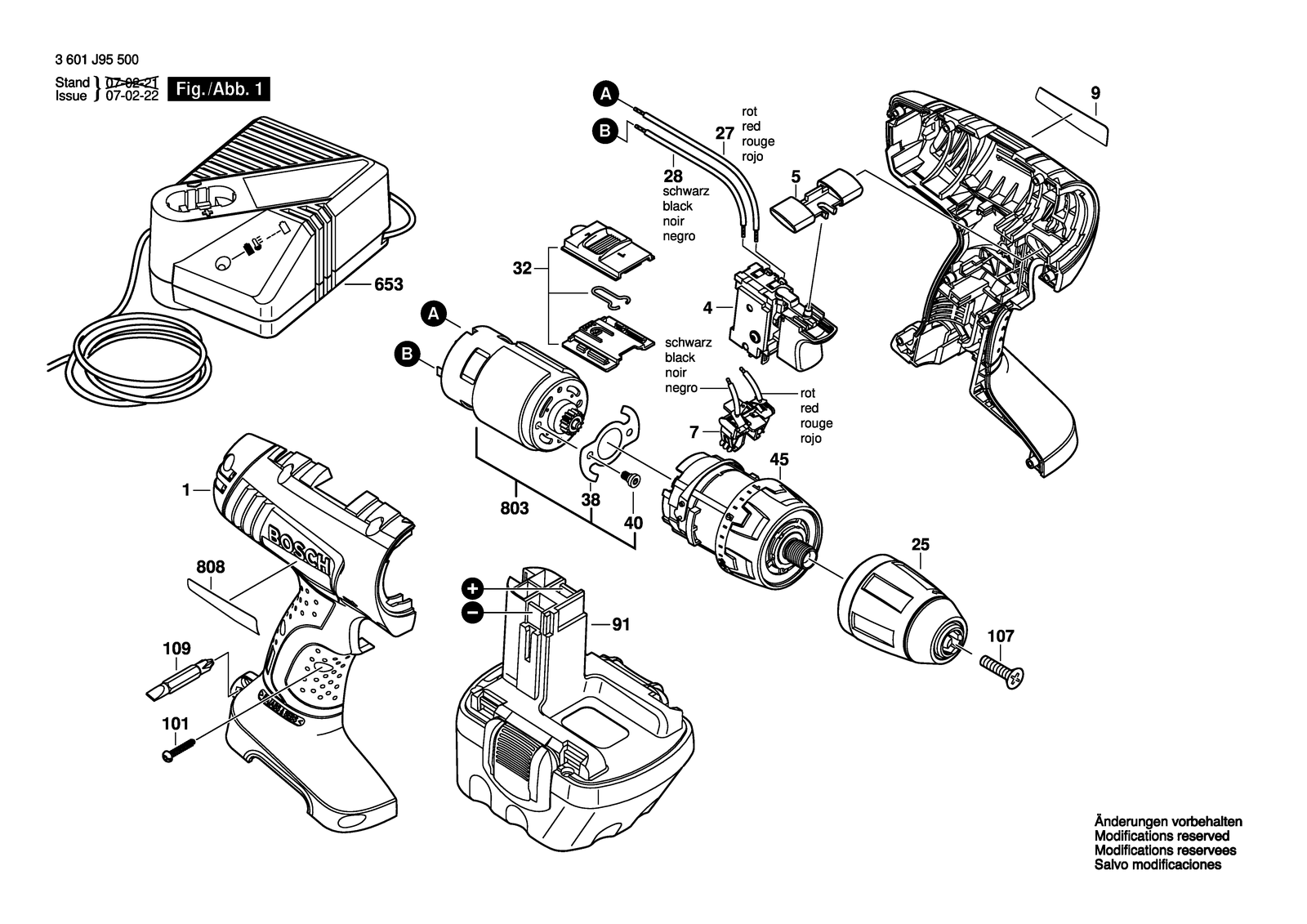

Bosch GSR 12 V parts diagram, sheet 1
No.Part numberPart name
12609100501Housing
1012609110201Torx Flat-Head Screw 3X16
1072609110635Pan head screw M 6X30
1092609160063Screwdriver Bit
251600A00XH5Keyless Chuck
252609110660Keyless Chuck 10 MM
272609120264Connecting Cable Red
282609120263Connecting Cable Black
322609199119Slide Switch
382609110633Tab Washer
42607202014Switch Black
402609110634Screw
452609199343Planetary Gear Train
52609100504Reverse-Transfer Lever
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224429Fast Charger AUS 240/7,2-24V, 1H
6532607224493Fast Charger J 100/7,2-24V, 15 Min.
6532607225495Fast Charger CN 220/7,2-24V, 1H
72609199125Contact retainer Red
8032609199126DC motor 12V
8082609131298Nameplate
8082609131936Nameplate
8082609135897Nameplate
8082609135899Nameplate
92609131281Manufacturer's nameplate GSR 12
92609131439Manufacturer's nameplate GSR 12
911617S00N7FSlide-In Accu Package 12V, 1,5AH, Nicd
912607335261Slide-In Accu Package 12V,2,0AH,NICD
912607335691Slide-In Accu Package 12V,3,0AH, Nimh
912607335697Slide-In Accu Package 12V,2,0AH,NIMH
912607335741Slide-In Accu Package 12V, 2,0AH,NICD
