Bosch GSR 12 V

Bosch GSR 12 V cordless drill driver: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 12 V: 23 positions on 1 sheet

Bosch GSR 12 V parts list (1 sheet)

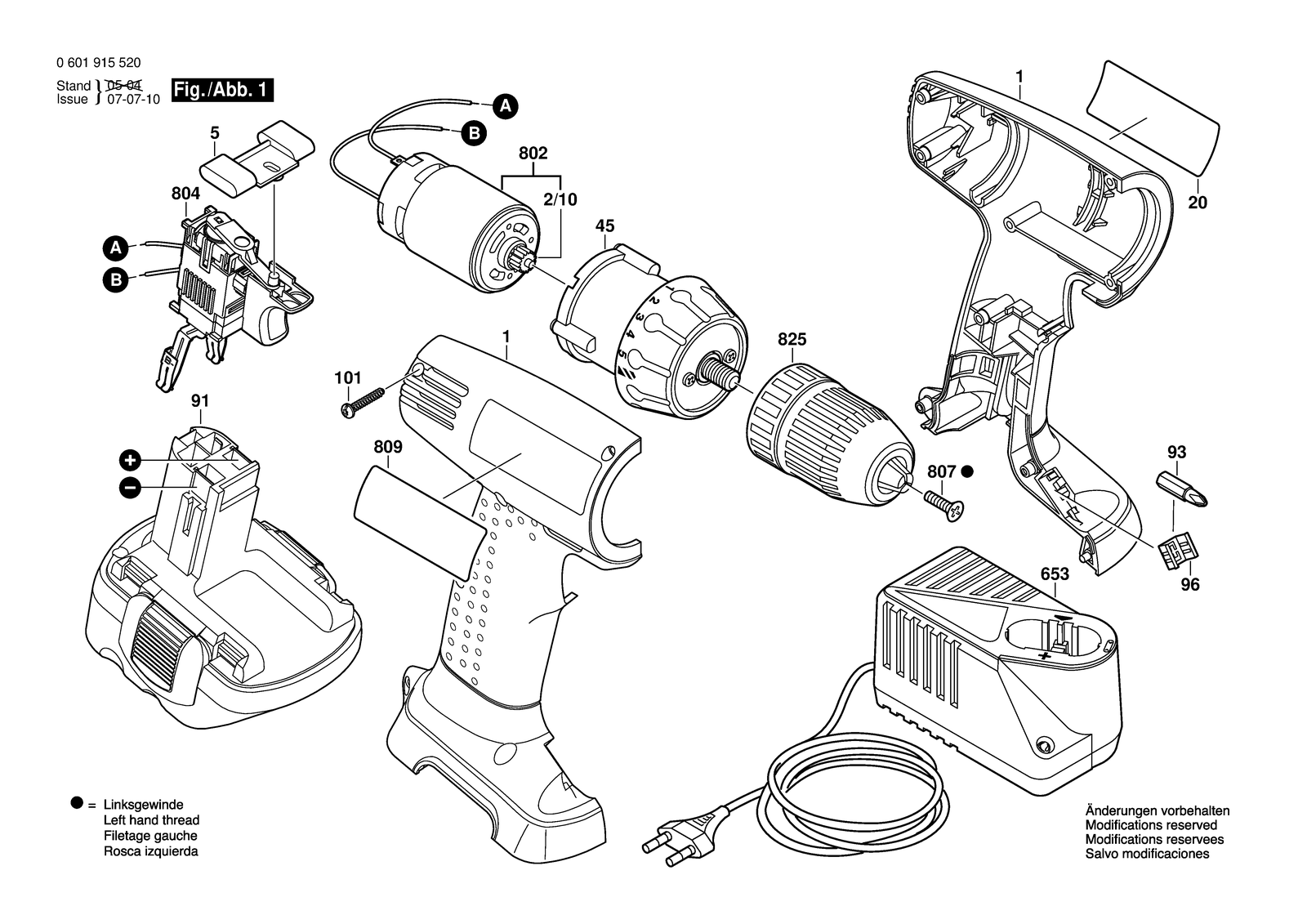

Bosch GSR 12 V parts diagram, sheet 1
No.Part numberPart name
12605105002Motor Housing
1012603490018Torx Oval-Head Screw 3X18
2/102606316229Pinion
201619P00116Manufacturer's nameplate GSR 7,2-1
452606200090Planetary Gear Train
52601099055Adjusting Slide Red
6532607224393Fast Charger GB 230/7,2-14,4V, 1H
6532607224397Fast Charger USA 120/7,2-14,4V, 1H
6532607224401Fast Charger ROK 220/7,2-14,4V, 1H
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224687Fast Charger AR 230/7,2-14,4V, 1H
6532607224727Fast Charger CN 220/7,2-14,4V, 1H
6532607224977Fast Charger BR 127/7,2-14,4V, 1H
6532607224979Fast Charger BR 220/7,2-14,4V, 1H
8021619P00141DC motor 12V
8042607200463On-Off Switch
8072609110721Countersunk-Head Screw M5X20
8091619P00952Nameplate
8251619P01024Keyless Chuck 0,8-10 MM
911617S00N7FSlide-In Accu Package 12V, 1,5AH, Nicd
912607335441Slide-In Accu Package 12V,1,2AH,NICD
932607000366Screwdriver Bit
962604690030Bit holder
