Bosch GSR 1000

Bosch GSR 1000 cordless drill driver: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 1000: 22 positions on 1 sheet

Bosch GSR 1000 parts list (1 sheet)

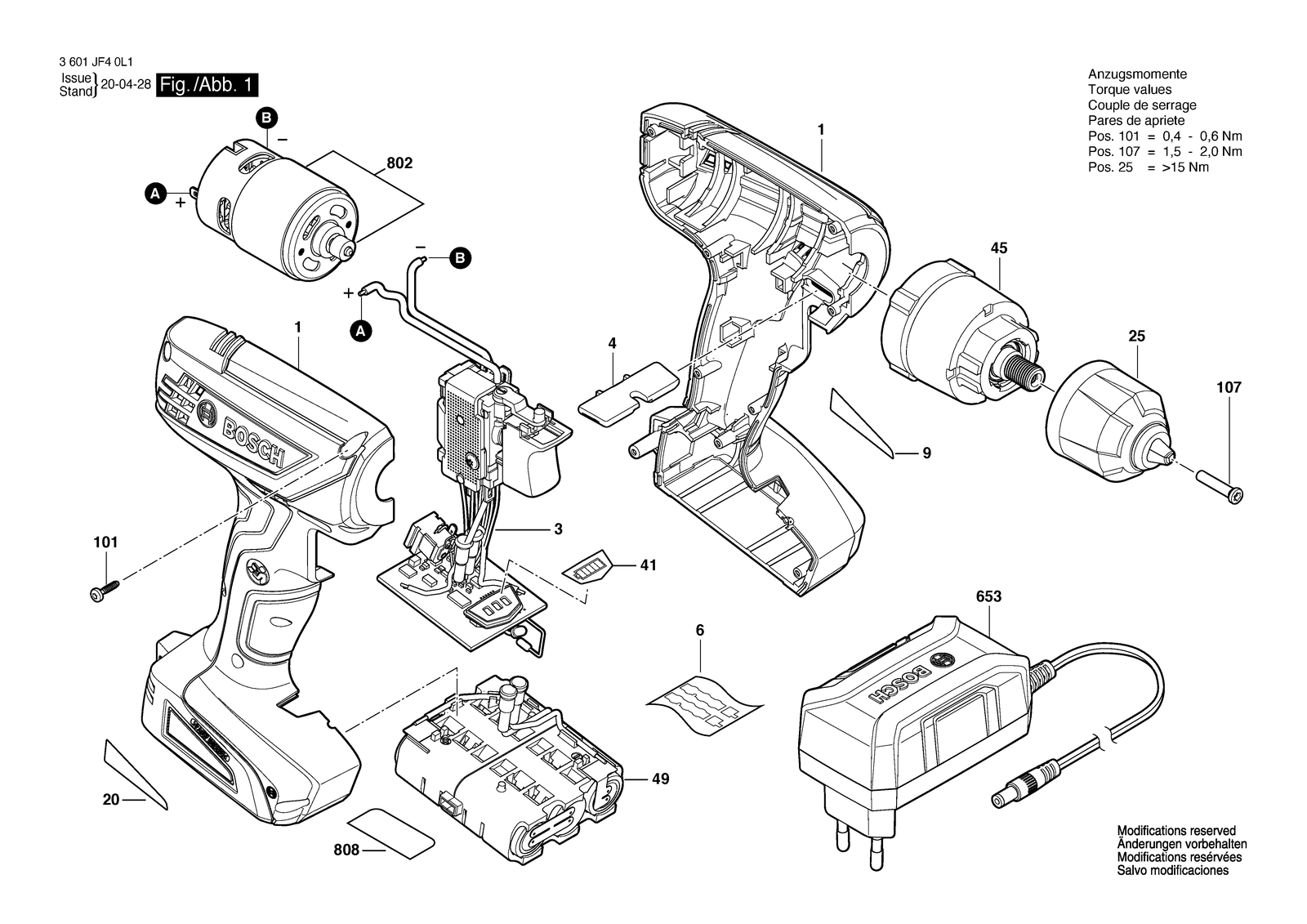

Bosch GSR 1000 parts diagram, sheet 1
No.Part numberPart name
12609101446Housing
1012609111496Screw
1072609110804Countersunk-Head Screw
202609136431Manufacturer's nameplate GSR 1000
202609136433Manufacturer's nameplate
252609111930Chuck
31600A020RAElectronics Module
42609101589Adjusting lever
412609136343Sticker
452609199790Gear Box
491607000E3MBattery Set
61600A0210VSticker
6531600A0204LCharger
6531600A0204MCharger
6531600A0204NCharger
6531600A0204PCharger
8022609199956Motor Spare Parts Set
808160111A7R2Nameplate
808160111A7R3Nameplate
808160111A851Nameplate
92609136432Manufacturer's nameplate GSR 1000
92609136434Manufacturer's nameplate
