Bosch GSR 1000

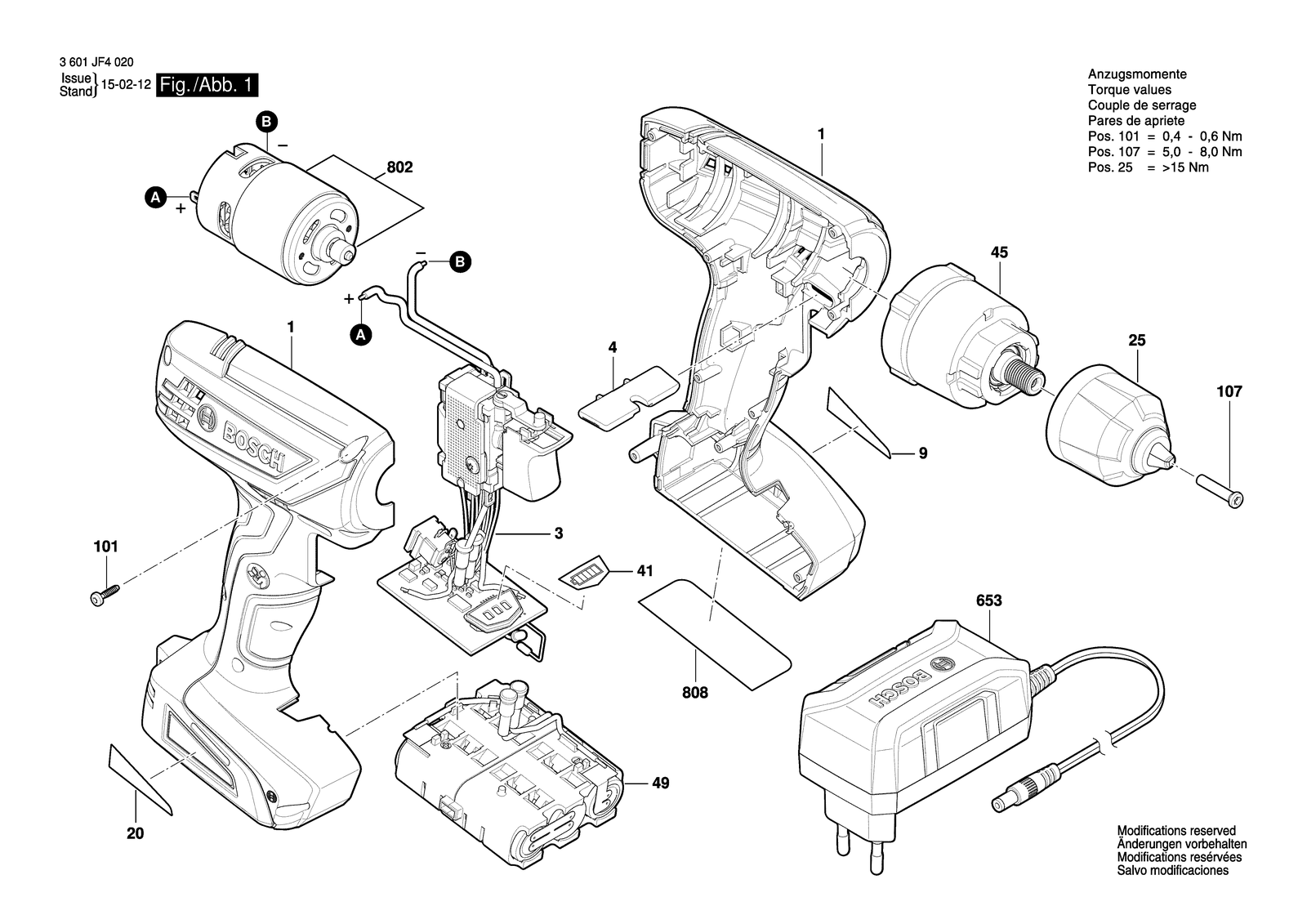

Bosch GSR 1000 cordless drill driver: exploded parts diagram, 1 sheet, 15 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 1000: 15 positions on 1 sheet
Bosch GSR 1000 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101446 | Housing |
| 101 | 2609111496 | Screw |
| 107 | 2609110804 | Countersunk-Head Screw |
| 20 | 2609136431 | Manufacturer's nameplate GSR 1000 |
| 25 | 2609111930 | Chuck |
| 3 | 1600A00FG7 | Electronics Module |
| 4 | 2609101589 | Adjusting lever |
| 41 | 2609136343 | Sticker |
| 45 | 2609199790 | Gear Box |
| 49 | 2609199926 | Battery Set |
| 653 | 1600A008BR | Charger GB 230/10,8V 15 Min. |
| 653 | 1600A008BS | Charger EU 230/10,8V 15 Min. |
| 802 | 2609199956 | Motor Spare Parts Set |
| 808 | 160111A5LG | Nameplate |
| 9 | 2609136432 | Manufacturer's nameplate GSR 1000 |
