Bosch GSR 10.8V-35

Bosch GSR 10.8V-35 cordless drill driver: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 10.8V-35: 31 positions on 1 sheet

Bosch GSR 10.8V-35 parts list (1 sheet)

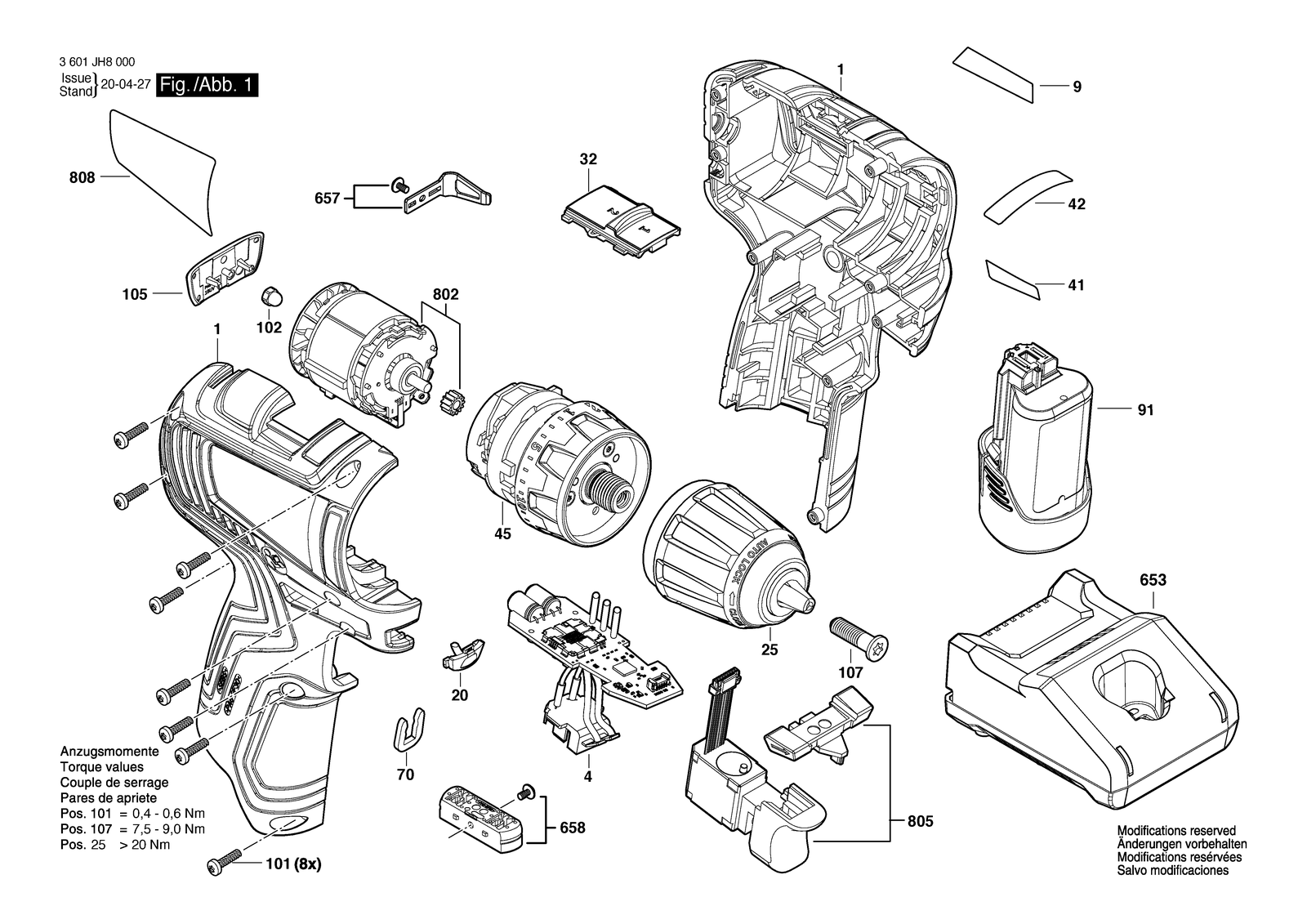

Bosch GSR 10.8V-35 parts diagram, sheet 1
No.Part numberPart name
11600A013ZKHousing
1012609110883Screw
1021600A016R4Cap Nut
1051600A018UVColor clip
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
201600A016R3Lens
251600A029D0Keyless Chuck
321600A013HKSwitchover Unit
416072335HJElectronic Module
41160111C2MPSticker
42160111C2NESticker
451600A015WEGear Box
6532607226219Fast Charger EU GAL 12V-40
6532607226221Fast Charger GAL 12V-40 220V-240V 10,8-12V 4A
6532607226229Fast Charger Jp GAL 12V-40
6532607226231Fast Charger Rok GAL 12V-40
6532607226537Fast Charger Ind GAL 18V-40 220-240V / 4A
6571600A0247PClip
6581600A020HNBit holder
702609110537Clip
8021600A01M97Brushless DC motor
8051607000E1TSwitch
808160111A69HNameplate
808160111A6RDNameplate
808160111A6RENameplate
808160111A743Nameplate
9160111C2RJManufacturer's nameplate
9160111C301Manufacturer's nameplate
911607A3506ABattery Pack GBA 12V 3,0 Ah LI
911607A3506DBattery Pack GBA 10,8V 3,0 Ah LI Rok
911607A3506EBattery Pack GBA 10,8V 3,0 Ah LI J
