Bosch GSR 10,8 V-LI

Bosch GSR 10,8 V-LI batt-oper screwdriver: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 10,8 V-LI: 18 positions on 1 sheet

Bosch GSR 10,8 V-LI parts list (1 sheet)

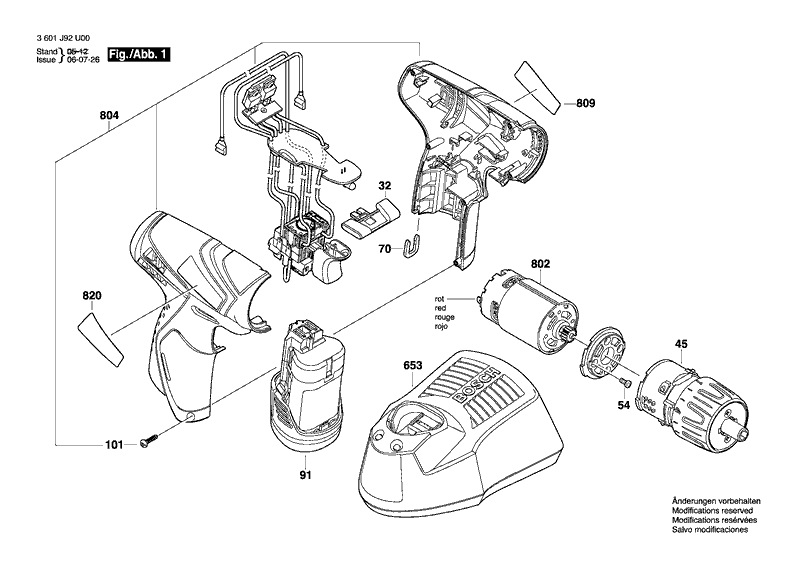

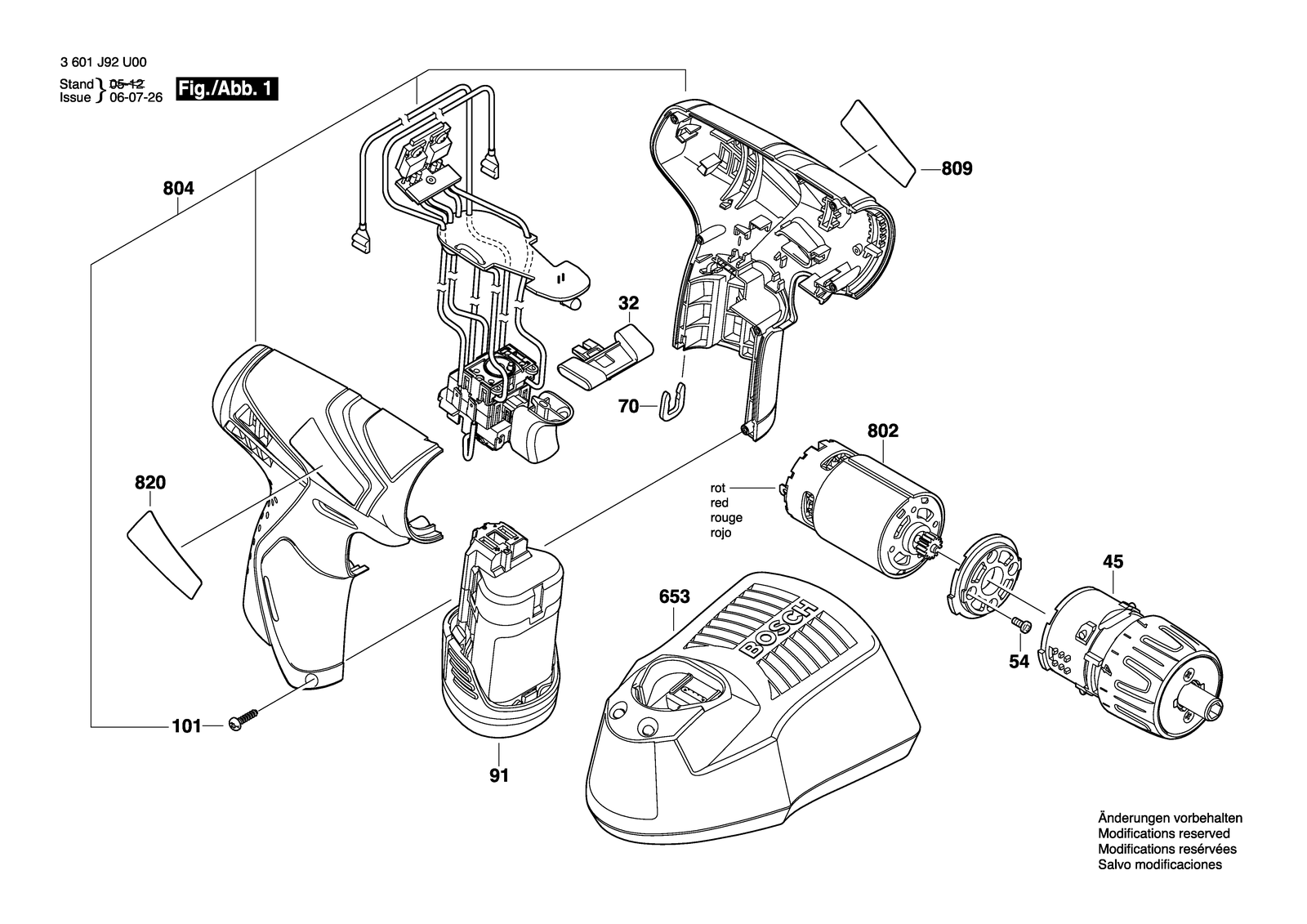

Bosch GSR 10,8 V-LI parts diagram, sheet 1
No.Part numberPart name
1012603415205Torx Oval-Head Screw
322601099153Adjusting Slide Red
452606200186Planetary Gear Train
452606200201Planetary Gear Train
542603414048Torx SH cap screw M3X5-8.8-Z
6532607225135Fast Charger UK AL1130CV 230V/12V/3A
6532607225137Fast Charger AUS 240/10,8V
6532607225141Fast Charger SAM 115/10,8V, 30 Min.
6532607225143Fast Charger J 100/10,8V, 30 Min.
6532607226101Fast Charger EU GAL 1230 CV 230/12V
6532607226201Fast Charger Br GAL 12V-20, 127V-220V
702601250009Pickup Clip
8022607022840DC motor 10,8V
8042607233073Electronics Module
8092601116979Manufacturer's nameplate GSR 10.8 V-Li
8202601115208Nameplate
8202601116980Nameplate
912607336663Slide-In Accu Package 10,8V, 1,3AH, LI
