Bosch GSR 10,8 V-LI

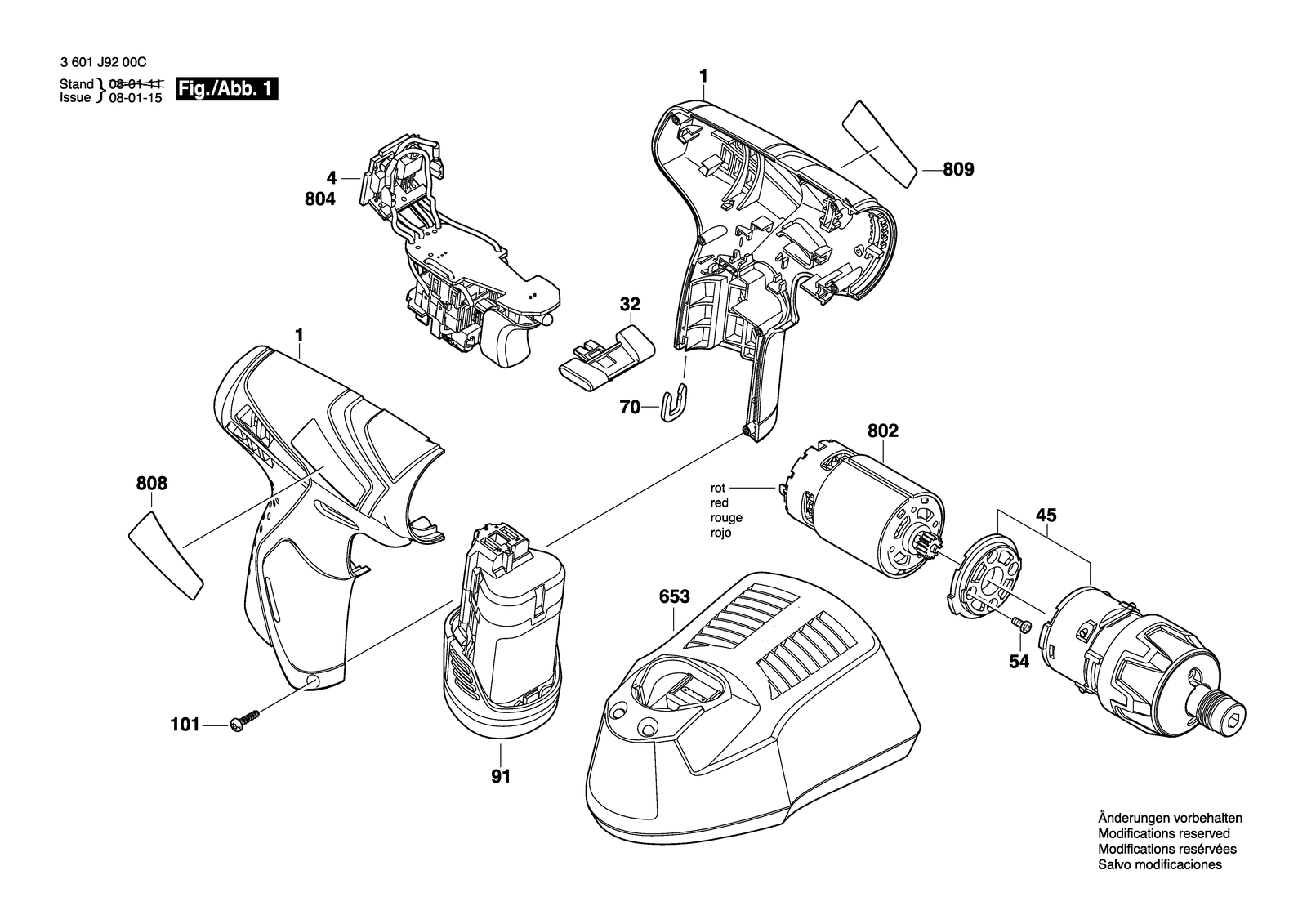

Bosch GSR 10,8 V-LI cordless drill driver: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 10,8 V-LI: 18 positions on 1 sheet
Bosch GSR 10,8 V-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100564 | Housing Blue |
| 101 | 2603415206 | Torx Oval-Head Screw |
| 32 | 2601099153 | Adjusting Slide Red |
| 4 | 1607233352 | Electronic Module |
| 4 | 1607233505 | Electronics Module |
| 45 | 2606200229 | Planetary Gear Train |
| 54 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 653 | 2607225135 | Fast Charger UK AL1130CV 230V/12V/3A |
| 653 | 2607225141 | Fast Charger SAM 115/10,8V, 30 Min. |
| 653 | 2607226101 | Fast Charger EU GAL 1230 CV 230/12V |
| 653 | 2607226201 | Fast Charger Br GAL 12V-20, 127V-220V |
| 70 | 2609110537 | Clip |
| 802 | 2607022838 | DC motor 10,8V |
| 808 | 2609131871 | Nameplate |
| 808 | 2609131873 | Nameplate |
| 808 | 2609135887 | Nameplate |
| 809 | 2601116979 | Manufacturer's nameplate GSR 10.8 V-Li |
| 91 | 1607A350C5 | Battery Pack GBA 12V 2.0AH LI Scm |
