Bosch GSR 10,8 V-EC LI cordless drill driver: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 10,8 V-EC LI: 16 positions on 1 sheet

Bosch GSR 10,8 V-EC LI parts list (1 sheet)

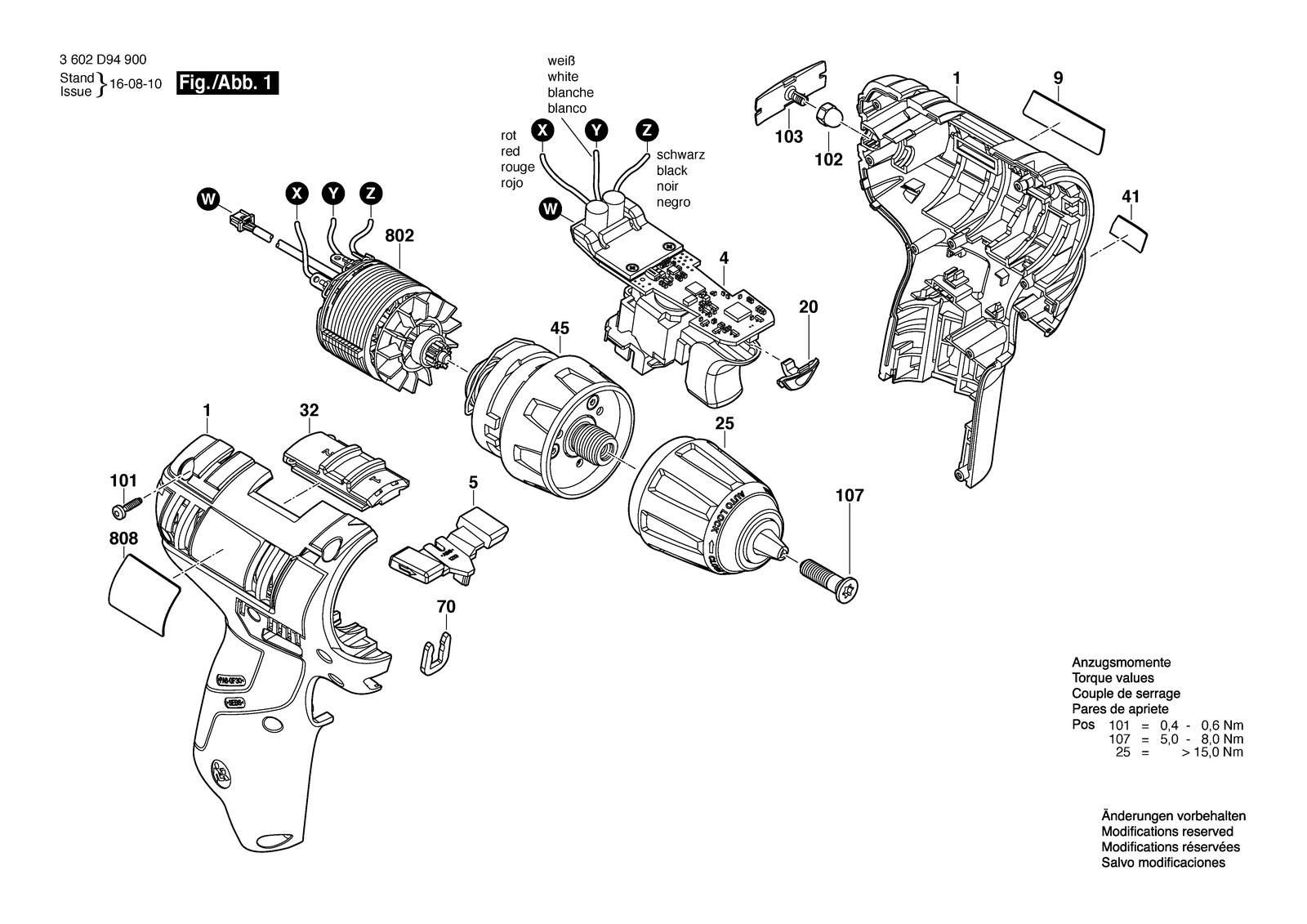

Bosch GSR 10,8 V-EC LI parts diagram, sheet 1
No.Part numberPart name
12609101246Housing
1012609110883Screw
1022609111575Cap Nut
1032609101229Color clip
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
202609101035Lens
252609111562Keyless Chuck
322609199279Switchover Unit
416072335A0Electronic Module
412609134053Sticker
452609199605Gear Box
52609101213Changeover Lever
702609110537Clip
8022609199654Brushless DC motor 10,8V
8082609136009Nameplate
92609134564Manufacturer's nameplate GSR 10,8 V-Ec
