Bosch GSR 10,8 V-EC

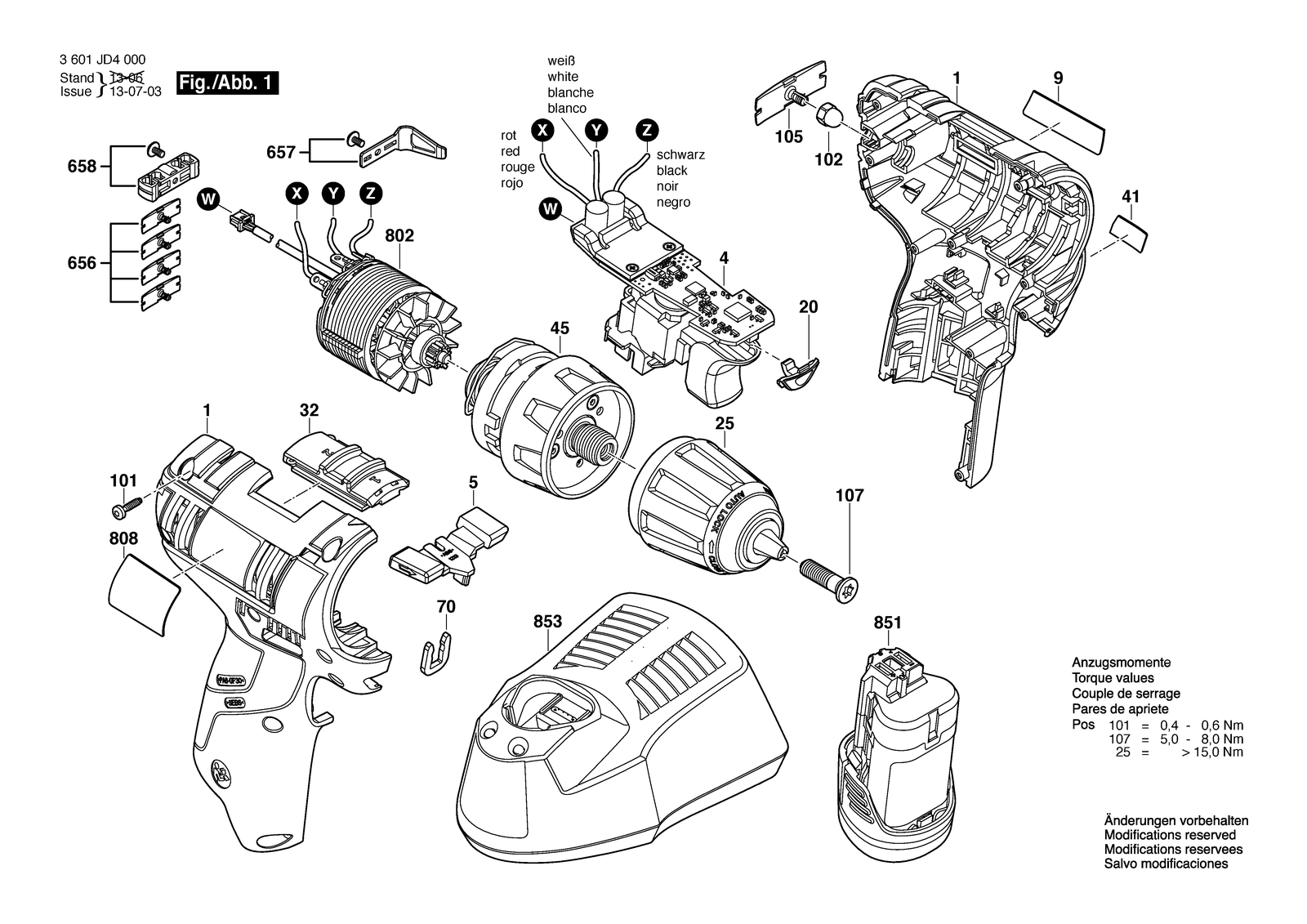

Bosch GSR 10,8 V-EC cordless drill driver: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSR 10,8 V-EC: 21 positions on 1 sheet
Bosch GSR 10,8 V-EC parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101216 | Housing |
| 101 | 2609110883 | Screw |
| 102 | 2609111575 | Cap Nut |
| 105 | 2609101368 | Color clip |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 20 | 2609101035 | Lens |
| 25 | 2609111562 | Keyless Chuck |
| 32 | 2609199279 | Switchover Unit |
| 4 | 16072335A0 | Electronic Module |
| 41 | 2609134053 | Sticker |
| 45 | 2609199605 | Gear Box |
| 5 | 2609101213 | Changeover Lever |
| 656 | 2609199669 | Color clip |
| 657 | 2609199670 | Clip |
| 658 | 2609199748 | Bit holder |
| 70 | 2609110537 | Clip |
| 802 | 2609199654 | Brushless DC motor 10,8V |
| 808 | 2609135980 | Nameplate |
| 851 | 1607A3506A | Battery Pack GBA 12V 3,0 Ah LI |
| 851 | 1607A350C5 | Battery Pack GBA 12V 2.0AH LI Scm |
| 9 | 2609134564 | Manufacturer's nameplate GSR 10,8 V-Ec |
