Bosch GSN 90-34-DK

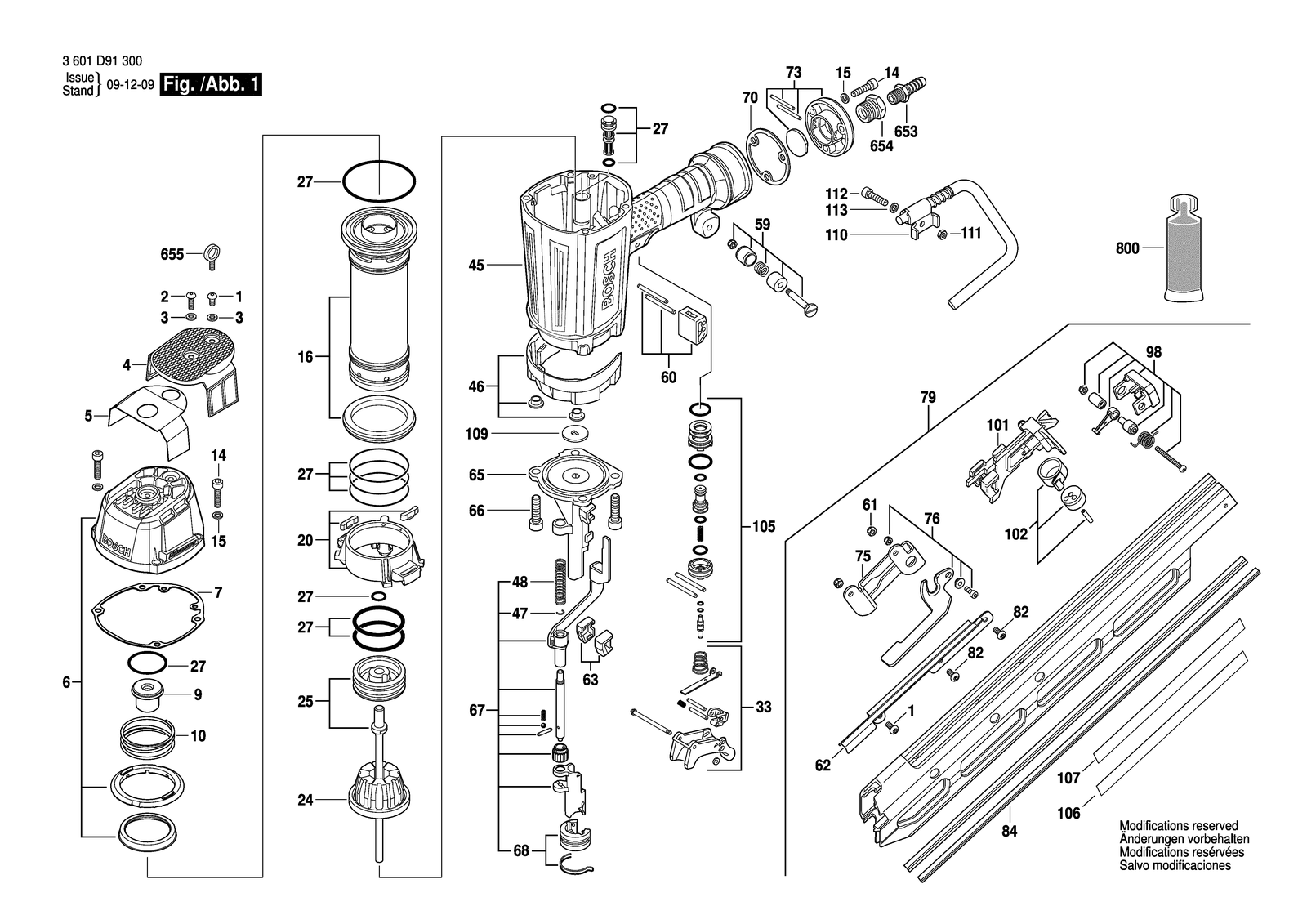

Bosch GSN 90-34-DK pneumatic nailgun: exploded parts diagram, 1 sheet, 102 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSN 90-34-DK: 102 positions on 1 sheet
Bosch GSN 90-34-DK parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610001663 | Screw |
| 1 | 2610001663 | Screw |
| 10 | 2610001671 | Compression Spring |
| 10 | 2610001671 | Compression Spring |
| 101 | 2610005256 | Follower |
| 101 | 2610005256 | Follower |
| 102 | 2610001705 | Follower Spring |
| 102 | 2610001705 | Follower Spring |
| 105 | 2610001706 | Trigger |
| 105 | 2610001706 | Trigger |
| 106 | 1601118S44 | Nameplate |
| 106 | 2610015533 | Nameplate |
| 107 | 2610011089 | Warning Label |
| 107 | 2610015532 | Warning Label |
| 109 | 2610005259 | Lead-Seal Plate |
| 109 | 2610005259 | Lead-Seal Plate |
| 110 | 2610008549 | Hook |
| 110 | 2610008549 | Hook |
| 111 | 2610005245 | Lock Nut |
| 111 | 2610005245 | Lock Nut |
| 112 | 2610006326 | Screw |
| 112 | 2610006326 | Screw |
| 113 | 2610005312 | Washer |
| 113 | 2610005312 | Washer |
| 14 | 2610001673 | Screw |
| 14 | 2610016575 | Screw |
| 15 | 2610001674 | Washer |
| 15 | 2610001674 | Washer |
| 16 | 2610001675 | Piston Cylinder |
| 16 | 2610016576 | Cylinder Assembly Kit |
| 2 | 2610001664 | Screw |
| 2 | 2610001664 | Screw |
| 20 | 2610001676 | Cylinder Support |
| 20 | 2610016577 | Retainer |
| 24 | 2610001677 | Bumper |
| 24 | 2610001677 | Bumper |
| 25 | 2610005242 | Piston |
| 25 | 2610016578 | Piston assembly |
| 27 | 2610001679 | O-Ring |
| 27 | 2610001679 | O-Ring |
| 3 | 2610001665 | Washer |
| 3 | 2610001665 | Washer |
| 33 | 2610001680 | Trigger |
| 33 | 2610001680 | Trigger |
| 4 | 2610001666 | Cover Plate |
| 4 | 2610001666 | Cover Plate |
| 45 | 2610001682 | Housing |
| 45 | 2610001682 | Housing |
| 46 | 2610001683 | Cover |
| 46 | 2610001683 | Cover |
| 47 | 2610001684 | Spring Clip |
| 47 | 2610001684 | Spring Clip |
| 48 | 2610005243 | Coil Spring |
| 48 | 2610005243 | Coil Spring |
| 5 | 2610001667 | Mat seal |
| 5 | 2610001667 | Mat seal |
| 59 | 2610005244 | Hub |
| 59 | 2610005244 | Hub |
| 6 | 2610001668 | Cylinder Cover |
| 6 | 2610001668 | Cylinder Cover |
| 60 | 2610001687 | Guide Block |
| 60 | 2610001687 | Guide Block |
| 61 | 2610005245 | Lock Nut |
| 61 | 2610005245 | Lock Nut |
| 62 | 2610005246 | Magazine cover |
| 62 | 2610005246 | Magazine cover |
| 63 | 2610005247 | Rubber Pad |
| 63 | 2610005247 | Rubber Pad |
| 65 | 2610005248 | Nose |
| 65 | 2610016579 | Nose |
| 653 | 1600A00080 | Fitting |
| 653 | 1600A00080 | Fitting |
| 655 | 2610011088 | Eye Bolt |
| 655 | 2610011088 | Eye Bolt |
| 66 | 2610001692 | Screw |
| 66 | 2610001692 | Screw |
| 67 | 2610005249 | Contacting element |
| 67 | 2610016580 | Contacting element |
| 68 | 2610001694 | Protective Guard |
| 68 | 2610001694 | Protective Guard |
| 7 | 2610001669 | Mat seal |
| 7 | 2610001669 | Mat seal |
| 70 | 2610001695 | Mat seal |
| 70 | 2610001695 | Mat seal |
| 73 | 2610001696 | End cap |
| 73 | 2610001696 | End cap |
| 75 | 2610005250 | Mounting Bracket |
| 75 | 2610005250 | Mounting Bracket |
| 76 | 2610001698 | Release Lever |
| 76 | 2610001698 | Release Lever |
| 79 | 2610005251 | Nail cartridge |
| 79 | 2610016581 | Nail cartridge |
| 800 | 2610005257 | Grease |
| 800 | 2610005257 | Grease |
| 82 | 2610005252 | Screw |
| 82 | 2610005252 | Screw |
| 84 | 2610005254 | Wearing Strip |
| 84 | 2610005254 | Wearing Strip |
| 9 | 2610001670 | Bumper |
| 9 | 2610001670 | Bumper |
| 98 | 2610005255 | Locking assembly |
| 98 | 2610005255 | Locking assembly |
