Bosch GSM 200 D

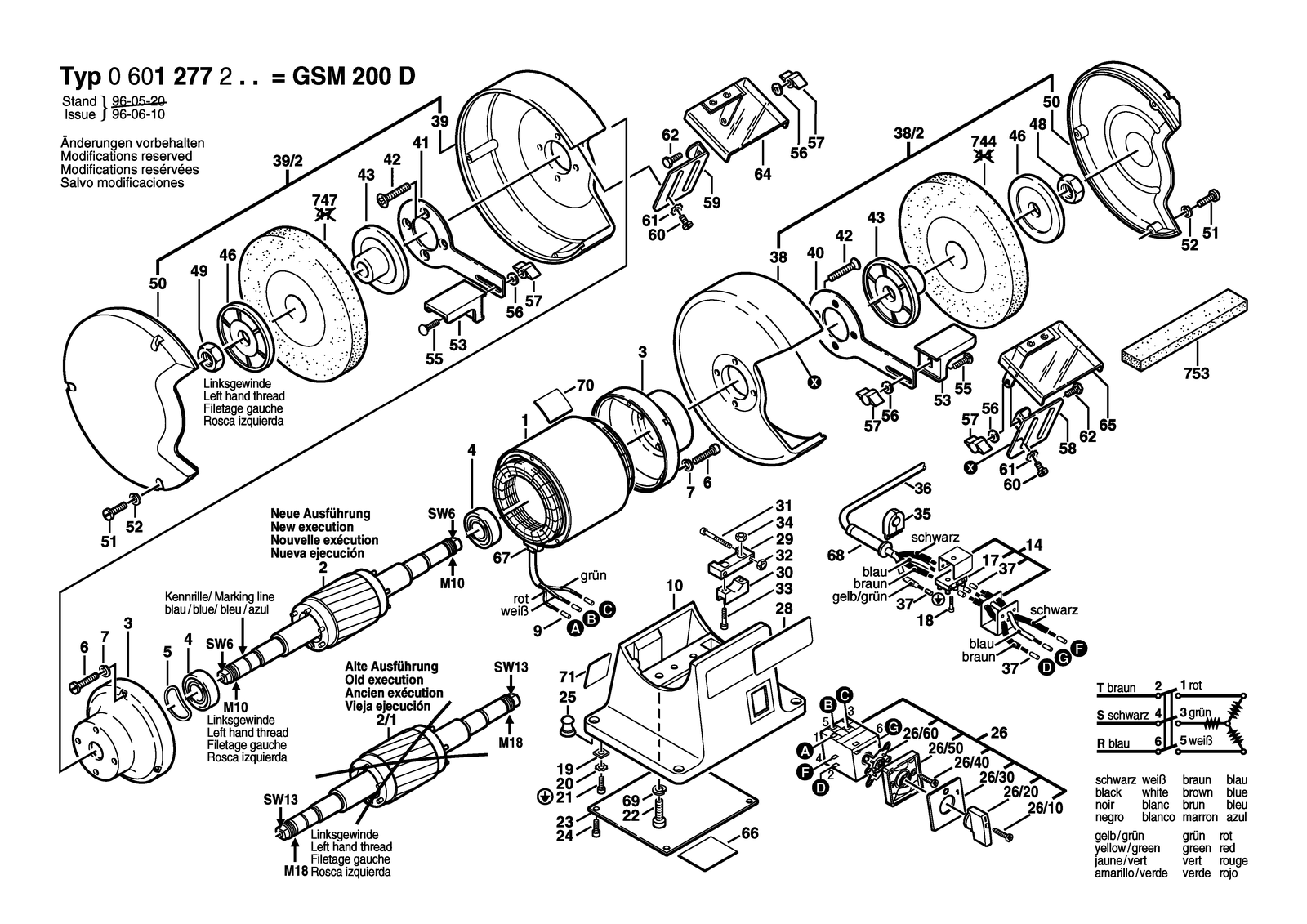

Bosch GSM 200 D bench grinder: exploded parts diagram, 1 sheet, 75 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSM 200 D: 75 positions on 1 sheet
Bosch GSM 200 D parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609203284 | Stator 230V |
| 10 | 1609203226 | Base Plate |
| 14 | 1609203287 | Connecting Cable |
| 17 | 1609203290 | Socket-Terminal Strip |
| 18 | 2910011058 | Socket head cap screw DIN 84-AM3X14-5.8 |
| 19 | 1609203238 | Clamping Plate |
| 2 | 1609203649 | Rotor 230V |
| 20 | 2916030006 | Toothed lock washer DIN 6797-A4,3-FST |
| 21 | 2910001118 | Socket head cap screw DIN 84-AM4X8-4.8 |
| 22 | 2910022197 | Socket head cap screw DIN 84-M 6X16-8.8 |
| 23 | 1609203239 | Base Plate |
| 24 | 2910011120 | Socket head cap screw DIN 84-AM4X10-5.8 |
| 25 | 1609203240 | Rubber Base |
| 26 | 1609203291 | Rotary Switch |
| 28 | 1601118396 | Manufacturer's nameplate |
| 29 | 1609203243 | Clamping Plate |
| 3 | 1609203298 | End Shield |
| 30 | 1609203244 | Clamping Plate |
| 31 | 2910011064 | Socket head cap screw DIN 84-AM3X25-5.8 |
| 32 | 2915011003 | Hex Nut DIN 934-M 3-M-8 |
| 33 | 2910021130 | Socket head cap screw DIN 84-AM4X20-8.8 |
| 34 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 35 | 1609203245 | Cable Passage |
| 36 | 1609203292 | Power supply cord |
| 36 | 1609203312 | Power supply cord |
| 36 | 1609203313 | Power supply cord |
| 37 | 1609203247 | End Splice |
| 38 | 1609203278 | Protective Cover |
| 38 | 1609203642 | Protective Cover |
| 38/2 | 1609203643 | Protective Cover |
| 39 | 1609203279 | Protective Cover |
| 39 | 1609203644 | Protective Cover |
| 39/2 | 1609203645 | Protective Cover |
| 4 | 1900905124 | Groove ball bearing 20X42X12 |
| 40 | 1609203276 | Connecting Carrier |
| 41 | 1609203302 | Connecting Carrier |
| 42 | 2912341203 | Countersunk-Head Screw DIN 965-M6X25-8.8-Z |
| 43 | 1609203252 | Clamping Flange |
| 46 | 1609203253 | Counterflange Ø18 MM |
| 46 | 1609203640 | Counterflange Ø 10 MM |
| 48 | 2915011010 | Hex Nut DIN 934-M 10-M-8 |
| 48 | 2915011014 | Hex Nut DIN 934 M18-8-A |
| 49 | 1609203299 | Hex Nut Lefthand Threads M18 |
| 49 | 1609203621 | Hex Nut M10 |
| 5 | 1609203230 | Corrugated Washer |
| 50 | 1609203282 | Lateral Guard |
| 50 | 1609203647 | Lateral Guard |
| 51 | 2910021126 | Socket head cap screw DIN 84-AM4X16-8.8 |
| 52 | 2916681005 | Spring Lock Washer B 4 DIN 127 |
| 53 | 1609203300 | Support Plate |
| 55 | 2910281201 | Round-Head Bolt DIN 603-M6X20 |
| 56 | 2916011013 | Plain Washer DIN 433-6,4-ST 50 |
| 57 | 1609203258 | Wing Nut |
| 58 | 1609203259 | Guard Plate |
| 59 | 1609203260 | Guard Plate |
| 6 | 2910011166 | Socket head cap screw DIN 84-BM5X30-5.8 |
| 60 | 2910021152 | Socket head cap screw DIN 84-AM5X10-8.8 |
| 61 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 62 | 2911051195 | Hex Screw ISO-4017-M6X14-5.6 |
| 64 | 1609203261 | Protective Glass |
| 65 | 1609203295 | Protective Glass |
| 66 | 1601118386 | Reference Plate |
| 67 | 1609203293 | Seal |
| 68 | 1609203296 | Grommet |
| 69 | 2916690005 | Spring Lock Washer M6 |
| 7 | 2916690004 | Spring Lock Washer DIN 128-A5-FST |
| 70 | 1601118388 | Reference Plate |
| 71 | 1601118393 | Nameplate |
| 71 | 1601118419 | Nameplate |
| 71 | 1601118420 | Nameplate |
| 744 | 2608600106 | Grinding Wheel Ø200X25X32MM, C 50 |
| 744 | 2608600111 | Grinding Wheel Ø200X25X32 Mm, A 36 |
| 747 | 2608600112 | Grinding Wheel Ø200X25X32 Mm, A 60 |
| 753 | 1607929000 | Whetstone |
| 9 | 1609203247 | End Splice |
