Bosch GSI 14 CE
Bosch GSI 14 CE satin-finisher: exploded parts diagram, 2 sheets, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

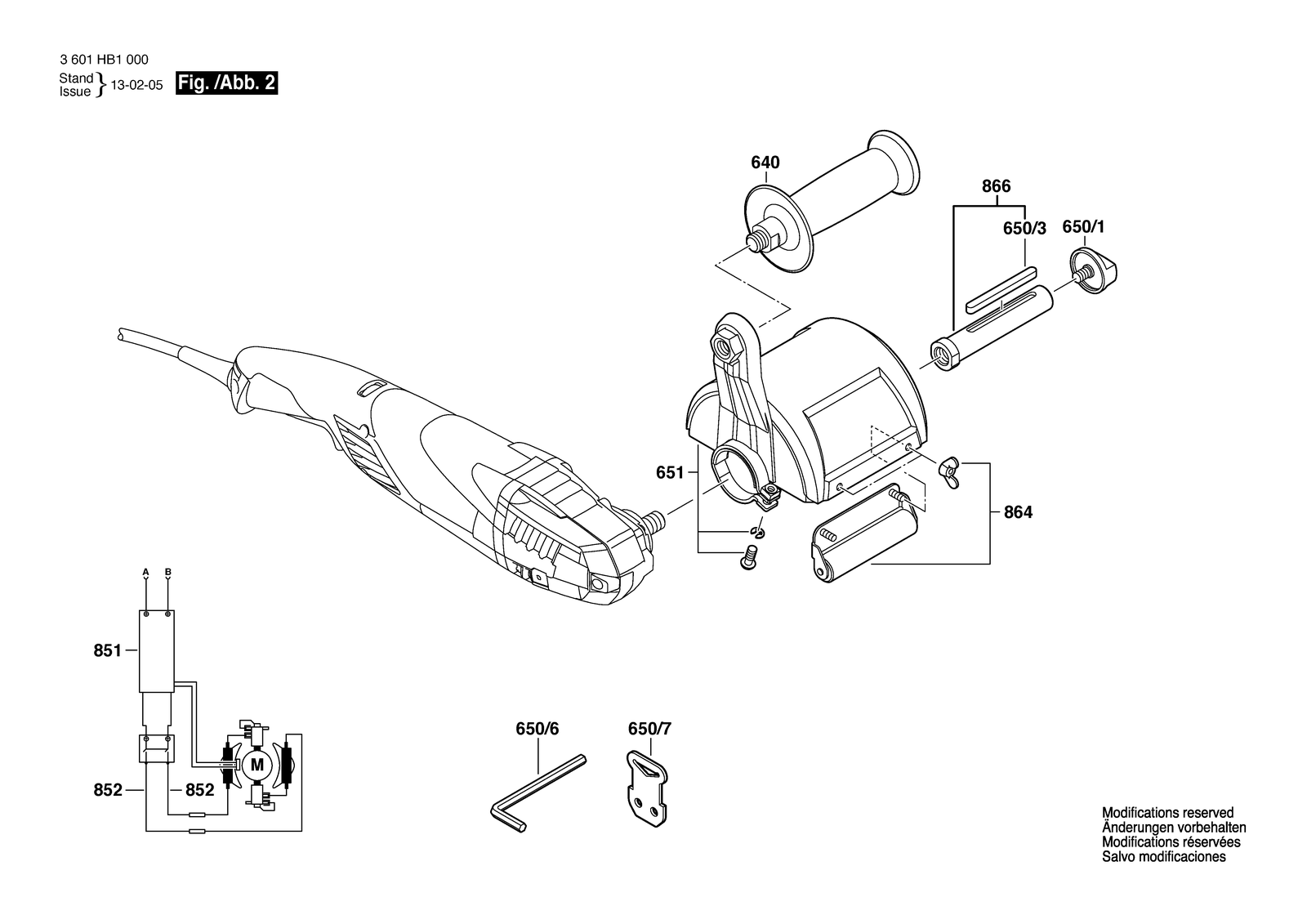

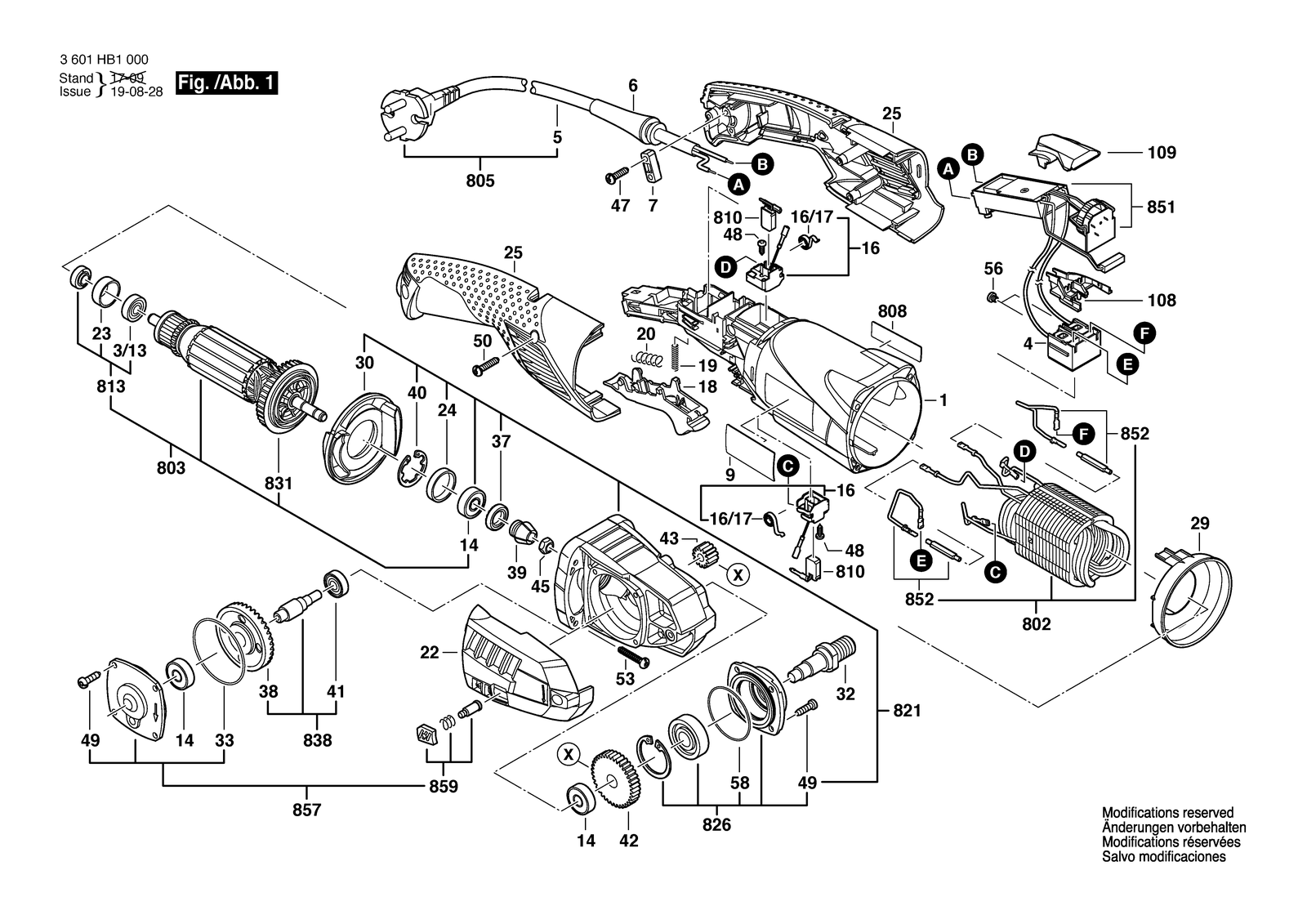

All parts of Bosch GSI 14 CE: 63 positions on 2 sheets
Bosch GSI 14 CE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108255 | Motor Housing Blue |
| 108 | 1600A00XC4 | Cover |
| 109 | 1605500263 | Cover Black |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 16 | 1601323025 | Brush Holder |
| 16/17 | 1604652013 | Spiral Spring |
| 18 | 1602319024 | Adjusting Slide |
| 19 | 1604611041 | Compression Spring |
| 20 | 3604611039 | Compression Spring |
| 22 | 1605500281 | Cover |
| 23 | 1600206036 | Rubber Ring |
| 24 | 1600206025 | Rubber Ring |
| 25 | 1600A01N0J | Handle |
| 29 | 1600591025 | Air-Deflector Ring |
| 3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 30 | 1600591014 | Air-Deflector Ring |
| 32 | 1619P07906 | Grinding Spindle |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 37 | 1600290016 | Rotary shaft lip seal |
| 38 | 1619P07918 | Crown Gear |
| 39 | 1619P07919 | Bevel Gear |
| 4 | 1607200155 | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 2600905072 | Groove ball bearing 7X19X6 |
| 42 | 1619P07911 | Cylindrical Gear |
| 43 | 1619P07912 | Cylindrical Gear |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2603490022 | Screw 4X16 |
| 48 | 1613435034 | Lens Head Screw 3X10 St |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 1604460144 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460349 | Power supply cord AUS 4,15M 2 X 1,5MM H07 Rn-F |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 56 | 1603415004 | Lens Head Screw |
| 58 | 1619P07915 | O-Ring 39,0X1,1 MM |
| 6 | 1600703031 | Grommet Ø7,3-Ø8,6X67 MM |
| 6 | 1600703032 | Grommet Ø8,7-Ø9,5X67 MM |
| 640 | 16020250A1 | Auxiliary Handle |
| 650/1 | 1600A000Z1 | Fixation |
| 650/3 | 1902300297 | Parallel Key |
| 650/6 | 1619P01598 | Hex Screw Driver 4X95 |
| 650/7 | 3602311050 | Key Holder |
| 651 | 1605500283 | Protective Cover |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 802 | 1604220417 | Field 220-240V |
| 803 | 1604010A23 | Armature With Fan 230V |
| 805 | 1607000391 | Power supply cord |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014176 | Carbon-Brush Set |
| 813 | 1607000378 | Parts Set |
| 821 | 3607031742 | Gear Housing |
| 826 | 3607031743 | Bearing Flange |
| 831 | 1606610132 | Fan |
| 838 | 1619P09080 | Crown Gear |
| 851 | 1607233256 | Speed governor |
| 852 | 1604448025 | Connecting Cable |
| 857 | 1619P09079 | Gear Cover |
| 859 | 1619P09082 | Push button set |
| 864 | 3607031745 | Guide Roller |
| 866 | 3607031737 | Spindle |
| 9 | 3601110570 | Manufacturer's nameplate GSI 14-CE |
