Bosch GSH 7 VC

Bosch GSH 7 VC demolition hammer: exploded parts diagram, 2 sheets, 108 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSH 7 VC: 108 positions on 2 sheets

Bosch GSH 7 VC parts list (2 sheets)

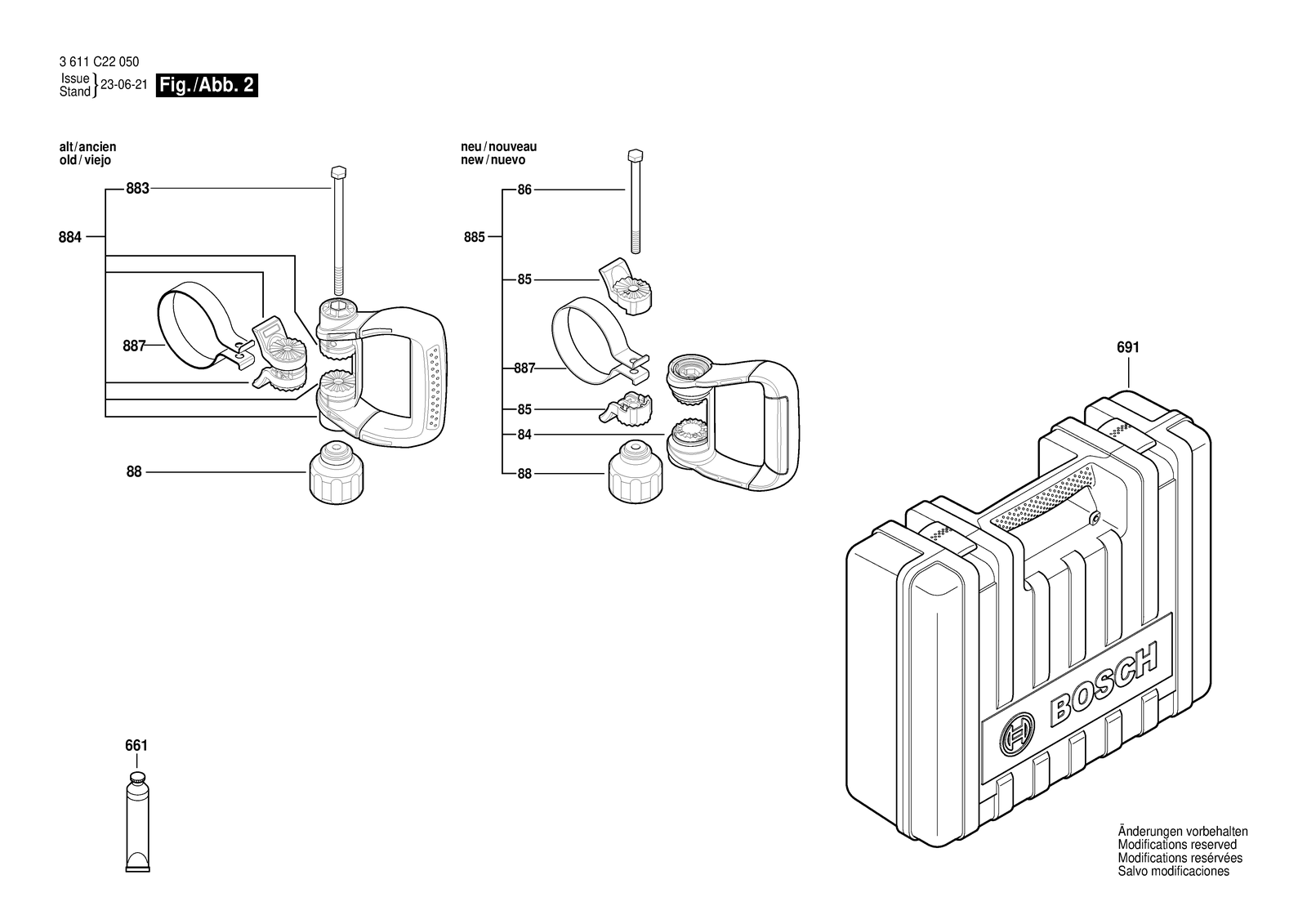

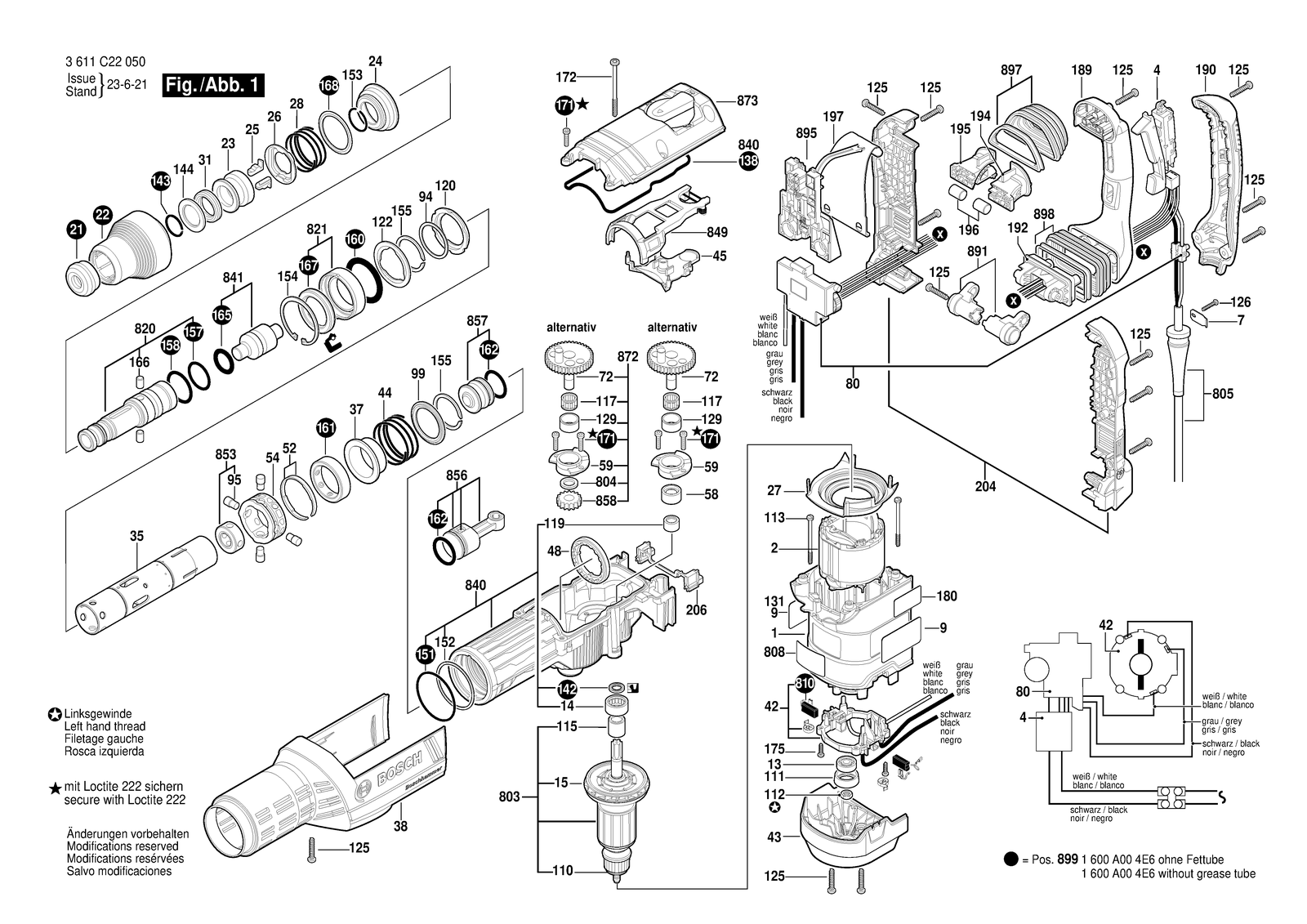

Bosch GSH 7 VC parts diagram, sheet 1Bosch GSH 7 VC parts diagram, sheet 2
No.Part numberPart name
11615108165Motor Housing
1101610190073Seal Ring
1111610290046Bushing
1121613300007Hex Nut
1131613412001Tapping Screw B 4,8X68 MM
1151610300086Bushing
1171610913023Needle-Roller Assembly
1191610910081Needle-Roller Bearing
1201610190080Spacer Tube
1221610290128Spacer Ring
1251613435040Torx Oval-Head Screw
1262603490023Torx Oval-Head Screw 4X20
1291610300080Bushing
131610900026Groove ball bearing 8X24X8
131160111C00JReference Plate
1381611015064Sealing Frame
141610910096Needle-Roller Bearing
1421610290112Rotary shaft lip seal
1431614601072Retaining ring
1441610103025Supporting Disc
151616610109Fan
1511610210222O-Ring
1521614601073Retaining ring
1532916540017Retaining ring DIN 7993 A 30
1542916660027Spring retaining ring DIN 472 62X2 MM
1551614601074Retaining ring
1571610210103O-Ring 33,0X2,0 MM
1581610210224O-Ring
1601610210246O-Ring
1611610210227Damping Ring
1621600210080O-Ring
1651610290125Seal Ring
1661613200020Cylindrical Roller
167161029012ARotary shaft lip seal
1681610206027Packing Washer
1711613414026Torx socket button screw
1721613435041Torx Oval-Head Screw
1752603490021Torx Oval-Head Screw 4X12
1803601119137Warning Plate Caution
1891615133038Handle
1901615500438Handle Cover
1921614611028Rocker Foot
1941610099018Screw Plate
1951610099019Screw Plate
1961610026004Damping rubber
1971616232000Leaf Spring
21614220140Field 100-110V
2041615102162Rear Housing Section
2061612386006Holding strip
211610508038Protective Cap
221610591051Protection Sleeve
231610520006Stop Sleeve
241610500025Headed Bush
251612300027Stopping Device
261600A019WLIndexing Disk
27160059105CAir-Deflector Ring
281614621010Compression Spring
311610290129Damping Ring
351615806249Hammer Pipe
371610322018Control Bushing
381615190177Covering hood
4161720030BSwitch
421614336090Brush Holder
431615500435Brush-Cover
441614621020Compression Spring
451610591052Holding-Down-Appliance
481619990186Clutch Sleeve
521610224015Retaining snap ring
541600A019Z4Spacer Tube
581600A0014JLocking Bush
591615805074Bearing Pedestal
6611615430010Grease Tube 30 Ml
691161543851ACarrying Case
71601302018Fastening Clamp
721616317090Eccentric Cog Wheel
8016072335R3Speed governor
8031614010279Armature 110V
8041610190027Stop Disc
80516044607BKPower supply cord
808160111A3H5Nameplate
8101617000A50Carbon-Brush Set
8201618597102Toolholder
8211610508058Plain bearing
841602025081Auxiliary Handle
8401607000C38Impact Mechanism Housing
8411617000A4RStriker Pin
8491617000A31Control Fork
851600A008BLClamping Piece
8531610231004Guide Bushing
8561617000A32Hammer Piston
8571617000A33Striker
8581616317620Cylindrical Gear
862911021267Hex Screw
8721617000A35Eccentric
8731617000A4SHousing Cover
881619P16922Star Knob
8831613490019Hex Screw
884160202508TAuxiliary Handle
885160202508JAuxiliary Handle
8871600A01BH0Clamping Band
8911612099005Rocker Arm
8971610415005Bellows
8981610415004Bellows
8991600A004E6Service package
9161111A17SSticker Gsh - 9 VC
941610290111Supporting Disc
951613120023Driving Pin
991600220029Backup ring
