Bosch GSH 500 demolition hammer: exploded parts diagram, 2 sheets, 102 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSH 500: 102 positions on 2 sheets

Bosch GSH 500 parts list (2 sheets)

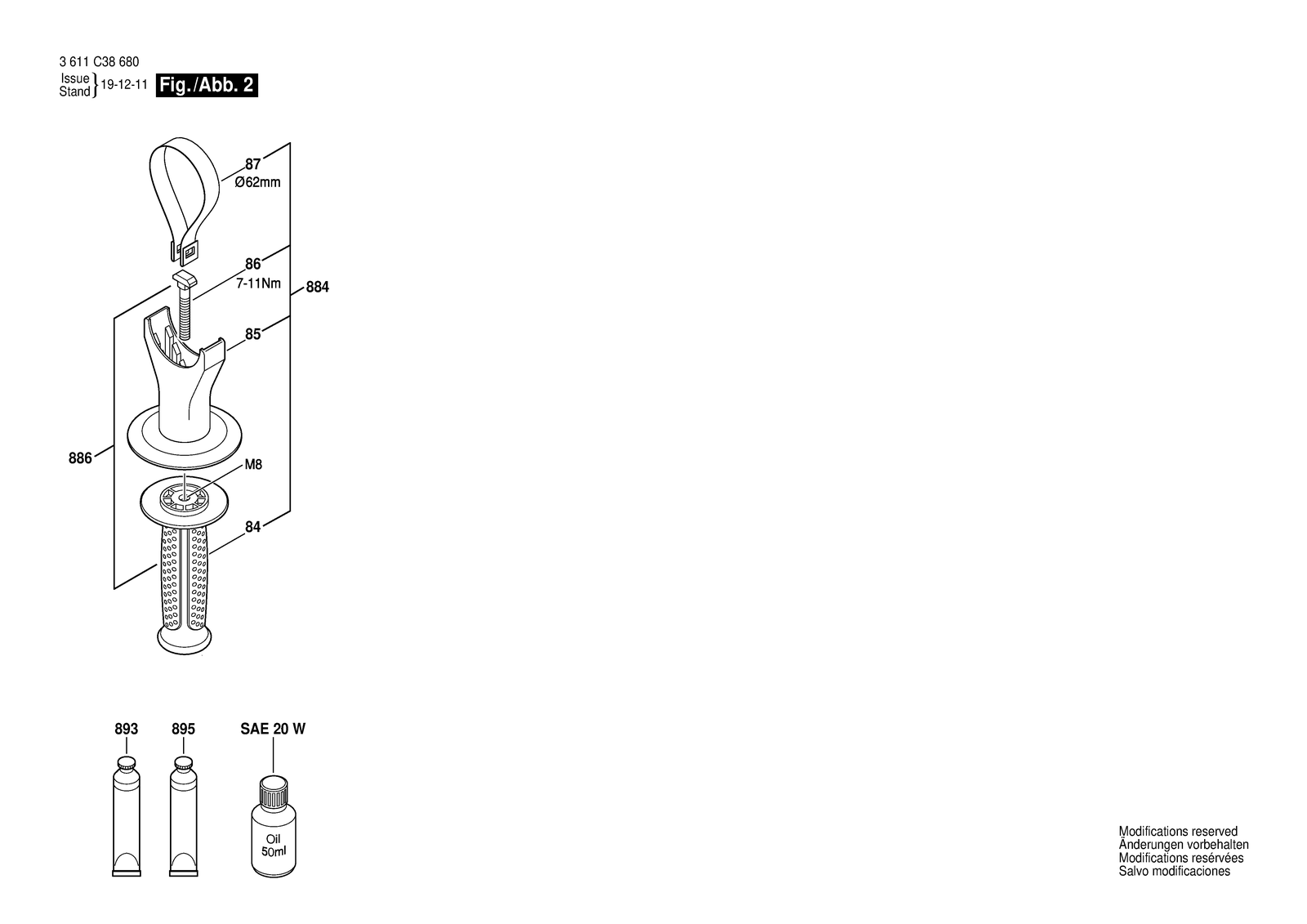

Bosch GSH 500 parts diagram, sheet 1Bosch GSH 500 parts diagram, sheet 2
No.Part numberPart name
11619P10301Motor Housing
1041619P08783Seal Ring
1111610290064Bushing
1121613300008Hex Nut DIN 936-M8X1-8
1131613435009Tapping Screw ST-4,8X57,5-TORX,T20
1171610913004Needle-Roller Assembly Ø13 MM
1291619P10302Cover Sleeve
131610900026Groove ball bearing 8X24X8
1381619P08785Sealing Frame
141610905041Groove ball bearing 12X32X10
1411610290066Rotary shaft lip seal
1431619P08752Retainer
1451610119012Spring retaining ring
151616610085Fan
1511619P14464Stop Disc
1521619P14463Retaining ring
1531614601030Retaining ring
1542916660019Spring retaining ring DIN 472-42X1,75MM
161619P14465Brush Holder
1601619P08787Damping Ring
1611619P14753Damping Ring
1621610210163O-Ring 22,0X3,5 MM
1631610290125Seal Ring
1641619P14689Damping Ring
1651610210079O-Ring 22,0X4,0 MM
1661619P14462Sealing Ring
1681619P08792O-Ring
1691619P14461Rubber Plug
1701619P14472O-Ring
1711613435014Torx Oval-Head Screw Silver M5X16-TORX,T25
1721613435013Torx Oval-Head Screw Silver M6X30-TORX,T30
1731619P01380Screw 4X14
1741613435012Torx Oval-Head Screw Silver M4,8X25-TORX,T25
1751619P00228Screw
1761613435012Torx Oval-Head Screw Silver M4,8X25-TORX,T25
1771603435051Tapping Screw Silver ST3,9X32
1781619P10286Connecting Cable
1781619P15164Connecting Cable
1791619P07815Screw
1821619P00831Felt Seal
1831619P09862Felt Seal
192910211019Tapping Screw DIN 7971-ST3,9X16-F
21619P14458Field
21619P14777Field 220V
21619P14780Field 240V
211619P14480Dust Cap
221619P08758Protection Sleeve
251903230016Ball 10 MM III DIN 5401ST
271619P09017Air-Deflector Ring
281619P08759Compression Spring
301619P08760Supporting Disc
321619P08761Damping Ring
341610516013Flange
41607200365Switch
41619P08754Switch
431619P08767Fan Cover
51604460144Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F
51607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
51614460075Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F
51619P15735Power supply cord 230V 4,15M 2 X 1,0MM H07 Rn-F
531619P14688Washer
541619P08769Stop Disc
551610290067Retaining snap ring
571619P14474Striker
61610703053Grommet Ø9,7-Ø12X89 MM
691610099004Retaining Bracket
71601302018Fastening Clamp
71601302019Fastening Clamp
721619PS0830Eccentric Cog Wheel
731619P14241Housing Cover
741619P14481Holding-Down-Appliance
751619P08778Handle
761613435015Torx Oval-Head Screw Silver M5X12-TORX,T25
81619P14459Nameplate
81619P15111Nameplate
81619P15115Nameplate
81619P15116Nameplate
81619P15120Nameplate
8031619P14921Armature 220V
8031619P15112Armature 220V
8031619P15121Armature 240V
811619P08780Handle Cover
8111617014138Carbon-Brush Set
8171614652004Spiral Spring
8231619P14923Toolholder
8391619P14924Gear Housing
841612025060Auxiliary Handle Black M8
8401619P14926Impact Mechanism Housing
8411619P14928Striker Pin
851618040074Support clamp
851619P09926Support clamp
8541619P14929Stop Disc
8561619P14930Hammer Piston
861613490002T-Head Bolt M8X40 MM
871611316019Clamping Band Ø62 MM
8841619P14935Auxiliary Handle
8861617000459Auxiliary Handle Black M8
8931615430002Grease Tube 225 Ml
8951615430015Grease Tube 225 Ml
8981619P14932Wear and Tear Part Set
91619P13299Manufacturer's nameplate GSH 500
951610210173O-Ring 32,0X1,5 MM
