Bosch GSH 5

Bosch GSH 5 demolition hammer: exploded parts diagram, 1 sheet, 17 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSH 5: 17 positions on 1 sheet

Bosch GSH 5 parts list (1 sheet)

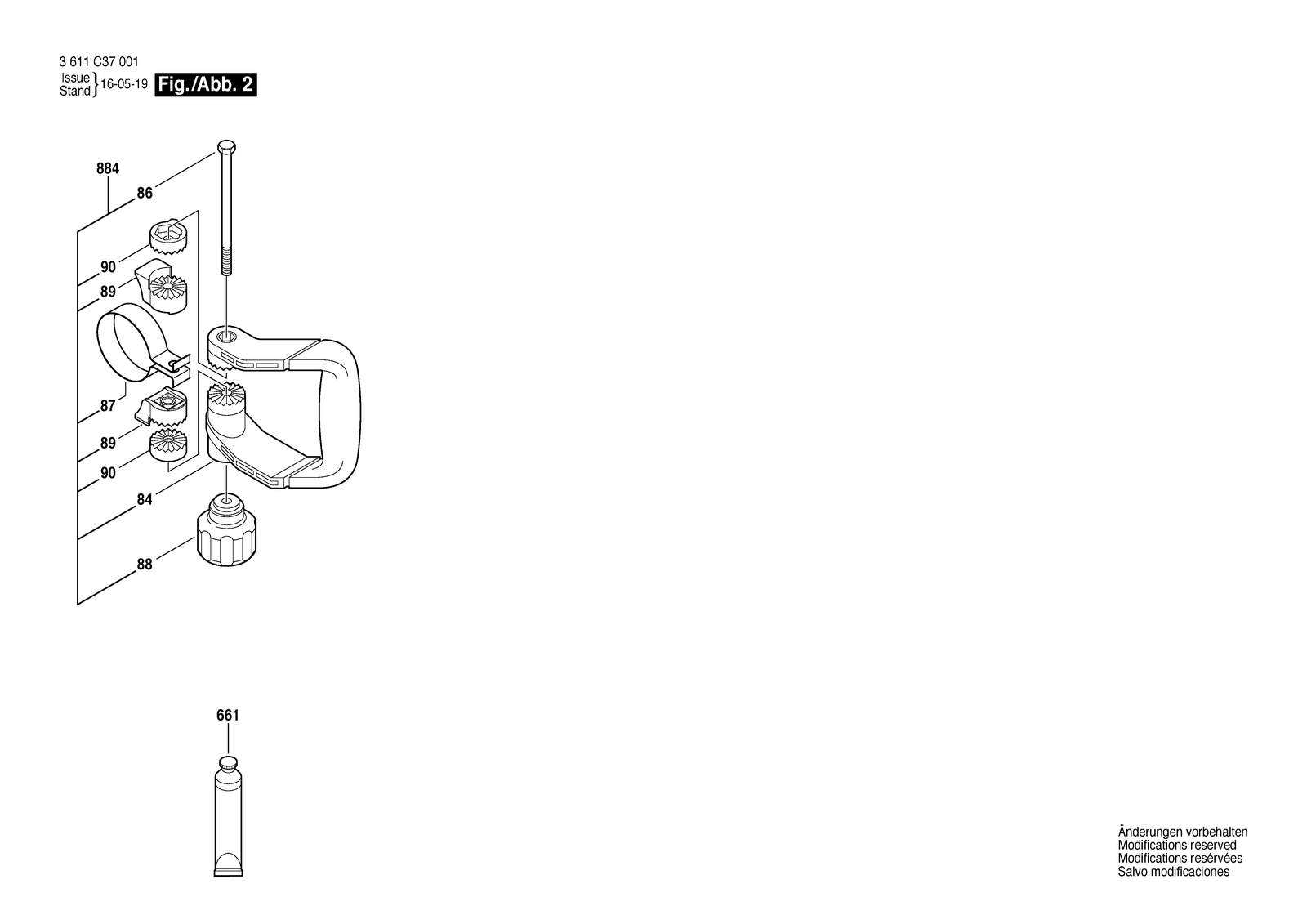

Bosch GSH 5 parts diagram, sheet 2
No.Part numberPart name
51604460348Power supply cord GB 230V 4,15M 2 X 1,5MM H07 Rn-F
51604460449Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F
51607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
51619P15856Power supply cord
6611615430010Grease Tube 30 Ml
69116054381D1Carrying Case
84160202507HAuxiliary Handle
841615132109Auxiliary Handle
861613490002T-Head Bolt M8X40 MM
862911011270Hex Screw DIN 931-M8X130-8.8
871619P07776Clamping Band
871619P07800Clamping Band
881619P16922Star Knob
8841619P07778Auxiliary Handle
8841619P10294Auxiliary Handle
891619P07803Clamping Piece
901610190053Catch Disk
