Bosch GSH 27 VC

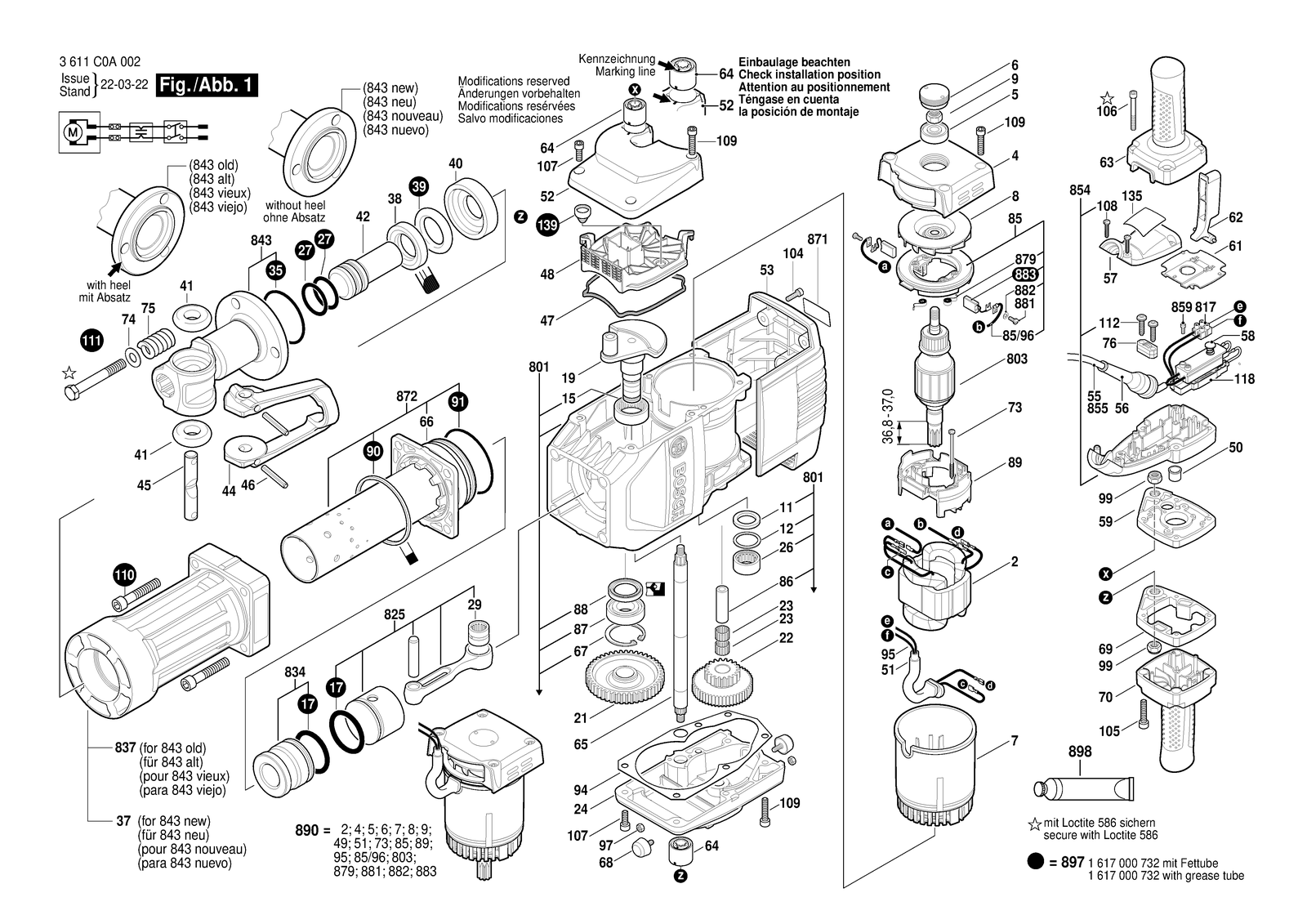

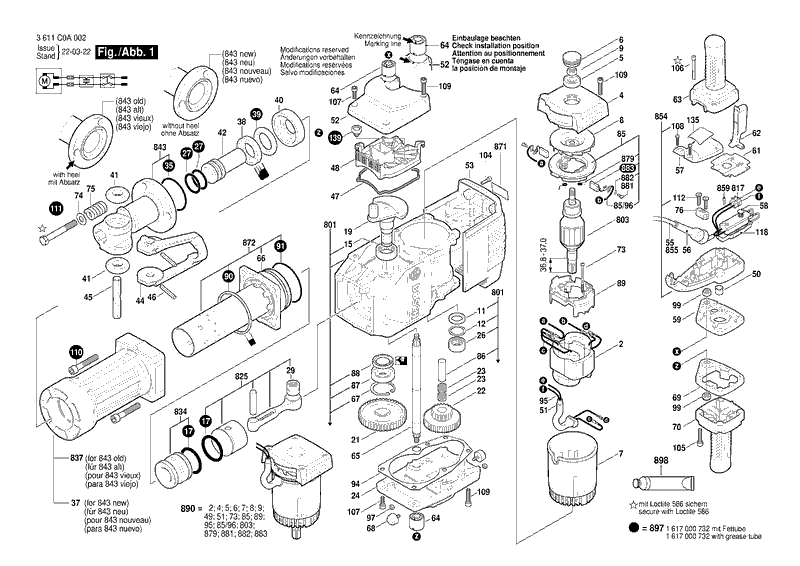

Bosch GSH 27 VC demolition hammer: exploded parts diagram, 1 sheet, 118 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSH 27 VC: 118 positions on 1 sheet
Bosch GSH 27 VC parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 104 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
| 105 | 2914551188 | Microencapsulated Screw DIN 912-M6X30-8.8 |
| 106 | 2914551189 | Microencapsulated Screw DIN 912-M6X55-8.8 |
| 107 | 2910141242 | Hex Socket Head Cap Screw DIN 912-M8X20-8.8 |
| 108 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 109 | 2910141248 | Hex Socket Head Cap Screw DIN 912-M8X35-8.8 |
| 11 | 1610108013 | Felt Washer |
| 110 | 2910141356 | Hex Socket Head Cap Screw DIN-M12X70-8.8 |
| 111 | 1613414024 | Hex Screw |
| 112 | 1613490021 | Torx Oval-Head Screw |
| 118 | 1614503011 | Suppression Filter |
| 12 | 1610102616 | Supporting Disc Thick 1,0 MM |
| 135 | 1611110H20 | Reference Plate |
| 135 | 161111C01C | Reference Plate |
| 139 | 1610508050 | Plug |
| 15 | 1610910091 | Needle-Roller Bearing D35XD47X17 |
| 17 | 1610210210 | O-Ring |
| 19 | 1600A014TX | Eccentric Shaft |
| 2 | 160422052R | Field 220-240V |
| 2 | 160422052S | Field |
| 2 | 160422052T | Field |
| 21 | 1616318009 | Cylindrical Gear Z=45 |
| 22 | 1616328036 | Cylindrical Gear Z=19/52 |
| 23 | 1610913005 | Needle-Roller Assembly |
| 24 | 1600A014T0 | Gear Cover |
| 26 | 1610910092 | Needle-Roller Bearing D25XD37X17 |
| 27 | 1610210213 | O-Ring |
| 29 | 1610910097 | Needle-Roller Bearing |
| 35 | 1610210211 | O-Ring |
| 37 | 1600A014T8 | Guide Tube |
| 38 | 1600A014U0 | Supporting Disc |
| 39 | 1610290103 | Damping Ring |
| 4 | 160582023G | Bearing cover |
| 40 | 1600A014U1 | Intermediate Flange |
| 41 | 1610210008 | O-Ring 17,3X17,7 MM |
| 42 | 1600A014TU | Striker Pin |
| 44 | 1618045026 | Retaining Bracket |
| 45 | 1613103004 | Locking Bolt |
| 46 | 2917760187 | Slotted Spring Pin 8X55 DIN 1481 |
| 47 | 1600A02254 | Sealing Frame |
| 48 | 16055002HJ | Cover |
| 5 | 1610900015 | Groove ball bearing 12X37X12 |
| 50 | 3600421500 | Protection Sleeve |
| 51 | 1610703057 | Cord guard |
| 52 | 1600A014T5 | Fan Cover |
| 53 | 1615500414 | Covering hood |
| 53 | 1615500415 | Covering hood |
| 55 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 55 | 1604460202 | Power supply cord GB 110V 4,15M 2 X 2,5MM H07 Rn-F |
| 55 | 1604460348 | Power supply cord GB 230V 4,15M 2 X 1,5MM H07 Rn-F |
| 55 | 1604460449 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 55 | 1614460075 | Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F |
| 55 | 1614460086 | Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F |
| 55 | 1614460093 | Power supply cord BR 4,15M 2 X 1,0MM H07RN-F |
| 55 | 1614460098 | Power supply cord |
| 55 | 1614460102 | Power supply cord |
| 56 | 1610703011 | Grommet |
| 56 | 1610703055 | Cord guard |
| 57 | 1615500418 | Switch Cover |
| 58 | 1617200124 | Switch |
| 59 | 1600A014U2 | Intermediate Plate |
| 6 | 1615500214 | Screw Plug |
| 61 | 1615700059 | Dust Protection |
| 62 | 1612026153 | Switch-Pawl |
| 63 | 1615132124 | Handle |
| 64 | 1616334000 | Rubber Torsion-Bar |
| 65 | 1613060005 | Toothed Shaft |
| 66 | 1610290101 | Backup ring |
| 67 | 2916660023 | Spring retaining ring DIN 472 52X2MM |
| 68 | 1613465001 | Rubber Buffer |
| 69 | 3611C0A002 | Demolition Hammer |
| 7 | 1615108104 | Insulating Housing |
| 70 | 1615132125 | Handle |
| 73 | 1603435036 | Tapping Screw 4,8X78 Mm, Torx T-20 |
| 74 | 2916160010 | Disc Spring |
| 75 | 1614614009 | Compression Spring |
| 76 | 1611302015 | Fastening Clamp |
| 76 | 1611302016 | Fastening Clamp |
| 8 | 1616610089 | Fan |
| 8 | 1616610091 | Fan |
| 801 | 1607000E6P | Motor Housing |
| 803 | 1614011139 | Armature 220-240V |
| 803 | 1614011140 | Armature 110V |
| 803 | 1614011141 | Armature |
| 817 | 1611091006 | Connecting terminal 2-POLE |
| 825 | 1617000727 | Piston Assembly Group |
| 834 | 1617000728 | Striker |
| 837 | 1600A01BG9 | Guide Tube |
| 843 | 1607000C8U | Toolholder |
| 85 | 1614336045 | Brush Holder |
| 85/96 | 1614448037 | Connecting Cable |
| 854 | 1617000730 | Switch Housing |
| 855 | 1617000723 | Power supply cord |
| 855 | 1619P15856 | Power supply cord |
| 859 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 86 | 1610300033 | Bearing bolt |
| 87 | 1610900027 | Groove ball bearing 25X52X15 |
| 871 | 160111A3H5 | Nameplate |
| 872 | 1617000731 | Hammer Pipe |
| 879 | 1614652001 | Spiral Spring |
| 88 | 1610283016 | Rotary shaft lip seal |
| 881 | 1613490005 | Torx Oval-Head Screw M4X10 |
| 882 | 1610151007 | Spring Lock Washer |
| 883 | 1617000425 | Carbon-Brush Set |
| 89 | 1610009008 | Spacer |
| 890 | 1617000733 | Un. Flange-Mtd. Motor |
| 890 | 1617000734 | Un. Flange-Mtd. Motor |
| 890 | 1617000A17 | Un. Flange-Mtd. Motor |
| 897 | 1617000732 | Wear and Tear Part Set |
| 898 | 1615430015 | Grease Tube 225 Ml |
| 9 | 1613313000 | Hex Nut DIN 985-M12X1 |
| 90 | 1611015061 | Rectangular Ring |
| 91 | 1610210212 | O-Ring |
| 94 | 1611015021 | Sealing Plate |
| 95 | 1614413009 | Wiring Harness |
| 95 | 1614413010 | Wiring Harness |
| 97 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 99 | 3613313500 | Hex Nut DIN 985-10-M10X1 |
