Bosch GSH 11 E
Bosch GSH 11 E demolition hammer: exploded parts diagram, 2 sheets, 210 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

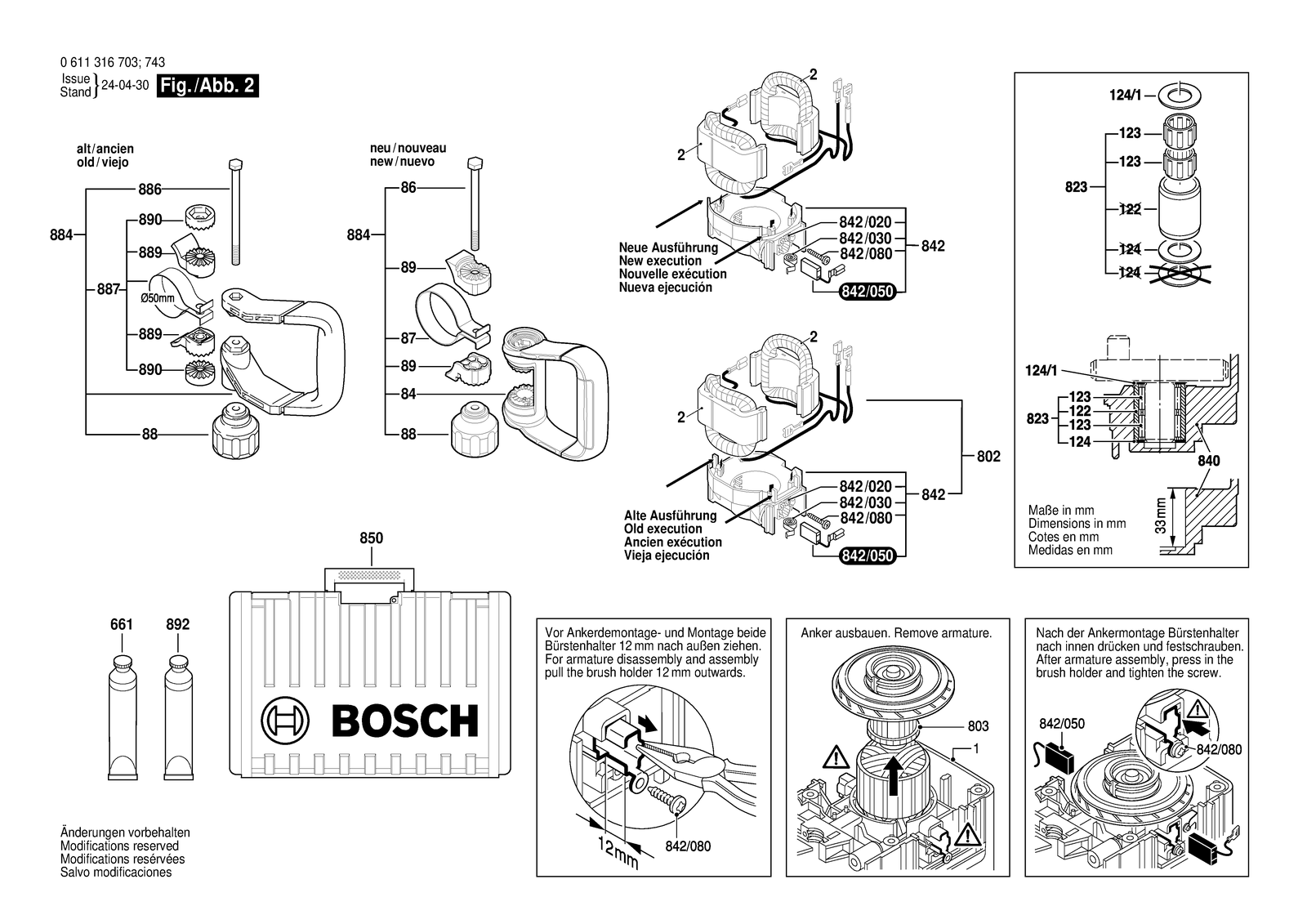

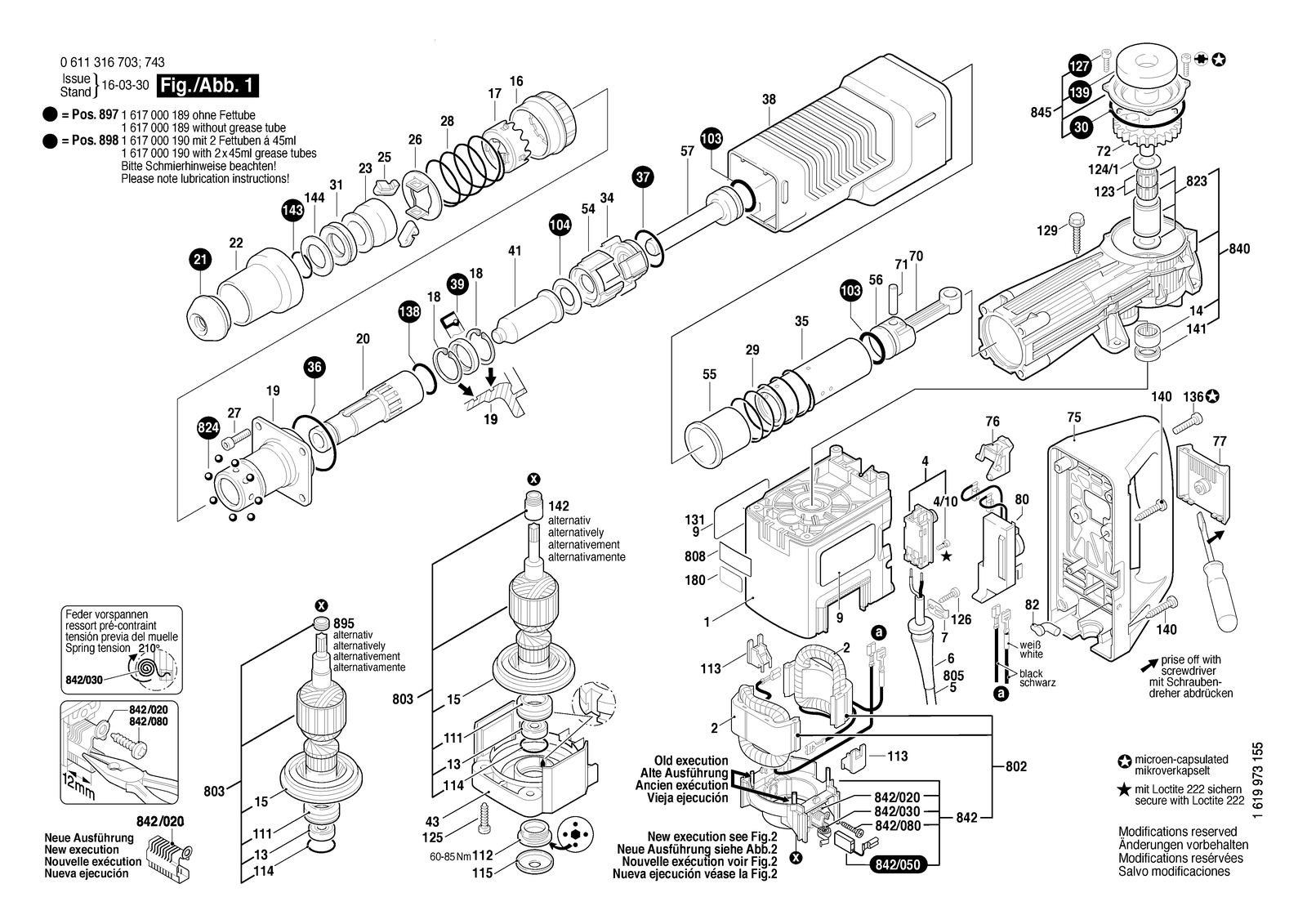

All parts of Bosch GSH 11 E: 210 positions on 2 sheets
Bosch GSH 11 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615108091 | Motor Housing Blue |
| 1 | 1615108091 | Motor Housing Blue |
| 103 | 1610210122 | O-Ring 30,0X5,0 MM |
| 103 | 1610210122 | O-Ring 30,0X5,0 MM |
| 104 | 1610210123 | O-Ring 22,0X11,0 MM |
| 104 | 1610210123 | O-Ring 22,0X11,0 MM |
| 111 | 3610501500 | Bushing |
| 111 | 3610501500 | Bushing |
| 112 | 3613461500 | Threaded Ring |
| 112 | 3613461500 | Threaded Ring |
| 113 | 1610009007 | Spacer |
| 113 | 1610009007 | Spacer |
| 114 | 1610210139 | O-Ring 30,0X2,5 MM |
| 114 | 1610210139 | O-Ring 30,0X2,5 MM |
| 115 | 1610508027 | Protective Cap Black |
| 115 | 1610508027 | Protective Cap Black |
| 123 | 1610913013 | Needle-Roller Assembly |
| 123 | 1610913013 | Needle-Roller Assembly |
| 124/1 | 1610101608 | Thrust Bearing Disc |
| 125 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 125 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 126 | 2603490022 | Screw 4X16 |
| 126 | 2603490022 | Screw 4X16 |
| 127 | 2914551117 | Microencapsulated Screw DIN 912-M 5X12-8.8 |
| 127 | 2914551117 | Microencapsulated Screw DIN 912-M 5X12-8.8 |
| 129 | 1613433001 | Screw and washer assembly 6,3X32 |
| 129 | 1613433001 | Screw and washer assembly 6,3X32 |
| 13 | 2610909310 | Groove ball bearing |
| 13 | 2610909310 | Groove ball bearing |
| 131 | 160111C1VG | Manufacturer's nameplate |
| 131 | 160111C1VG | Manufacturer's nameplate |
| 136 | 1613490029 | Torx Oval-Head Screw M6X30 |
| 136 | 1613490029 | Torx Oval-Head Screw M6X30 |
| 138 | 1610210130 | O-Ring 32,0X2,5 MM |
| 138 | 1610210130 | O-Ring 32,0X2,5 MM |
| 139 | 1610108020 | Felt Washer |
| 139 | 1610108020 | Felt Washer |
| 14 | 1610910096 | Needle-Roller Bearing |
| 14 | 1610910096 | Needle-Roller Bearing |
| 140 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 140 | 1613435010 | Torx Oval-Head Screw 5,5X25 |
| 141 | 1610290028 | Rotary shaft lip seal |
| 141 | 1610290028 | Rotary shaft lip seal |
| 142 | 1610300063 | Bushing |
| 142 | 1610300063 | Bushing |
| 143 | 2916540017 | Retaining ring DIN 7993 A 30 |
| 143 | 2916540017 | Retaining ring DIN 7993 A 30 |
| 144 | 1610102029 | Supporting Disc |
| 144 | 1610102029 | Supporting Disc |
| 15 | 1616610083 | Fan |
| 15 | 1616610083 | Fan |
| 16 | 1610499022 | Ratchet Sleeve |
| 16 | 1610499022 | Ratchet Sleeve |
| 17 | 1610590004 | Retaining snap ring |
| 17 | 1610590004 | Retaining snap ring |
| 18 | 1610119010 | Spring retaining ring |
| 18 | 1610119010 | Spring retaining ring |
| 180 | 1611110C09 | Sticker |
| 180 | 1611110E60 | Sticker |
| 180 | 1611110855 | Sticker |
| 19 | 1619P13963 | Clamping-Flange |
| 19 | 1619P13963 | Clamping-Flange |
| 2 | 160422052J | Field 230V |
| 2 | 160422052K | Field 110-120V |
| 2 | 160422052J | Field 230V |
| 20 | 1618597067 | Toolholder |
| 20 | 1618597067 | Toolholder |
| 21 | 1610508025 | Protective Cap |
| 21 | 1610508025 | Protective Cap |
| 22 | 1610499023 | Protection Sleeve |
| 22 | 1610499023 | Protection Sleeve |
| 23 | 1610521011 | Stop Sleeve |
| 23 | 1610521011 | Stop Sleeve |
| 25 | 1612300025 | Stopping Device |
| 25 | 1612300025 | Stopping Device |
| 26 | 1610290027 | Indexing Disk |
| 26 | 1610290027 | Indexing Disk |
| 27 | 2910151246 | Hex Socket Head Cap Screw DIN 912-M8X30-10.9 |
| 27 | 2910151246 | Hex Socket Head Cap Screw DIN 912-M8X30-10.9 |
| 28 | 1614621002 | Compression Spring |
| 28 | 1614621002 | Compression Spring |
| 29 | 1614621003 | Compression Spring |
| 29 | 1614621003 | Compression Spring |
| 30 | 1610210147 | O-Ring 79,5X2,65 MM |
| 30 | 1610210147 | O-Ring 79,5X2,65 MM |
| 31 | 1610290026 | Damping Ring |
| 31 | 1610290026 | Damping Ring |
| 34 | 1610390029 | Spacer Tube |
| 34 | 1610390029 | Spacer Tube |
| 35 | 1615806108 | Hammer Pipe |
| 35 | 1615806108 | Hammer Pipe |
| 36 | 1610210127 | O-Ring 64,0X2,5 MM |
| 36 | 1610210127 | O-Ring 64,0X2,5 MM |
| 37 | 1610210128 | O-Ring 35,0X3,0 MM |
| 37 | 1610210128 | O-Ring 35,0X3,0 MM |
| 38 | 1615190093 | Covering hood |
| 38 | 1615190093 | Covering hood |
| 39 | 1600A01MK9 | Rotary shaft lip seal |
| 39 | 1600A01MK9 | Rotary shaft lip seal |
| 4 | 1617200048 | Switch |
| 4 | 1617200048 | Switch |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 4/10 | 2910011088 | Socket head cap screw DIN 84-AM3,5X12-5.8 |
| 41 | 1618710071 | Striker Pin |
| 41 | 1618710071 | Striker Pin |
| 43 | 1615808083 | Bearing cover Blue |
| 43 | 1615808083 | Bearing cover Blue |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460201 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460348 | Power supply cord GB 230V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460449 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 16044607A1 | Power supply cord SMA 230V 4,15 M 2X1 MM H05 Rn-F |
| 5 | 1614460070 | Power supply cord SAM 4,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1614460086 | Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460094 | Power supply cord BR 220V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460075 | Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F |
| 54 | 1610190019 | Control Disc |
| 54 | 1610190019 | Control Disc |
| 55 | 1610420005 | Control Bushing |
| 55 | 1610420005 | Control Bushing |
| 56 | 1618700064 | Hammer Piston |
| 56 | 1618700064 | Hammer Piston |
| 57 | 1618710062 | Striker |
| 57 | 1618710062 | Striker |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 6 | 1610703053 | Grommet Ø9,7-Ø12X89 MM |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 7 | 1601302019 | Fastening Clamp |
| 7 | 1601302019 | Fastening Clamp |
| 70 | 1612001033 | Connecting Rod |
| 70 | 1612001033 | Connecting Rod |
| 71 | 1613101006 | Straight Pin |
| 71 | 1613101006 | Straight Pin |
| 72 | 1600A027H7 | Eccentric Cog Wheel |
| 72 | 1600A027H7 | Eccentric Cog Wheel |
| 75 | 1615132082 | Handle Black |
| 75 | 1615132082 | Handle Black |
| 76 | 1612026049 | Control Lever |
| 76 | 1612026049 | Control Lever |
| 77 | 1612026048 | Shift Plate Gray |
| 77 | 1612026048 | Shift Plate Gray |
| 80 | 16072335CR | Speed governor 220-240V |
| 80 | 16072335CU | Speed governor |
| 80 | 16072335CV | Speed governor 220-240V |
| 80 | 16072335CR | Speed governor 220-240V |
| 802 | 1607000C3V | Subassembly |
| 802 | 1607000C3W | Subassembly |
| 802 | 1607000C3V | Subassembly |
| 803 | 1614011072 | Armature 220-240V |
| 803 | 1614011074 | Armature 110-120V |
| 803 | 1614011072 | Armature 220-240V |
| 805 | 1607000E47 | Power supply cord |
| 805 | 1617000723 | Power supply cord |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 82 | 1615510000 | Light Conductor |
| 82 | 1615510000 | Light Conductor |
| 823 | 1617000403 | Needle-Roller Assembly |
| 823 | 1617000403 | Needle-Roller Assembly |
| 824 | 1617000240 | Ball DIN 5401-6,5MM-III-ST |
| 824 | 1617000240 | Ball DIN 5401-6,5MM-III-ST |
| 84 | 160202508D | Auxiliary Handle |
| 84 | 160202508D | Auxiliary Handle |
| 840 | 1617000969 | Impact Mechanism Housing |
| 840 | 1617000969 | Impact Mechanism Housing |
| 842 | 1600A005AF | Brush Holder |
| 842 | 1600A005AF | Brush Holder |
| 842/020 | 1614336017 | Brush Guide |
| 842/020 | 1614336017 | Brush Guide |
| 842/030 | 1614652004 | Spiral Spring |
| 842/030 | 1614652004 | Spiral Spring |
| 842/050 | 1607000481 | Carbon-Brush Set 10 X 1 617 014 126 |
| 842/050 | 1617014126 | Carbon-Brush Set |
| 842/050 | 1617014126 | Carbon-Brush Set |
| 842/080 | 2910611012 | Tapping Screw DIN 7981-ST3,5X16-C-H |
| 842/080 | 2910611012 | Tapping Screw DIN 7981-ST3,5X16-C-H |
| 845 | 1617000418 | Housing Cover |
| 845 | 1617000418 | Housing Cover |
| 850 | 1600A03625 | Carrying Case |
| 86 | 2911021267 | Hex Screw |
| 86 | 2911021267 | Hex Screw |
| 87 | 1611316010 | Clamping Band |
| 87 | 1611316010 | Clamping Band |
| 88 | 1619P16922 | Star Knob |
| 88 | 1619P16922 | Star Knob |
| 884 | 160202508E | Auxiliary Handle |
| 884 | 160202508E | Auxiliary Handle |
| 886 | 2911011270 | Hex Screw DIN 931-M8X130-8.8 |
| 886 | 2911011270 | Hex Screw DIN 931-M8X130-8.8 |
| 887 | 1617000188 | Clamping Band Ø50 MM |
| 887 | 1617000188 | Clamping Band Ø50 MM |
| 889 | 1618040053 | Clamping Piece |
| 889 | 1618040053 | Clamping Piece |
| 89 | 1600A00748 | Clamping Piece |
| 89 | 1600A00748 | Clamping Piece |
| 890 | 1610190053 | Catch Disk |
| 890 | 1610190053 | Catch Disk |
| 892 | 1615430014 | Grease Tube 45 Ml |
| 892 | 1615430014 | Grease Tube 45 Ml |
| 895 | 3613344500 | Oil Return Ring |
| 895 | 3613344500 | Oil Return Ring |
| 897 | 1617000189 | Wear and Tear Part Set |
| 897 | 1617000189 | Wear and Tear Part Set |
| 898 | 1617000190 | Wear and Tear Part Set |
| 898 | 1617000190 | Wear and Tear Part Set |
| 9 | 160111C0U1 | Manufacturer's nameplate |
| 9 | 1611110C01 | Manufacturer's nameplate |
| 9 | 160111C0U1 | Manufacturer's nameplate |
