Bosch GSG 9,6 V

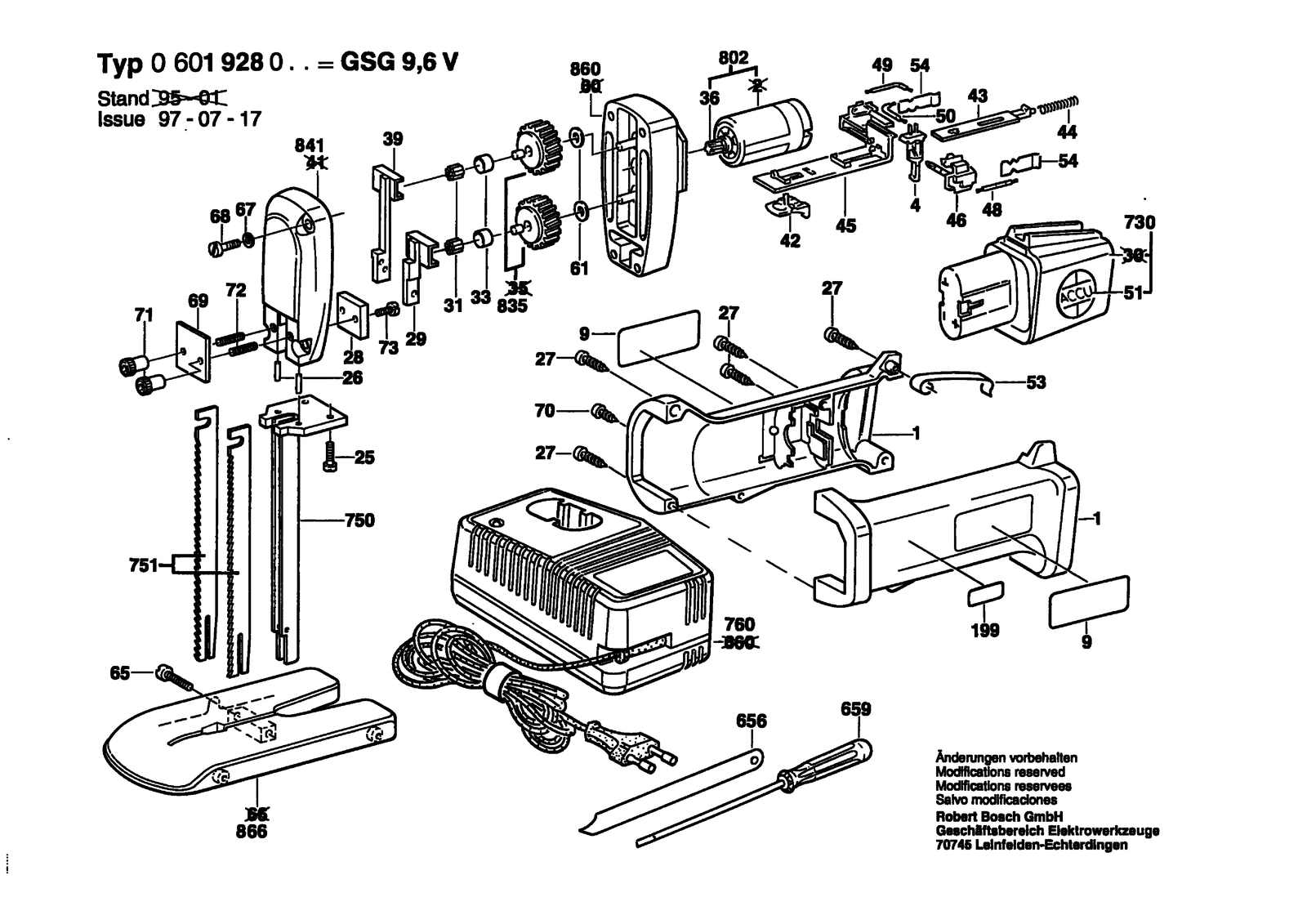

Bosch GSG 9,6 V cordless foam saw: exploded parts diagram, 1 sheet, 53 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSG 9,6 V: 53 positions on 1 sheet
Bosch GSG 9,6 V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104300 | Housing Section Blue |
| 199 | 1601110265 | Reference Plate |
| 25 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 26 | 2917500093 | Straight Pin 4H8X8 DIN 7 |
| 27 | 2603490022 | Screw 4X16 |
| 28 | 3602307009 | Support Plate |
| 29 | 2602305014 | Lifting Rod |
| 31 | 2600910009 | Needle-Roller Assembly |
| 33 | 2600300074 | Roller |
| 36 | 2606316121 | Pinion Z=11 |
| 39 | 2602305016 | Lifting Rod |
| 4 | 2607200196 | On-Off Switch |
| 42 | 1602026057 | Switch Handle Black |
| 43 | 2601099028 | Adjusting Slide Blue |
| 44 | 1604611026 | Compression Spring |
| 45 | 2608018003 | Contact retainer |
| 46 | 2608018001 | Contact retainer |
| 48 | 2604412019 | Connecting Cable |
| 49 | 2604412021 | Connecting Cable White L = 52 MM |
| 50 | 2604412021 | Connecting Cable White L = 52 MM |
| 51 | 2601110461 | Sticker Rechargable Batery |
| 53 | 2601251003 | Holding Spring Ø8,7 MM |
| 54 | 2601324012 | Contact Spring |
| 61 | 2600100627 | Shim 0,3 MM |
| 65 | 2910021132 | Socket head cap screw DIN 84-AM4X25-8.8 |
| 656 | 2601030010 | Scraper |
| 67 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 68 | 2910021130 | Socket head cap screw DIN 84-AM4X20-8.8 |
| 69 | 2601034010 | Pressure Plate |
| 70 | 2910611018 | Tapping Screw DIN 7981-ST3,9X13-C-H |
| 71 | 3603345016 | Round Nut |
| 72 | 2603502015 | Stud |
| 73 | 2910011084 | Socket head cap screw DIN 84-AM3,5X8-5.8 |
| 730 | 2607335203 | Slide-In Accu Package 9,6V,1,4AH, Nicd |
| 750 | 2608135020 | Guide 130 Mm, T42A |
| 750 | 2608135021 | Guide 220 Mm, T42B |
| 750 | 2608135022 | Guide 300 Mm, T42C |
| 750 | 2608135023 | Guide 70 Mm, T42D |
| 751 | 2607018010 | Saw Blade Set 130 Mm, T43A |
| 751 | 2607018011 | Saw Blade Set 220 Mm, T43B |
| 751 | 2607018012 | Saw Blade Set 300 Mm, T43C |
| 751 | 2607018013 | Saw Blade Set 70 Mm, T 43D |
| 760 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 760 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 760 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 760 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 760 | 2607224443 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 802 | 2607022912 | DC motor 9,6V |
| 835 | 2606316901 | Eccentric Cog Wheel Z=32 |
| 841 | 2605500905 | Gear Cover |
| 860 | 2605806991 | Gear Housing |
| 866 | 2608000908 | Base Plate |
| 9 | 2601110886 | Sticker |
