Bosch GSG 300

Bosch GSG 300 univ. foam rubber cutter: exploded parts diagram, 1 sheet, 96 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSG 300: 96 positions on 1 sheet

Bosch GSG 300 parts list (1 sheet)

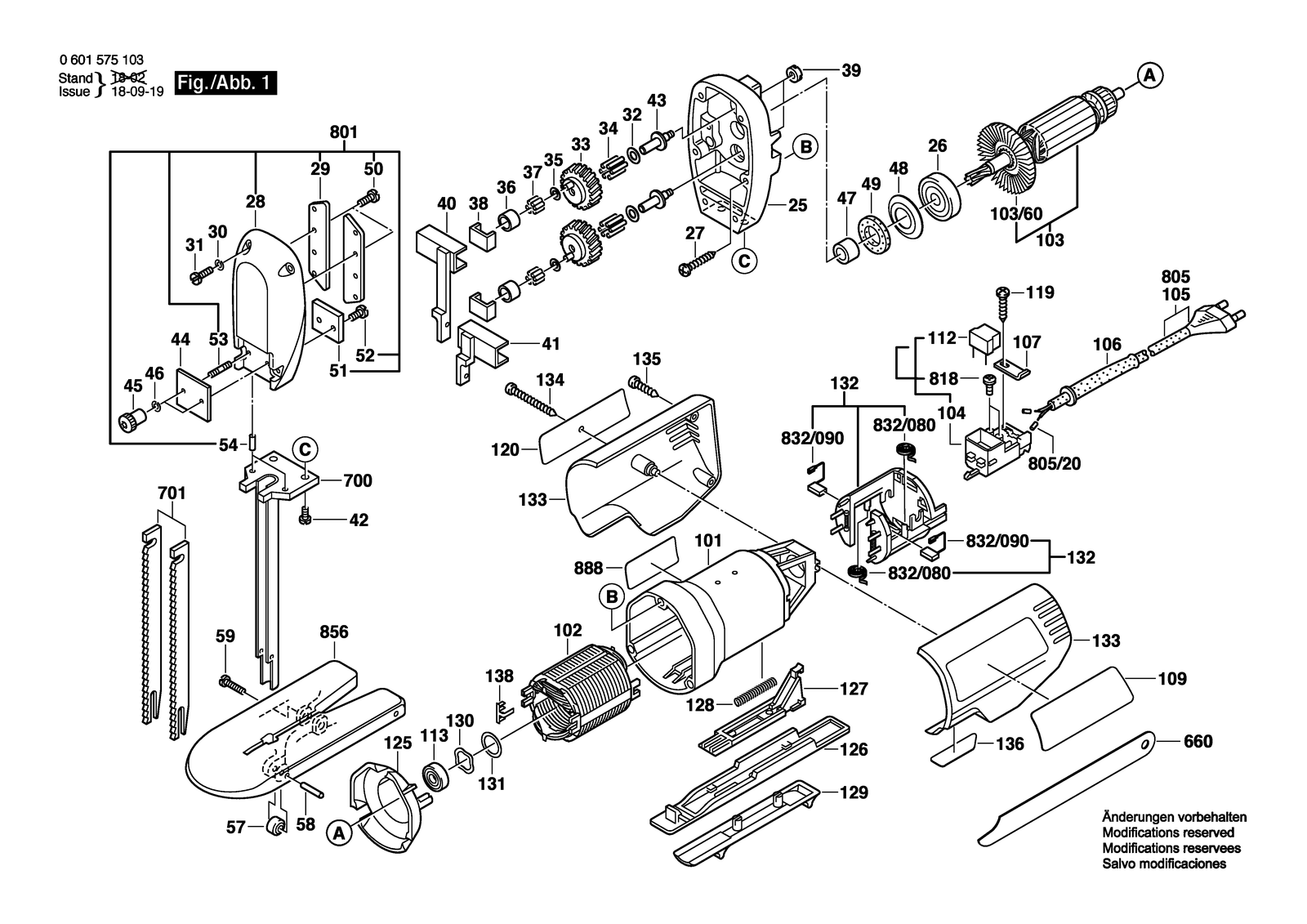

Bosch GSG 300 parts diagram, sheet 1
No.Part numberPart name
1012605108060Motor Housing Blue
1022604220501Field 100-115V
1022604220502Field 220-230V
1031604010B6PArmature
1031604010B6RArmature
1032604010824Armature 100V
103/602606610064Fan
1042607200286Switch
1042607200311Switch
1051604460182Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F
1051604460430Power supply cord CH 2,65M 2 X 1,0MM H05VV-F
105160446077EPower supply cord
1052604460138Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2
1052604460139Power supply cord AUS 2,6M 2 X 0,75MM Pvc
1052604460142Power supply cord I 2,65M 2 X 1,0MM H05VV-F
1052604460206Power supply cord GB 110V 2,65M 2 X 1,0MM H05VV-F
1053604460183Power supply cord
1062600703011Grommet Ø8,3-Ø9,4X95 MM
1062600703012Grommet Ø6,5-Ø6,9X95 MM
1062600703013Grommet Ø7,6-Ø8,2X95 MM
1071601302017Fastening Clamp
1091619P06410Manufacturer's nameplate
1092610968271Sticker
1093601110350Sticker
1122607329126Suppression Filter
1132600905032Ball Bearing 7X19X6
1192910211019Tapping Screw DIN 7971-ST3,9X16-F
1201619P06411Manufacturer's nameplate
1203601110351Sticker Shadow Side
1203601110403Sticker Shadow Side
1252601328002Cover Disc
1262608001005Switch Rocker Blue
1272608001008Switch Slide
1282604611033Compression Spring
1292608001010Switch Handle Black
1302600150003Shim
1312600101617Shim 0,3 MM
1323604336010Brush Holder
1332605104339Housing Cover Blue
1341603490A1ETapping Screw
1342910211283Tapping Screw DIN 7971-B3,9X45
1352910211007Tapping Screw DIN 7971-BZ2,9X16
1363601110206Sticker
1382601329037Contact Spring
252605806082Gear Housing
262600905095Ball Bearing 9X24X7
272914201508Torx Oval-Head Screw
282605500056Gear Cover
292601038001Guide Rail
302916690003Spring Lock Washer DIN 128-A4-FST
312910011128Socket head cap screw DIN 84-AM4X18-5.8
322600100611Shim 0,10 MM
322600100613Shim 0,50 MM
331617S01Z60Eccentric Cog Wheel
343600910000Needle-Roller Assembly
352600100586Shim 0,20 MM
352600100587Shim 0,30 MM
352600100588Shim 0,5 MM
362600300005Roller
372603201037Needle Roller 1,5X5,8 MM
382601320018Retaining Bracket
392603341007Slotted Round Nut
402602305016Lifting Rod
412602305014Lifting Rod
422910021118Socket head cap screw DIN 84-AM4X8-8.8
432603520010Bearing bolt
442601034010Pressure Plate
453603345016Round Nut
462916690002Spring Lock Washer DIN128-A5-FST
472600300047Seal Bushing
482600500017Cupped Washer
492600108026Felt Washer
502910011082Socket head cap screw DIN 84-AM3,5X6-5.8
513602307009Support Plate
522910011084Socket head cap screw DIN 84-AM3,5X8-5.8
532603502015Stud
542917500093Straight Pin 4H8X8 DIN 7
572600300011Roller
581903201521Needle Roller
592910021132Socket head cap screw DIN 84-AM4X25-8.8
6602601030010Scraper
7002608135020Guide 130 Mm, T42A
7002608135021Guide 220 Mm, T42B
7002608135022Guide 300 Mm, T42C
7002608135023Guide 70 Mm, T42D
7012607018010Saw Blade Set 130 Mm, T43A
7012607018011Saw Blade Set 220 Mm, T43B
7012607018012Saw Blade Set 300 Mm, T43C
7012607018013Saw Blade Set 70 Mm, T 43D
8012605500905Gear Cover
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
8183607030229Socket head cap screw M 3,5X7 MM
832/0801604652013Spiral Spring
832/090160701417JCarbon-Brush Set
8562608000908Base Plate
888160111A3H3Nameplate
