Bosch GSE 300 E

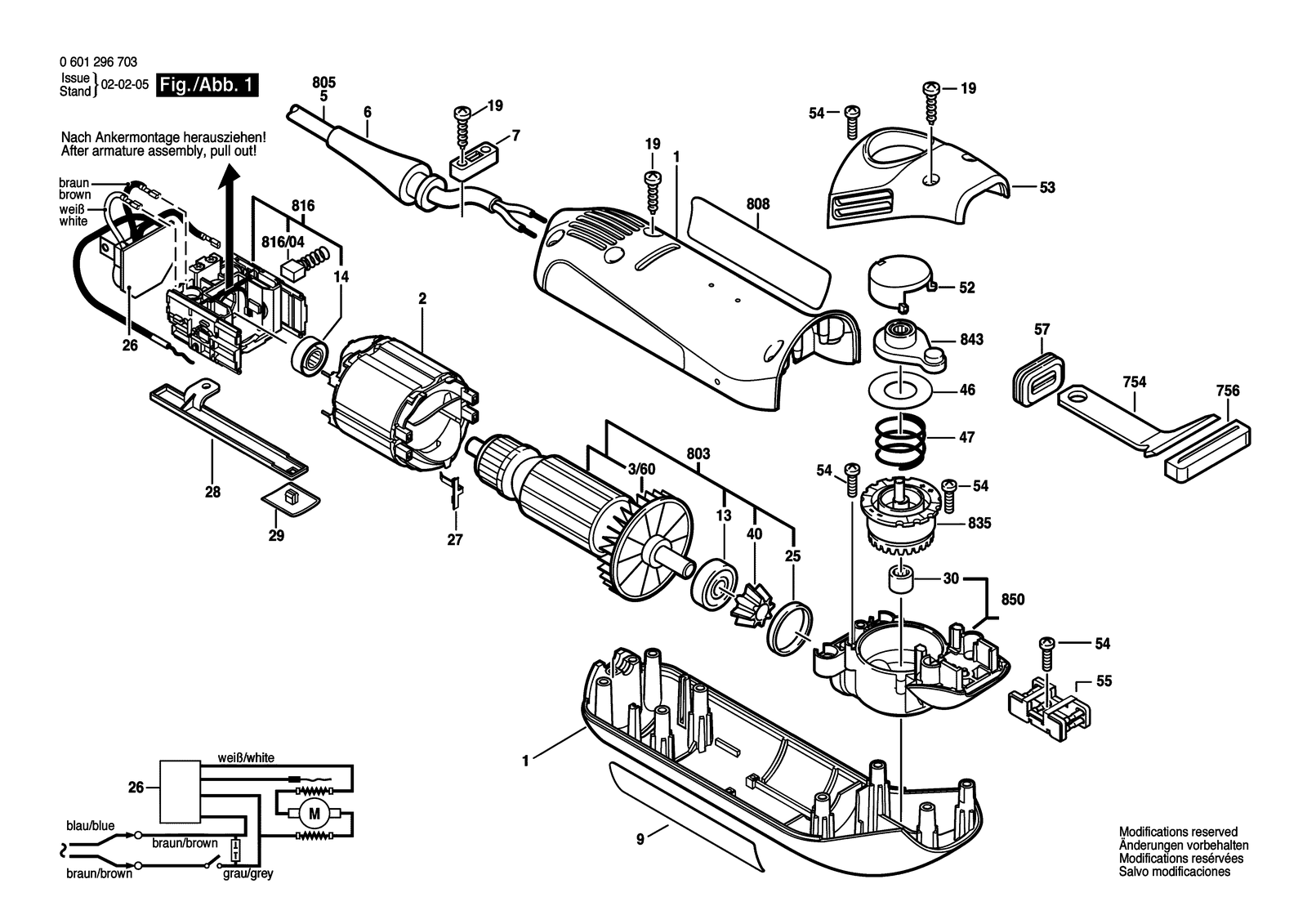

Bosch GSE 300 E electric scraper: exploded parts diagram, 1 sheet, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSE 300 E: 82 positions on 1 sheet
Bosch GSE 300 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104620 | Housing Section Blue |
| 1 | 2605104620 | Housing Section Blue |
| 14 | 2605805008 | Flanged Bearing |
| 14 | 2605805008 | Flanged Bearing |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220598 | Field 110-115V |
| 2 | 2604220610 | Field 110-115V |
| 2 | 2604220611 | Field 220-240V |
| 2 | 2604220610 | Field 110-115V |
| 25 | 2600206018 | Rubber Ring |
| 25 | 2600206018 | Rubber Ring |
| 26 | 2607233039 | Rpm Actuator 100V |
| 26 | 2607233040 | Rpm Actuator 115V |
| 26 | 2607233041 | Rpm Actuator 220-240V |
| 26 | 2607233040 | Rpm Actuator 115V |
| 27 | 2601329037 | Contact Spring |
| 27 | 2601329037 | Contact Spring |
| 28 | 2602319018 | Switch Slide |
| 28 | 2602319018 | Switch Slide |
| 29 | 2602026085 | Switch-Pawl |
| 29 | 2602026085 | Switch-Pawl |
| 3/60 | 2606610090 | Fan |
| 3/60 | 2606610090 | Fan |
| 30 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 30 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 46 | 2600190080 | Pressure Disk |
| 46 | 2600190080 | Pressure Disk |
| 47 | 2604616008 | Compression Spring |
| 47 | 2604616008 | Compression Spring |
| 5 | 1604460172 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 5 | 1604460185 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460201 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460400 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460172 | Power supply cord |
| 5 | 2604460228 | Power supply cord SAM 4,15M 2 X 082MM SJ 18/2 |
| 5 | 3604460045 | Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2 |
| 52 | 2600522014 | Push-Button Red |
| 52 | 2600522014 | Push-Button Red |
| 53 | 2605500144 | Bearing cover |
| 53 | 2605500144 | Bearing cover |
| 54 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 54 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 55 | 2605801029 | Guide Bearing |
| 55 | 2605801029 | Guide Bearing |
| 57 | 2600712007 | Gear Housing |
| 57 | 2600712007 | Gear Housing |
| 6 | 1600703030 | Grommet Ø6,4-Ø7,2X67 MM |
| 6 | 1600703031 | Grommet Ø7,3-Ø8,6X67 MM |
| 6 | 1600703032 | Grommet Ø8,7-Ø9,5X67 MM |
| 6 | 1600703031 | Grommet Ø7,3-Ø8,6X67 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 754 | 2608691091 | Scraping Knife |
| 756 | 2601329060 | Knife Guard 60X23 MM |
| 803 | 2604010969 | Armature 100V |
| 803 | 2604010970 | Armature 110-120V |
| 803 | 2604010971 | Armature 220-240V |
| 803 | 2604010970 | Armature 110-120V |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 2601117298 | Marking Plate |
| 808 | 2601117299 | Marking Plate |
| 808 | 2601117300 | Marking Plate |
| 808 | 2601117301 | Marking Plate |
| 808 | 2601117302 | Marking Plate |
| 808 | 2601117303 | Nameplate |
| 808 | 2601117304 | Marking Plate |
| 808 | 2601117305 | Marking Plate |
| 808 | 2601117306 | Marking Plate |
| 816 | 2604337910 | Brush Plate |
| 816 | 2604337910 | Brush Plate |
| 816/04 | 2604321921 | Carbon-Brush Set |
| 816/04 | 2604321921 | Carbon-Brush Set |
| 835 | 2605801903 | Adjusting Sleeve |
| 835 | 2605801903 | Adjusting Sleeve |
| 843 | 2605801904 | Connecting Rod |
| 843 | 2605801904 | Connecting Rod |
| 850 | 2605190912 | Gear Housing |
| 850 | 2605190912 | Gear Housing |
| 9 | 2601119815 | Manufacturer's nameplate |
| 9 | 2601119815 | Manufacturer's nameplate |
