Bosch GSC 9,6 V

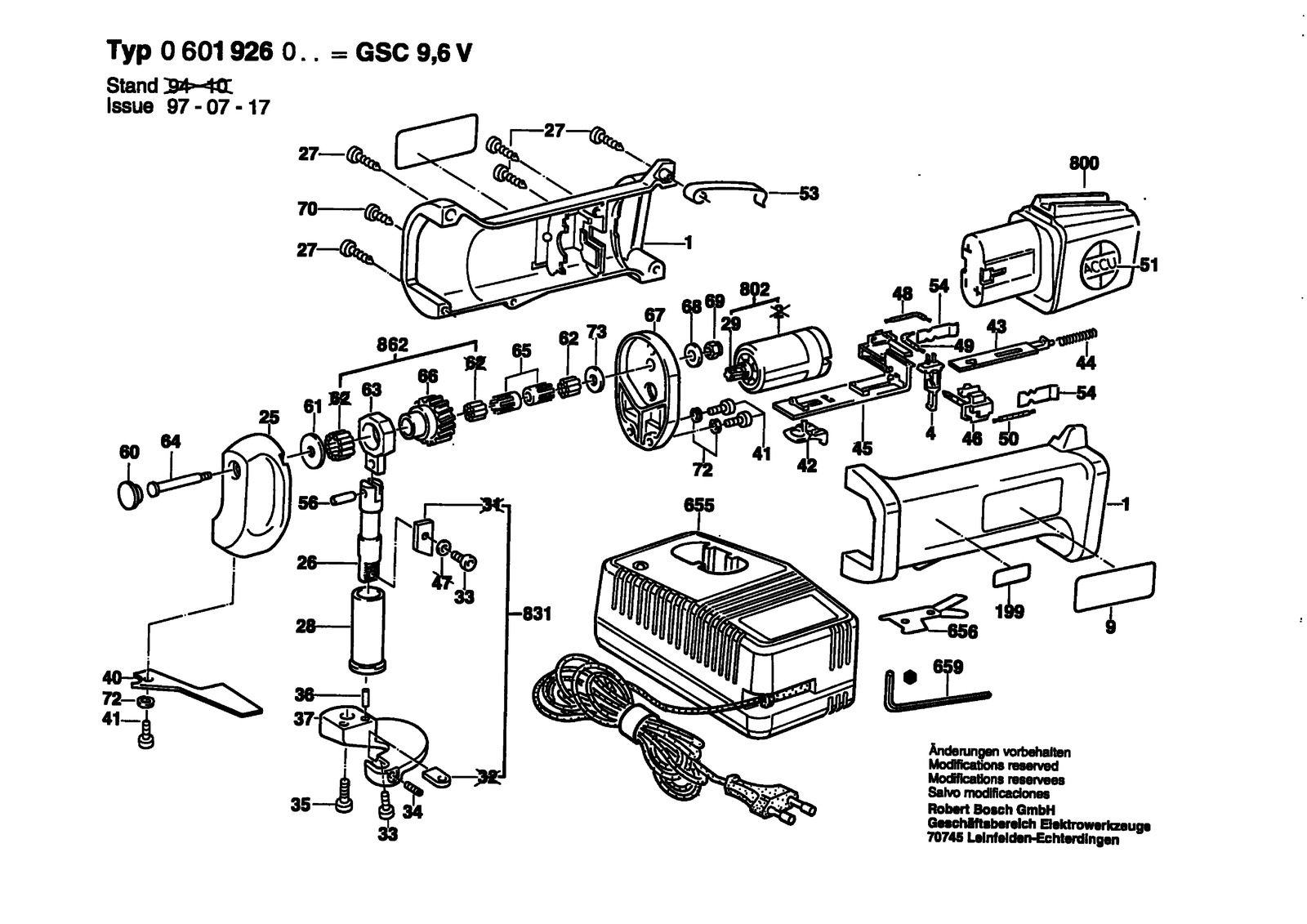

Bosch GSC 9,6 V portable metal shears: exploded parts diagram, 1 sheet, 53 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSC 9,6 V: 53 positions on 1 sheet
Bosch GSC 9,6 V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104300 | Housing Section Blue |
| 199 | 1601110265 | Reference Plate |
| 25 | 2605806400 | Gear Housing |
| 26 | 2603070005 | Lifting Rod |
| 27 | 2603490022 | Screw 4X16 |
| 28 | 2600422000 | Guide Sleeve |
| 29 | 2606316117 | Pinion Z=17 |
| 33 | 2910405118 | Hex Socket Head Cap Screw DIN 912-M4X8-12.8 |
| 34 | 2912031084 | Set screw DIN 551-M3,X12-5.8 |
| 35 | 2910011158 | Socket head cap screw AM 5X16 DIN 84-5.8 |
| 37 | 2608042000 | Blade Holder |
| 4 | 2607200196 | On-Off Switch |
| 40 | 2601335004 | Chip Deflector |
| 41 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 42 | 1602026057 | Switch Handle Black |
| 43 | 2601099028 | Adjusting Slide Blue |
| 44 | 1604611026 | Compression Spring |
| 45 | 2608018003 | Contact retainer |
| 46 | 2608018001 | Contact retainer |
| 48 | 2604412019 | Connecting Cable |
| 49 | 2604412021 | Connecting Cable White L = 52 MM |
| 50 | 2604412020 | Cable |
| 51 | 2601110461 | Sticker Rechargable Batery |
| 53 | 2601251003 | Holding Spring Ø8,7 MM |
| 54 | 2601324012 | Contact Spring |
| 56 | 2603100000 | Straight Pin |
| 60 | 2600522012 | Plug |
| 61 | 2600100519 | Shim |
| 63 | 2602001000 | Connecting Rod |
| 64 | 2603151502 | Bearing bolt |
| 65 | 2600913034 | Needle-Roller Cage |
| 655 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 655 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 655 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 655 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 655 | 2607224443 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 655 | 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 Min. |
| 655 | 2607224703 | Fast Charger GB 230/7,2-14,4V, 30 Min. |
| 656 | 2607970009 | Feeler Gauge |
| 659 | 1907950004 | Offset Screwdriver DIN 911, SW3 |
| 66 | 2606316118 | Eccentric Cog Wheel |
| 67 | 2605700227 | Intermediate Flange |
| 68 | 2916010882 | Plain Washer DIN 9021-A4,3-ST |
| 69 | 2915061002 | Hex Nut DIN 985-M4-8 |
| 70 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 72 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 73 | 2600100628 | Shim 0,5 MM |
| 800 | 2607335176 | Slide-In Accu Package 9,6V,1,7AH,NICD |
| 800 | 2607335203 | Slide-In Accu Package 9,6V,1,4AH, Nicd |
| 802 | 2607022834 | DC motor |
| 831 | 3607010028 | Set of knives |
| 862 | 3607010031 | Parts Set 44 Piece |
| 9 | 2601110801 | Nameplate |
