Bosch GSC 18V-16 E portable metal shears: exploded parts diagram, 2 sheets, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSC 18V-16 E: 48 positions on 2 sheets

Bosch GSC 18V-16 E parts list (2 sheets)

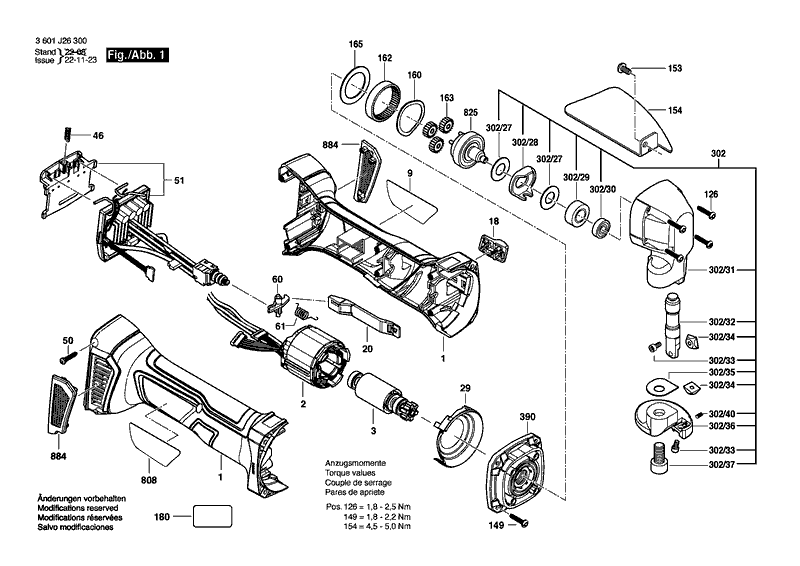

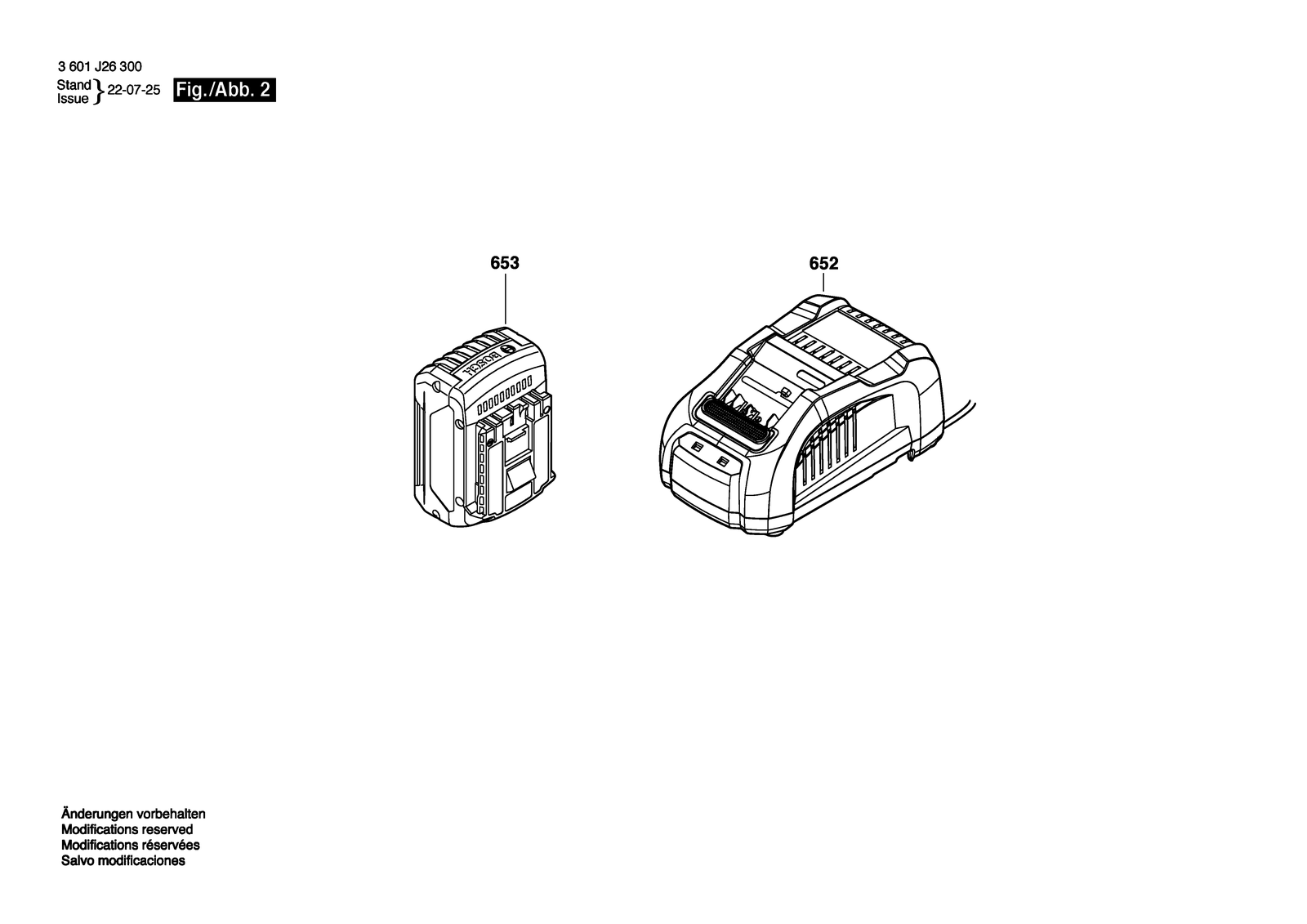

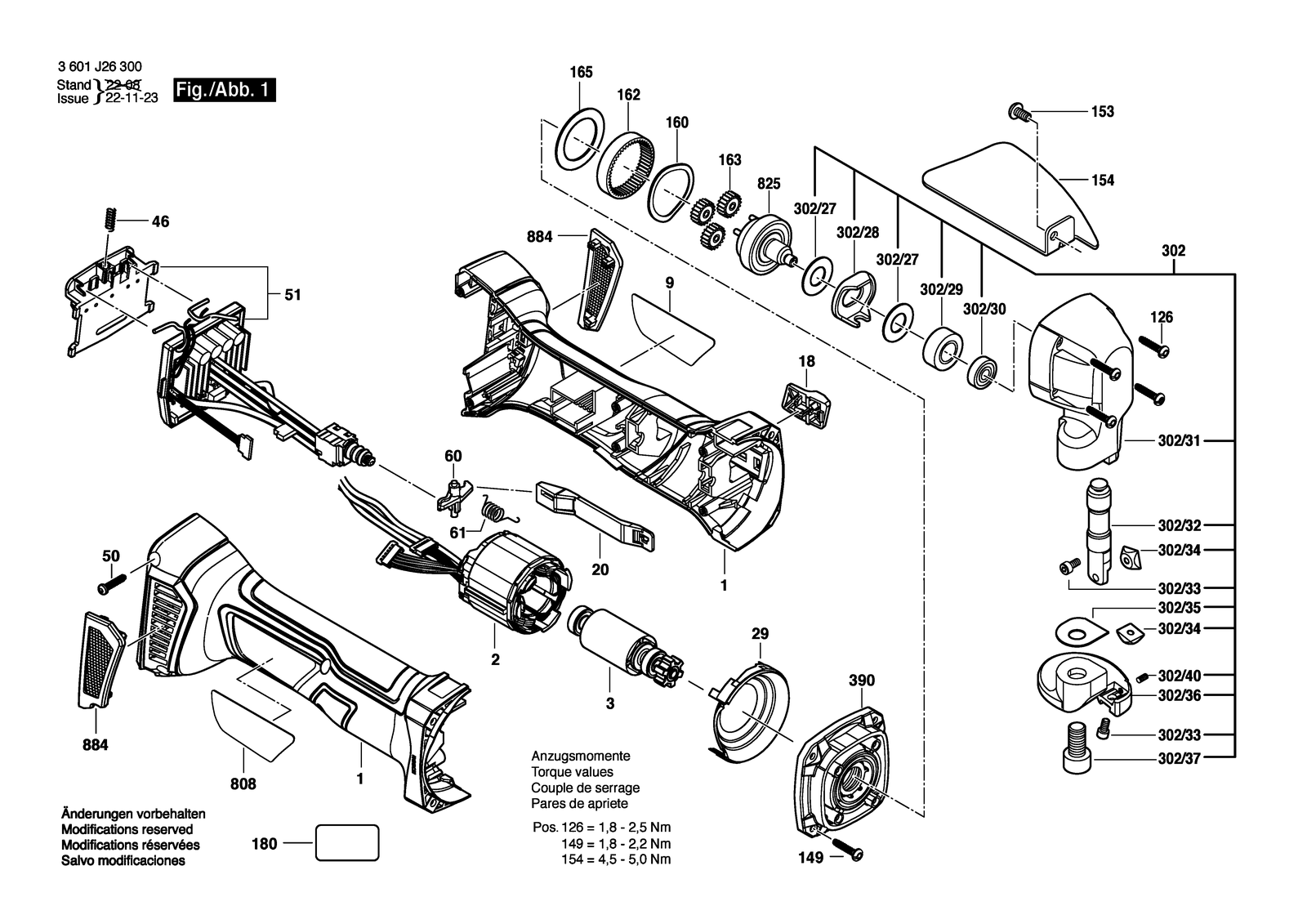

Bosch GSC 18V-16 E parts diagram, sheet 1Bosch GSC 18V-16 E parts diagram, sheet 2
No.Part numberPart name
11619P15044Motor Housing
1262603410051Thread-forming tap. Screw
1492603490023Torx Oval-Head Screw 4X20
1533607233026Chip Deflector
1543603391007Thread-forming tap. Screw DIN 7500-UM5X10-ST
1603600109019Spring Washer
1623600112006Ring Gear
1633606316097Planet Gear
1653600100098Shim ring
1661600A035Z4Seal
181619P15338Switch Handle
180160111C4TDReference Plate
21600A01A6NStator
201619P15050Adjusting Slide
291600591065Air-Deflector Ring
31600A01A6SRotor
3023607000114Gear Unit
302/273600102049Shim ring
302/283602311052U-Sheet
302/293600905158Track-Supporting Roller
302/303600905161Groove ball bearing
302/313605106107Gear Housing
302/323602317042Tappet
302/332910401118Hex Socket Head Cap Screw DIN 912-M4X8-12.9
302/343608635009Knife
302/353602311047Plain Washer 0,2 MM
302/353602311048Plain Washer 0,4MM
302/353602311049Plain Washer 0,6MM
302/363606455042Cutting Table
302/372910401289Hex Socket Head Cap Screw DIN 912-M10X20-12.9
302/402912040118Set screw DIN 913-M4X8
3901600A0270PAssembly kit
461609280477Compression Spring
502609110201Torx Flat-Head Screw 3X16
511600A01NC3Electronics Module
601619P15795Reverse-Transfer Lever
611619P15806Torsion Spring
6522607225921Charger EU GAL 1880 CV 230/14,4-18V
6522607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6531607A350ASBattery Pack Kor GBA 18V 8.0AH Procore Scm
6531617S019K0Battery Pack
6532607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
6532607337085Battery Pack Bbs Mr-Xl, 18V, 5AH Korea
808160111A8T2Nameplate
808160111A8T3Nameplate
8253607031860Eccentric Shaft
8841607000CA9Filter Unit
9160111C4E4Manufacturer's nameplate
