Bosch GSC 18V-16

Bosch GSC 18V-16 portable metal shears: exploded parts diagram, 1 sheet, 44 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSC 18V-16: 44 positions on 1 sheet

Bosch GSC 18V-16 parts list (1 sheet)

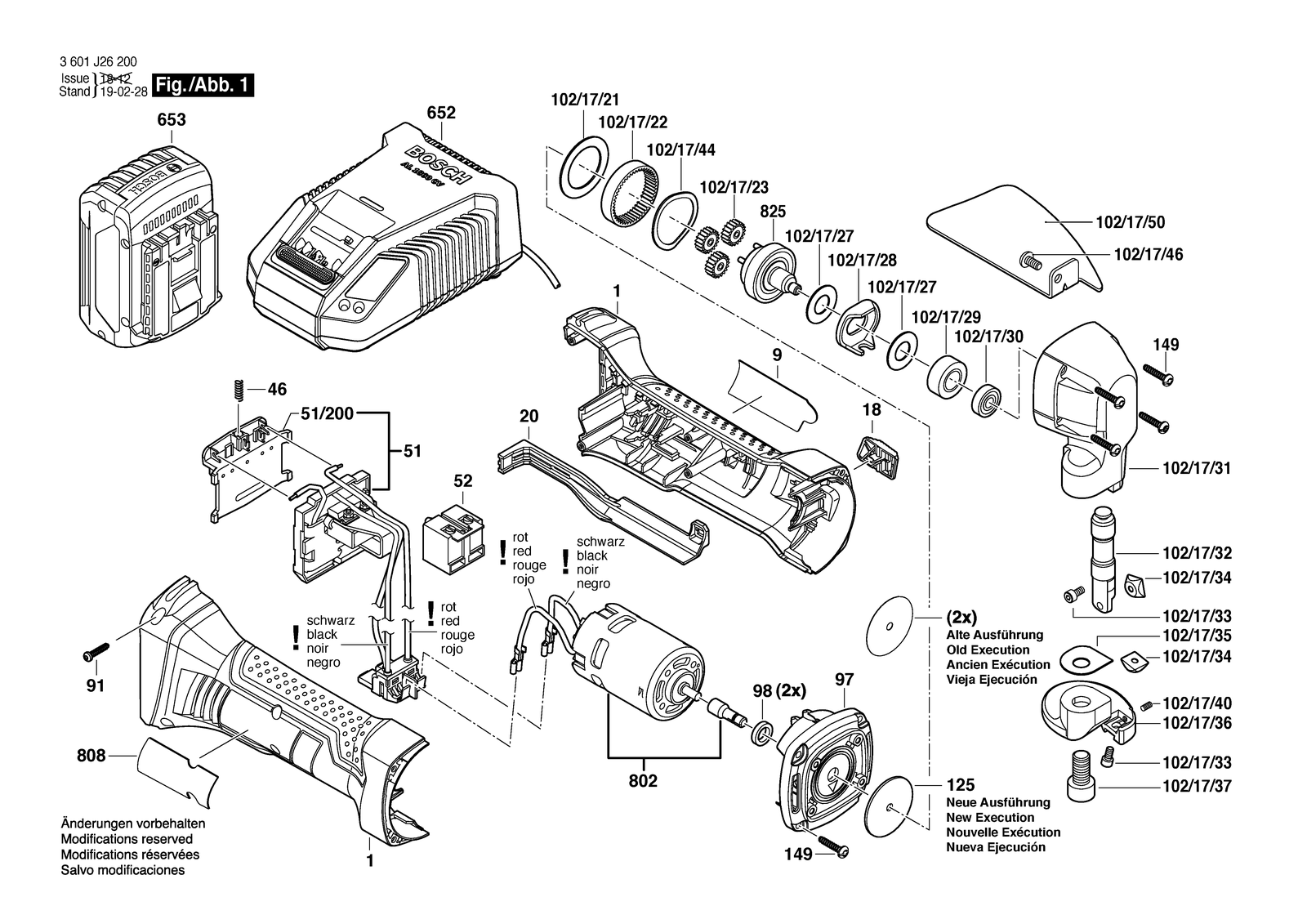

Bosch GSC 18V-16 parts diagram, sheet 1
No.Part numberPart name
11605108282Housing Section Blue
102/17/211600102029Washer Thick 1,0 MM
102/17/221606337004Ring Gear
102/17/231606337003Planet Gear
102/17/273600102049Shim ring
102/17/283602311052U-Sheet
102/17/293600905158Track-Supporting Roller
102/17/301600900038Ball Bearing 626 DIN 625
102/17/311605190266Gear Housing
102/17/323602317042Tappet
102/17/332910401118Hex Socket Head Cap Screw DIN 912-M4X8-12.9
102/17/343608635009Knife
102/17/353602311047Plain Washer 0,2 MM
102/17/363606455042Cutting Table
102/17/372910401289Hex Socket Head Cap Screw DIN 912-M10X20-12.9
102/17/403603435056Set screw
102/17/441600150013Spring Washer
102/17/463603391007Thread-forming tap. Screw DIN 7500-UM5X10-ST
102/17/501601334013Chip Deflector
1253600109026Sealing disk
1492603490024Torx Oval-Head Screw 4X25
181602025071Switch Button
201602319023Adjusting Slide
461609280477Compression Spring
511607233340Electronics Module
51/2001609280478Contact retainer
522607202071On-Off Switch
6522607225921Charger EU GAL 1880 CV 230/14,4-18V
6522607225931Charger J GAL 1880 CV 100/14,4-18V
6522607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6522607225937Charger Cn GAL 1880 CV 220V/14,4-18V
6532607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
6532607337081Battery Pack Bbs Mr-Xl, 18V, 5AH
6532607337085Battery Pack Bbs Mr-Xl, 18V, 5AH Korea
8023607031879DC motor
8083601119923Nameplate
8083601119925Nameplate
8083601119929Nameplate
8083601119930Nameplate
8253607031860Eccentric Shaft
93601110616Manufacturer's nameplate GSC 18V-16
911603435071Thread-forming tap. Screw
973605700213Intermediate Flange
983600200041Felt Washer
